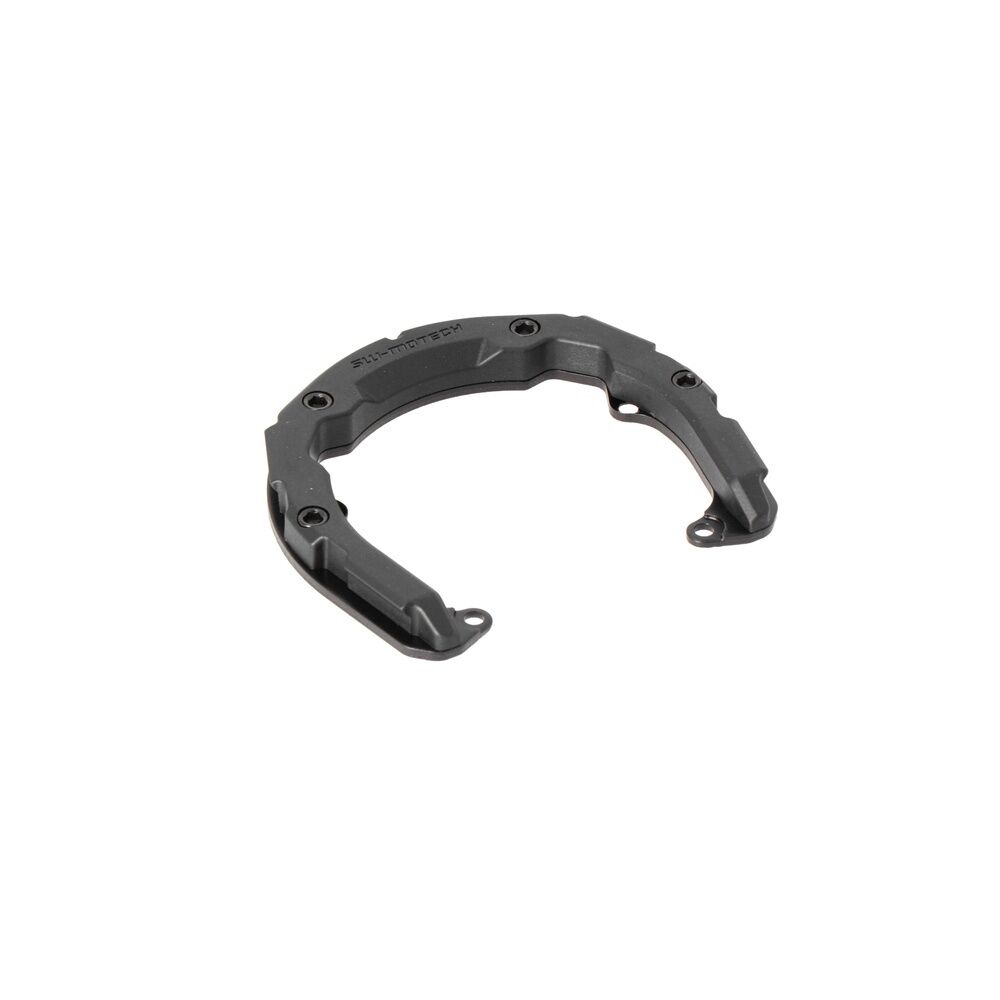

SW-MOTECH PRO Tank Ring - Honda - 5-Screw Tank

Enjoy quick, secure and convenient mounting of a compatible tank bag with the SW-MOTECH PRO Tank Ring. Combining SW-MOTECH's proven QUICK-LOCK mechanical system with magnetic guidance technology developed by Fidlock, the PRO system makes attaching and removing your tank bag simple while keeping it raised away from the motorcycle's paintwork.

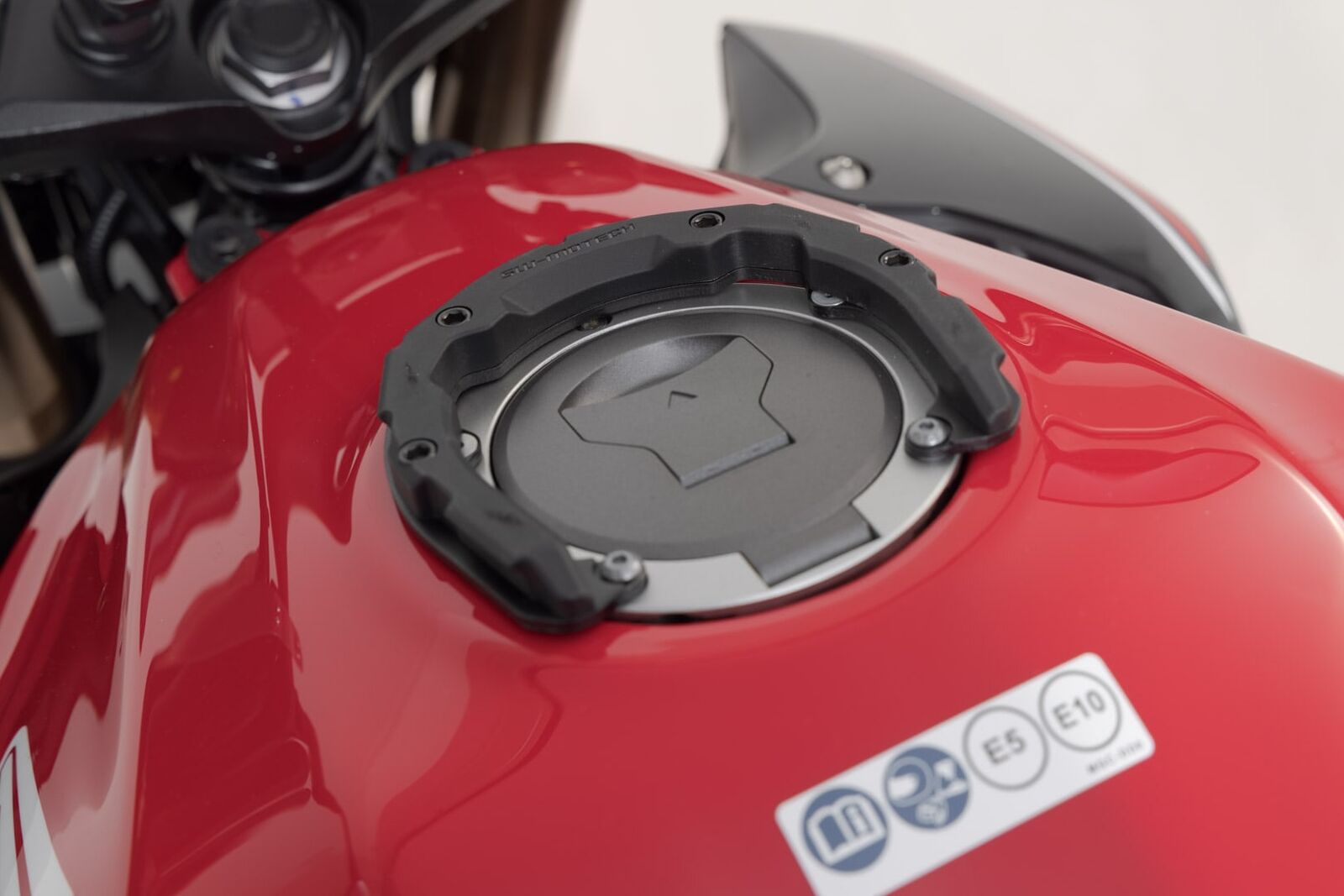

The model-specific tank ring mounts around the fuel filler using the existing mounting points, providing a clean and secure foundation for compatible SW-MOTECH PRO tank bags.

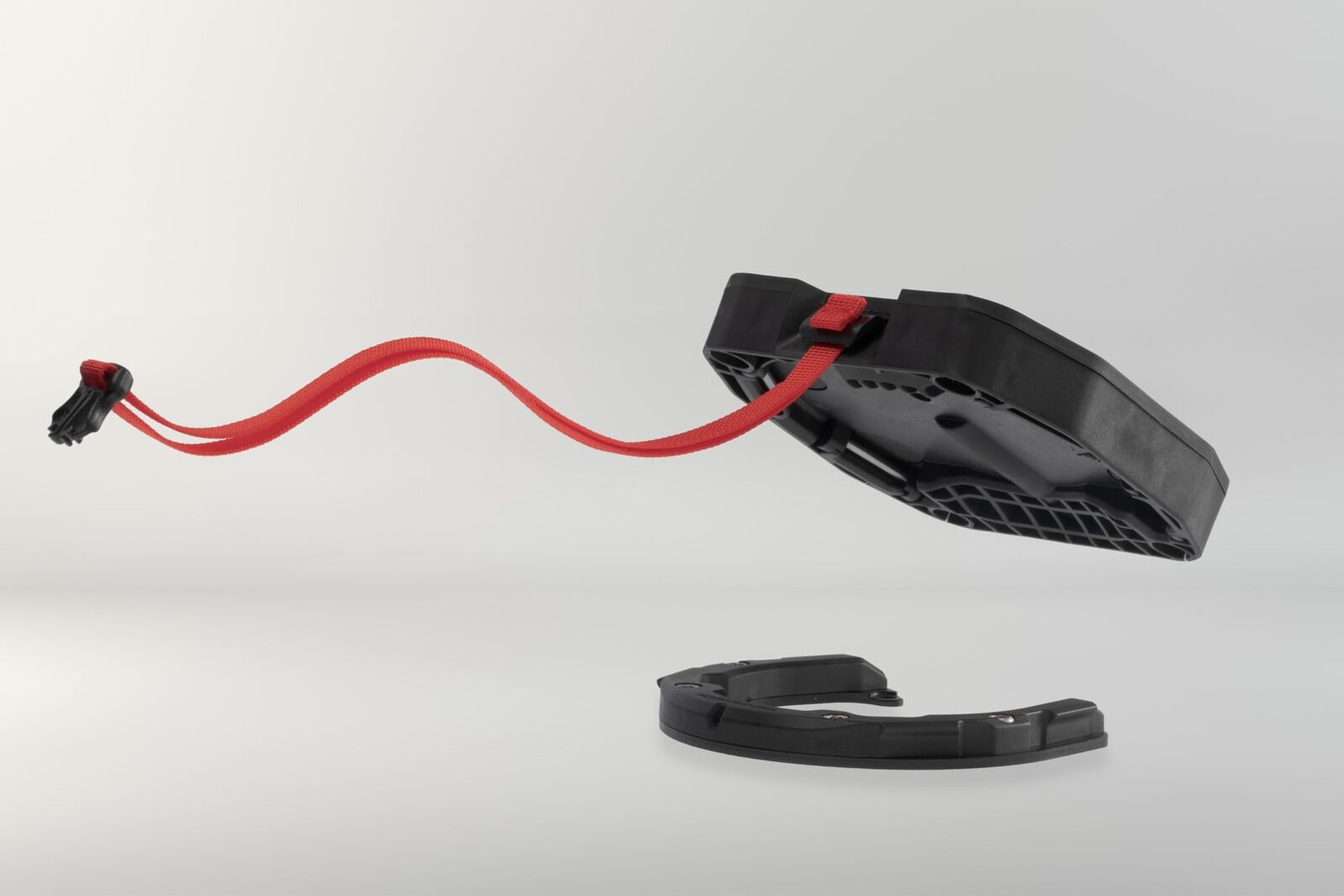

Magnetic Guidance with QUICK-LOCK Security

Integrated magnets guide the tank bag's upper ring into the correct position as it approaches the tank ring. The mechanical QUICK-LOCK system then securely latches the bag into place, combining easy positioning with a strong mechanical connection.

Removing the tank bag is equally straightforward. Simply pull the release strap to disengage the locking mechanism and lift the bag away.

Adjustable PRO Top Ring System

Compatible PRO tank bags feature a sliding top ring with a guide rail, eliminating the need to drill the tank bag during installation. The top ring can be positioned along the rail to achieve the required placement before being securely tightened.

The adjustable design also allows the top ring position to be changed if the tank bag is later transferred to another compatible motorcycle.

Features

• Model-specific adapter ring for an accurate fit.
• Designed for compatible Honda fuel tanks using a 5-screw mounting arrangement.
• Proven SW-MOTECH QUICK-LOCK mechanical locking system.
• Fidlock magnetic guidance assists with positioning the tank bag.
• Secure mechanical connection keeps the tank bag firmly attached.
• Quick removal using the tank bag's pull strap.
• Tank bag remains raised away from the fuel tank to help protect the paintwork.
• Allows the fuel filler cap to be opened normally for convenient refuelling.
• Manufactured from fibreglass-reinforced plastic with aluminium components.
• No drilling of compatible PRO tank bags required.

Specifications

• Material: Fibreglass-Reinforced Plastic / Aluminium
• Colour: Black
• Weight: Approximately 0.1 kg
• Tank Mounting: 5-Screw Configuration

Important Information

SW-MOTECH PRO series tank rings are designed for use with compatible PRO tank bags and cannot be combined with EVO tank bags.

Combining magnetic guidance with SW-MOTECH's secure mechanical QUICK-LOCK system, the PRO Tank Ring provides a clean and convenient way to mount compatible luggage without having the tank bag rest directly on the motorcycle's fuel tank.

Installation Instructions

Availability:

SW-Motech supply is pretty good in Australia, but they have thousands of parts so we can't stock them all on our shelves. If our site shows this item as in stock in our warehouse (see above), great! It will ship immediately from our warehouse. If it shows as Pre-Order, we get weekly shipments from SW-Motech and our site should show if it's in stock in Australia.

• If in stock in Australia we can have it in about a week or less
• If it's not in stock in Australia, ETA could be 4-6 weeks, but please contact us and we can find out a more accurate ETA
