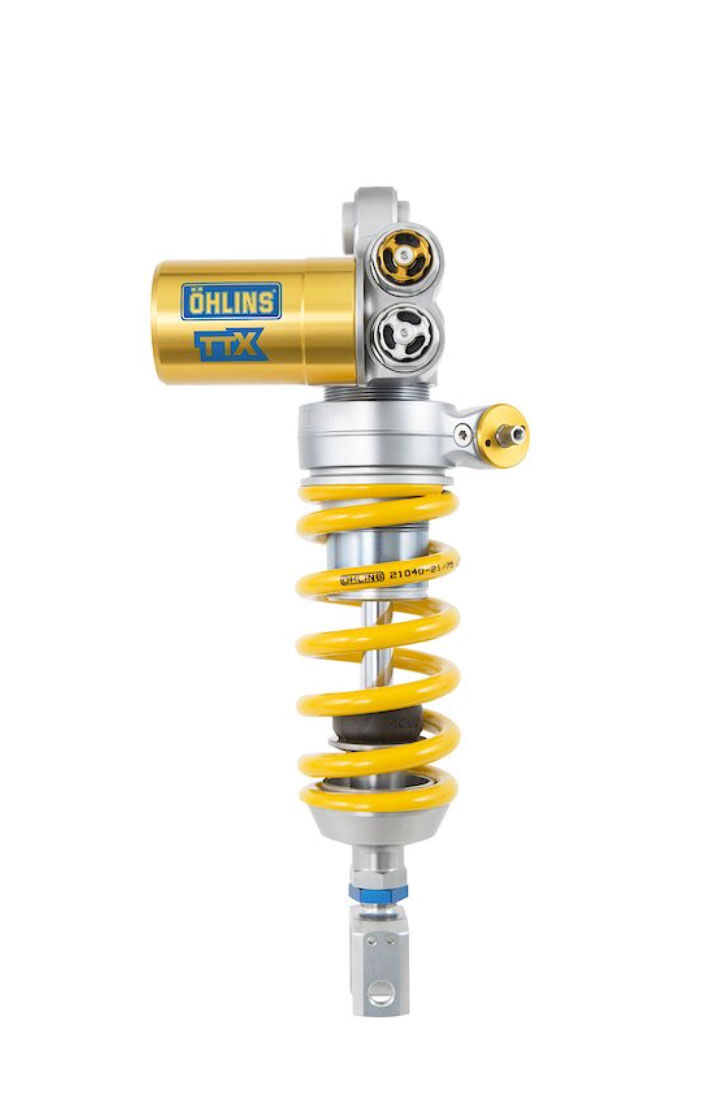

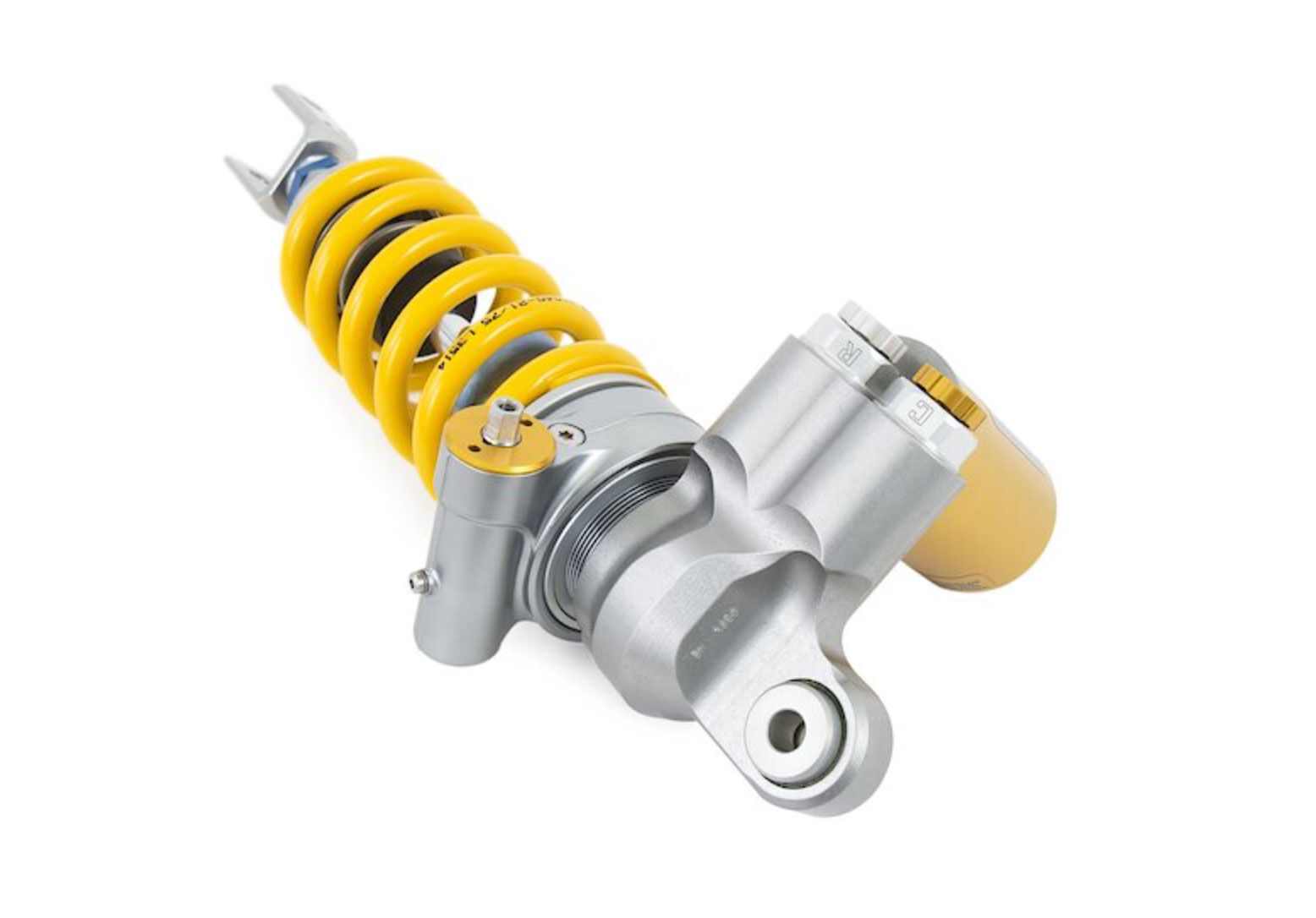

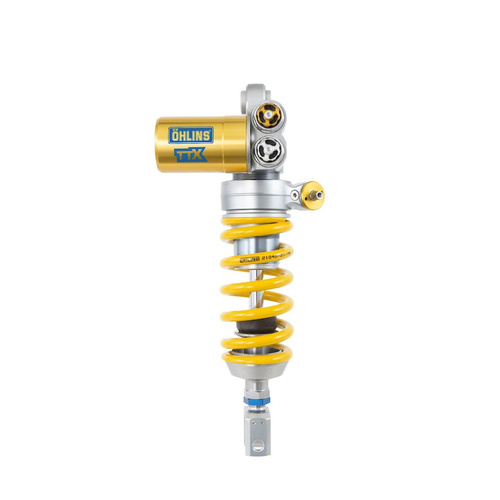

This shock absorber from Ohlins will suit the Yamaha models listed below and has been meticulously designed and engineered specifically for those models, ensuring it enhances both handling and comfort.

We start by selecting the ideal shock typ

Type Code: T36PR1C1LB
Twin tube: T
Piston diameter: 36mm
Öhlins Motorcycle type: P - Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

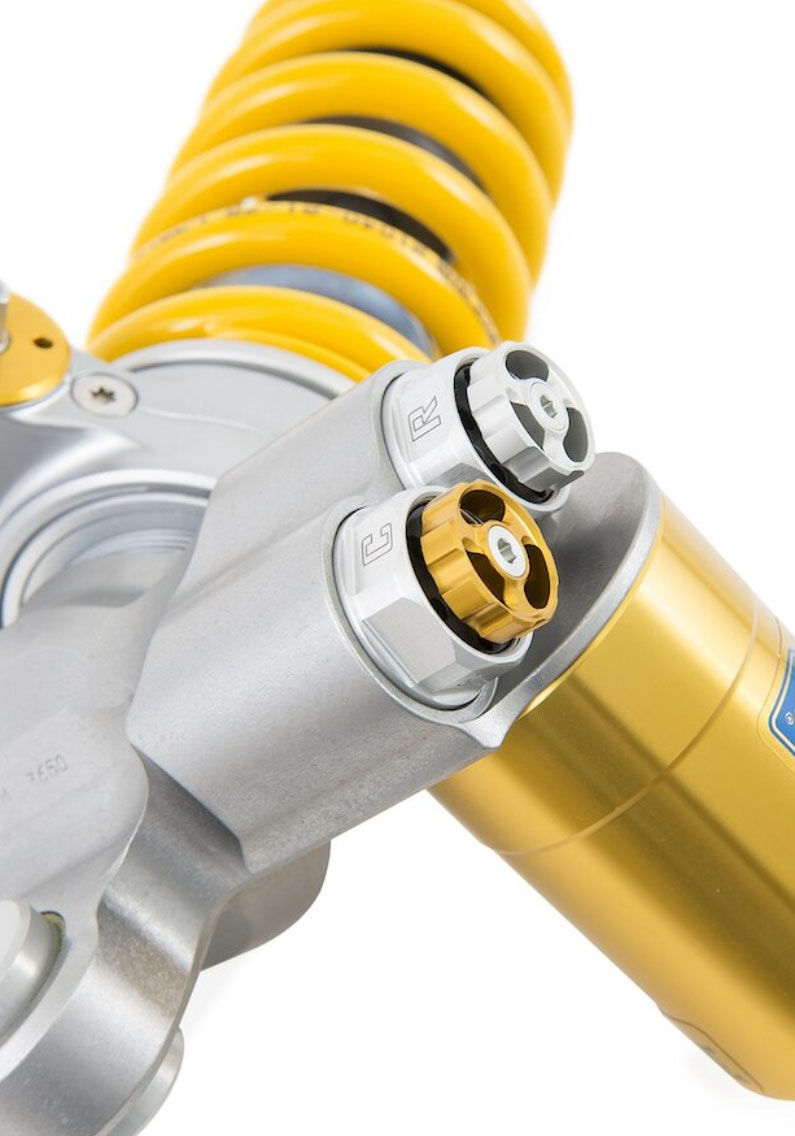

Öhlins Motorcycle TTX GP R1 rebound damping adjuster
Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
Öhlins Motorcycle TTX GP C1 compression damping adjuster
Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
Öhlins Motorcycle L - Adjustable length.
Öhlins Motorcycle B -  Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

Technical data
Position:    rear
Packaging unit:    pieces

Will fit the following models:
Yamaha MT-10 (2016 – 2024)
Yamaha MT-10 SP (2016 – 2024)
Attention, semi-active damping function not available with this damper!
Yamaha YZF-R1 (2015 – 2024)
Yamaha YZF-R1M (2015 – 2024)
Attention, semi-active damping function not available with this damper!

Installation Instructions (PDF)
