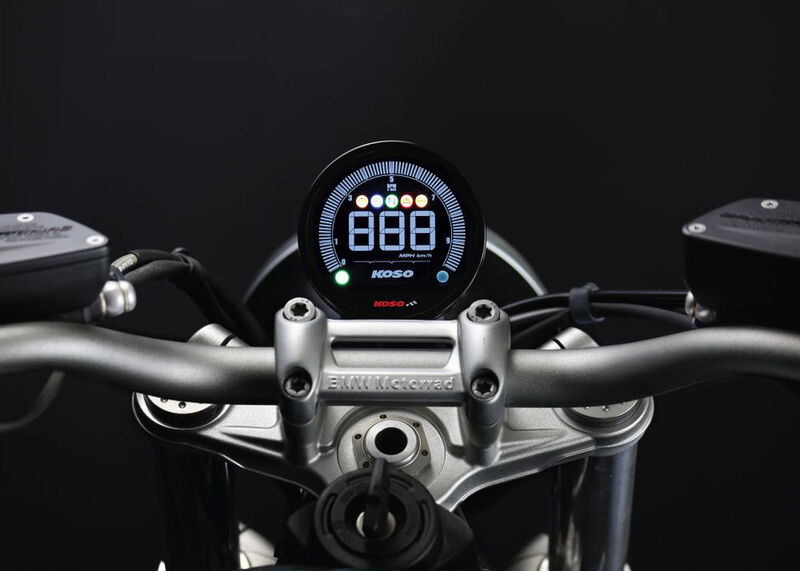

Upgrade your cockpit with the DL-04 Digital Rev Counter, a vehicle-specific, all-in-one display unit tailored for the BMW R nineT series. Finished in sleek black and engineered with precision, the DL-04 offers a seamless plug & play installation using the bike’s existing connections—no splicing or coding required.

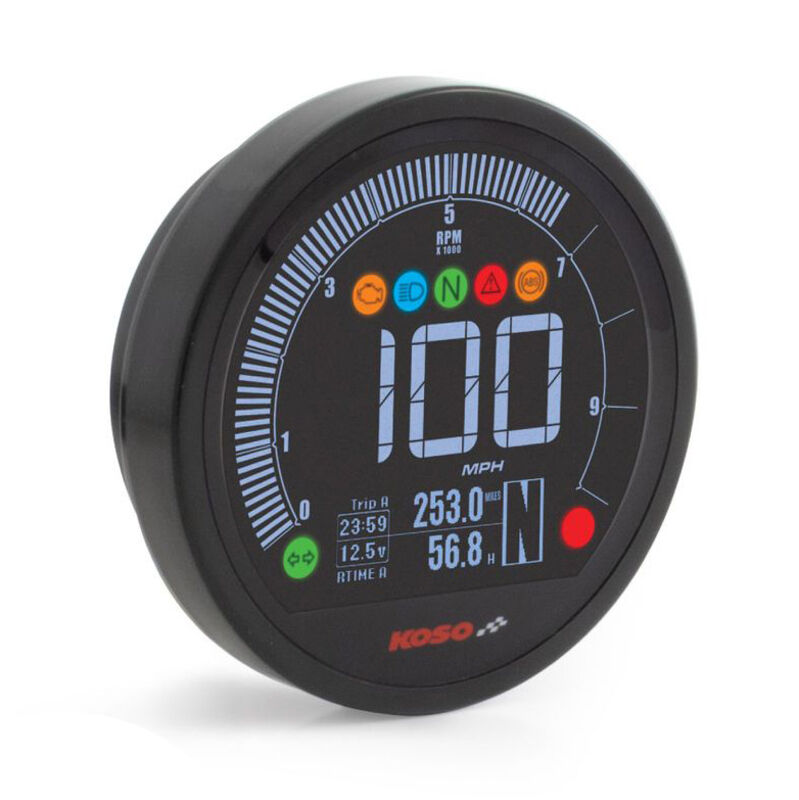

Packed with advanced functionality, this compact meter offers real-time data including speed, revs, gear position, voltage, temperature, service intervals, and more. The hexagonal digital display is easy to read in all lighting conditions, and you can customise brightness, units, and warnings to suit your riding style.

Key Features:

✔ Speedometer & Odometer
• Switchable between km/h and MPH
• Max speed display: up to 360 km/h (225 MPH)
• Total odometer: up to 99,999 km or miles
• Trip meters A, B, and Oil Change indicators with user-set intervals

✔ Rev Counter & Gear Indicator
• Displays up to 15,000 RPM
• RPM warning light customisable from 5,000 to 15,900 RPM
• Gear display: Neutral, 1–6

✔ Temperature Monitoring
• Real-time engine temp from 0–250°C (32–482°F)
• Temp warning alert from 60–250°C

✔ Voltage Meter
• Range: 8.0–18.0V
• Low-voltage alert: adjustable from 8.0V to 12.5V

✔ Operating Hours Tracker
• Displays total and segmented run time
• Includes low oil level indicator

✔ Maximum Value Records
• Captures highest speed, revs, voltage, temperature, and gear used

✔ Additional Functions
• Built-in clock (12/24-hour format)
• Adjustable background brightness (1–5 levels)
• Complete with LED warning lights: indicators, ABS, high beam, neutral, engine, and speed flash

Technical Specifications:
• Voltage: 12V DC
• Operating Temperature: -10°C to +60°C
• Material Standard: JIS D 0203(S2)

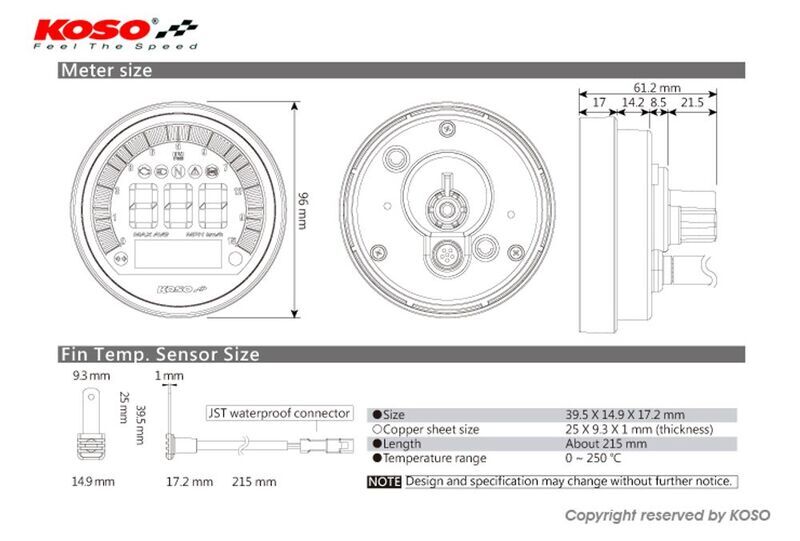

• Size: Ø96 mm
• Weight: Approx. 194.5 g

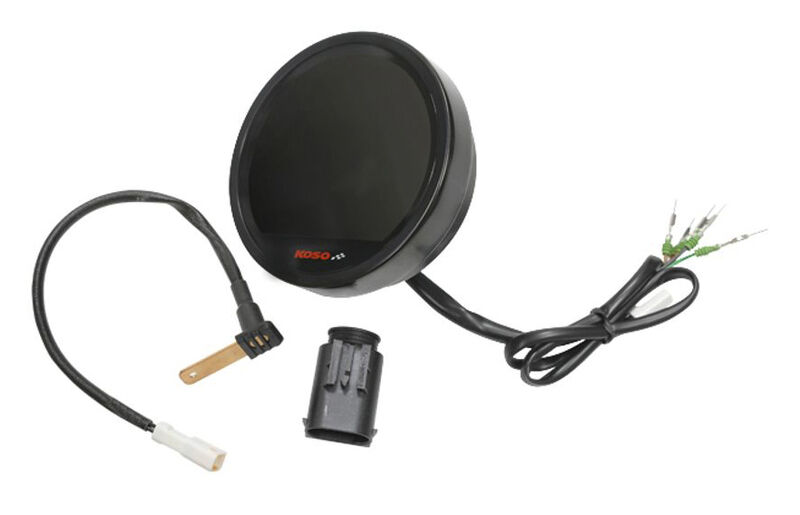

What’s Included:
• 1 x DL-04 Meter
• Mounting instructions
• All required connectors and components

Compatible With:
• BMW R nineT /5, Pure, Racer, Scrambler & Standard (2017–2024 models)
– Includes model codes: 0J01, 0J11, 0J21, 0J31
• Plug & play compatible – see full list above

Why Choose the DL-04?
This premium digital meter brings you all the functionality you need—precision, reliability, and modern features—without altering your bike’s wiring or factory appearance. Perfect for BMW R nineT riders looking to combine classic styling with modern tech.
