An essential piece of equipment for extreme enduro events, there are two ways of fitting the Kriega Front Haul Loop to your bike:

  1. Undo web on the stainless buckles. Wrap the web around the fork leg, directly under the lower triple-clamp. Re-thread the stainless buckles(making sure to feed the web back through the buckle to ‘lock’ it off). The loose end can be placed under the elastic-loop provided. To prevent the Haul Loop moving down the fork leg/s you need to use a cable tie in either 2 ways. The first method is to feed the cable tie through the small web-loop next to the stainless buckle. Connect the cable tie and tighten around the fork leg directly above the lower triple-clamp (this method is illustrated on the ‘Haul Loop’ page)

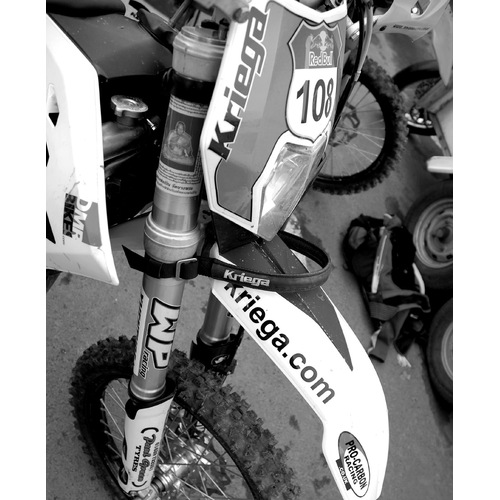

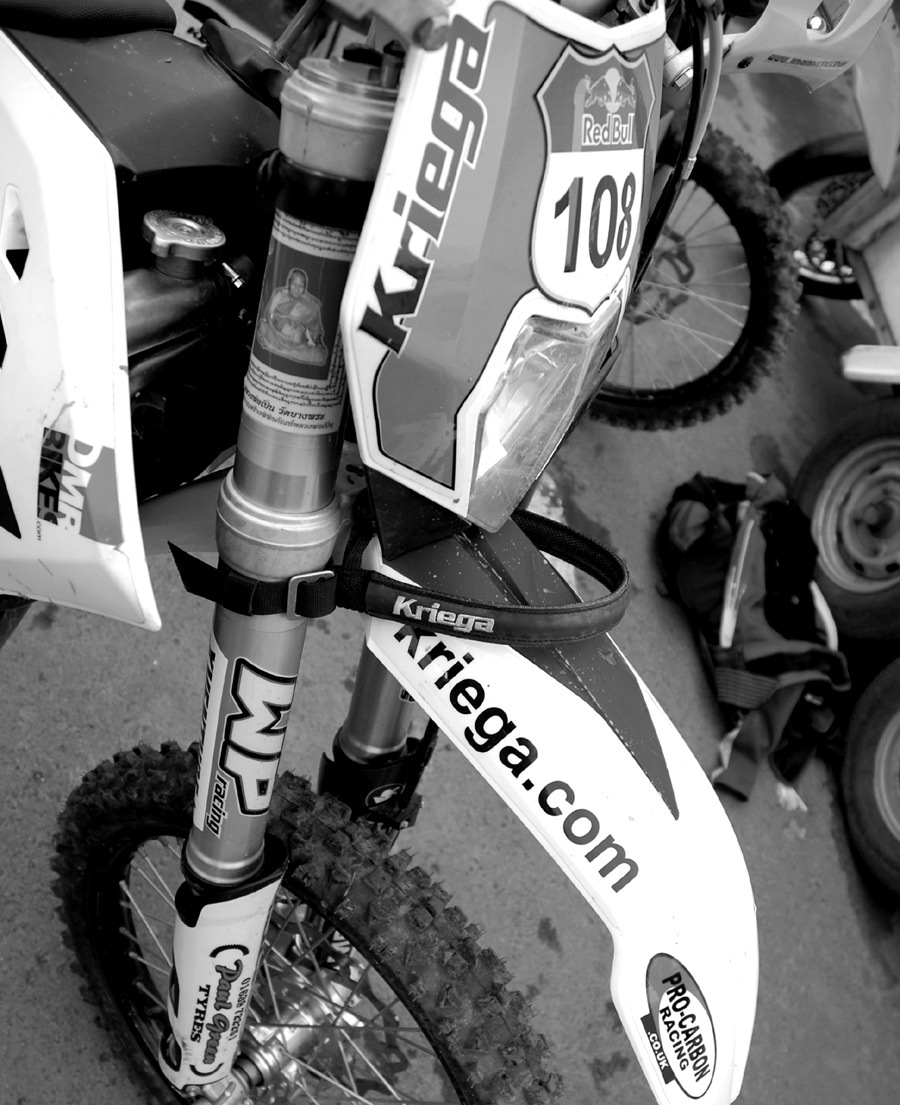

  2. Alternatively, use 2 x cable ties linked together in a figure of eight behind the front light/number plastic (this method is shown on this page). The figure of eight method is a superior one, as you can fine tune the angle of the Haul Loop by decreasing the length/s of the cable ties. The shorter the tie the more elevated the Haul Loop will sit.

Tech Specs:

  • Semi-rigid design
  • Universal fit (front only)
  • Ultra-tough construction
  • HYPALON: abrasion resistant re-enforcement
  • TOUGHTEK – grips wet or dry
  • Stainless steel buckles
  • 10-year guarantee
SKU KWEHL
Barcode # 5060461760481
Brand Kriega
Country Of Manufacture United Kingdom
Product Specifications

Type: Front Haul Loop
