Kriega US Drypack Fit Kit To Suit Aprilia Tuono Factory

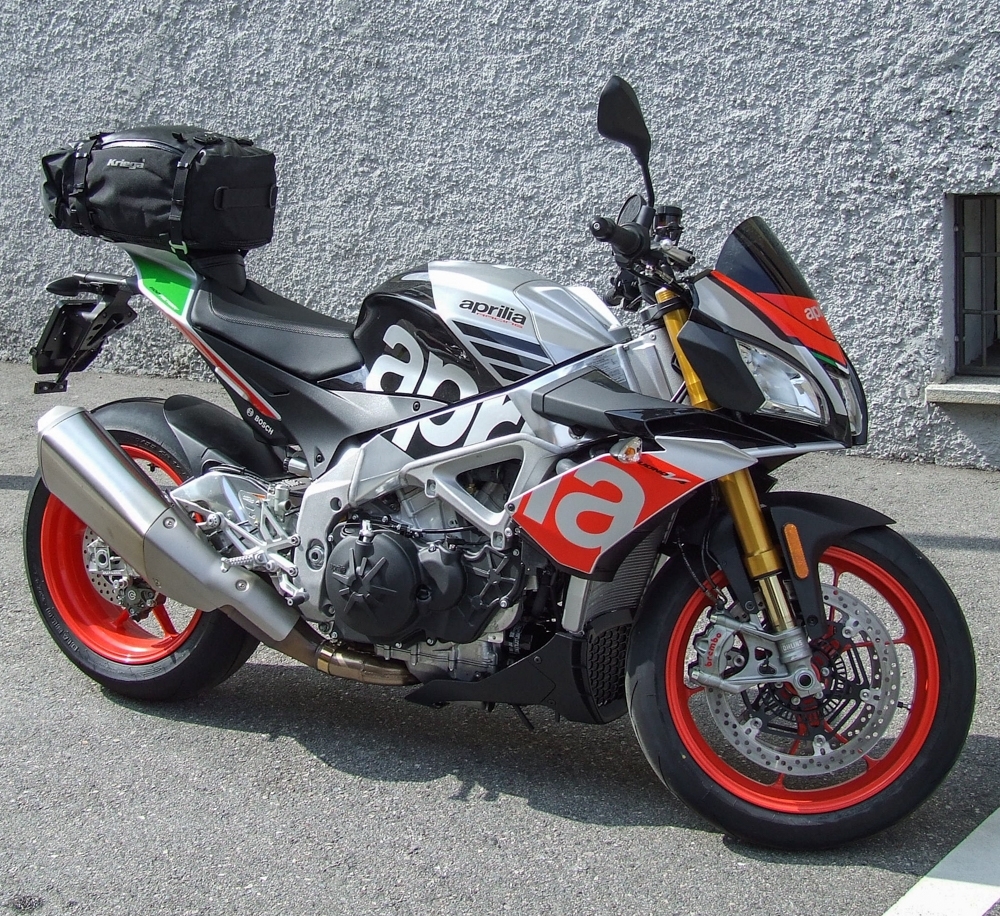

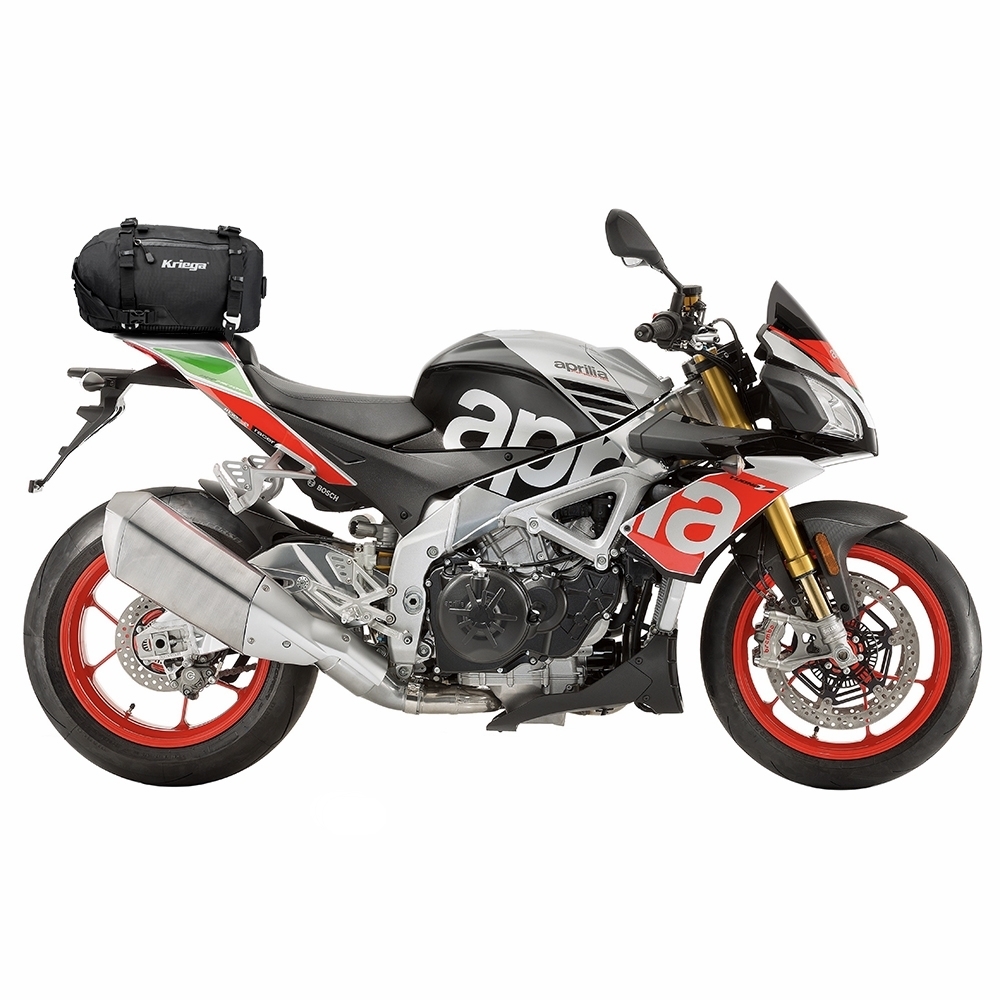

This kit is made specifically for the Tuono Factory to allow you to attach the Kriega range of US drypacks.

Also suits the RSV4 RF & RSV4 RR (but NOT the TUONO RR) and all models must have the pillion seat option.

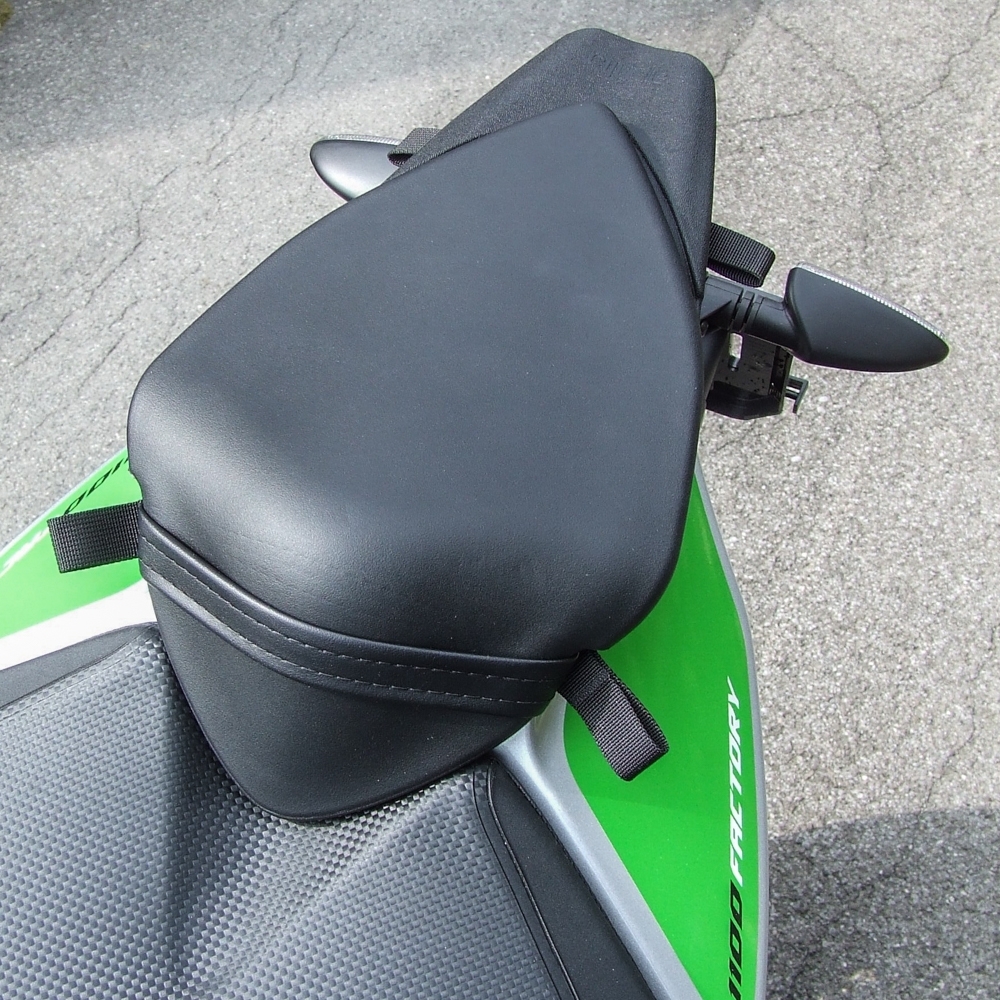

The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the pillion seat using the existing mounting locations. Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.

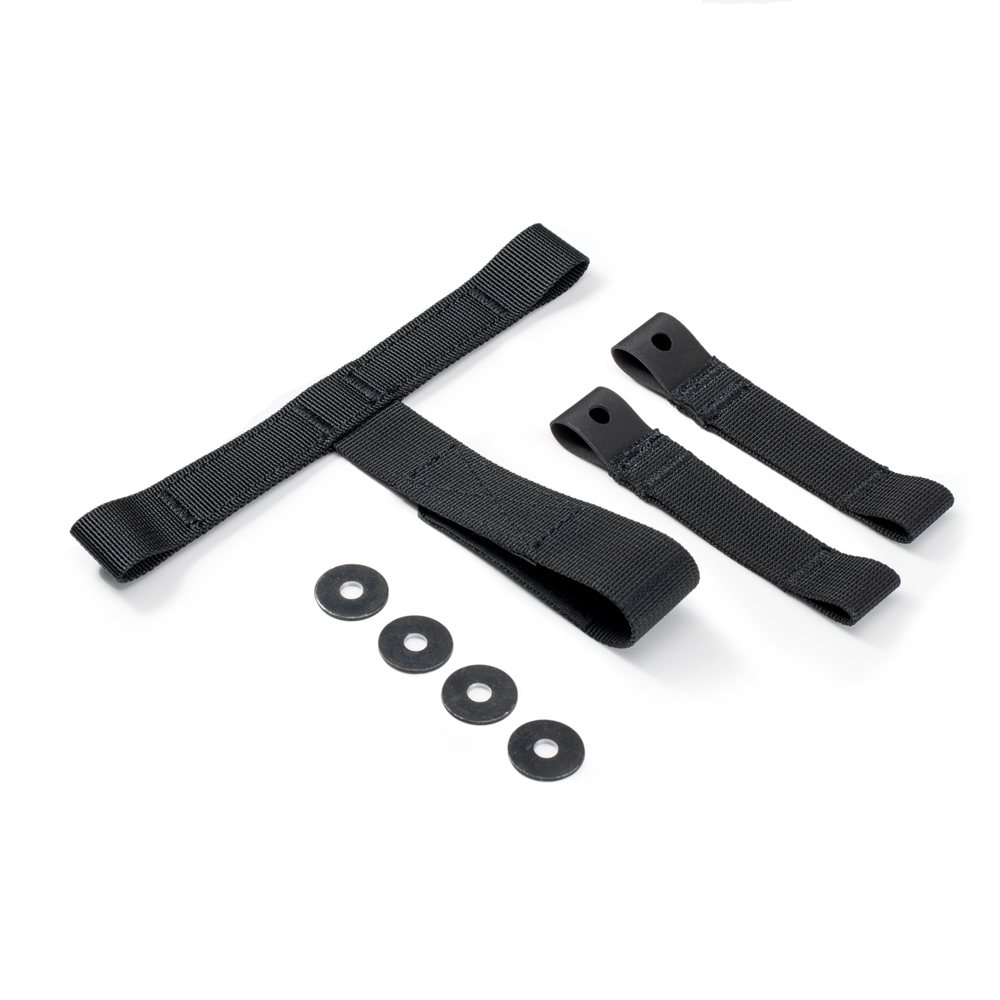

PACK CONTENTS

1 x ‘T’ shaped hook & loop strap
2 x bolt-on loops
4 x M6 washers

FITTING

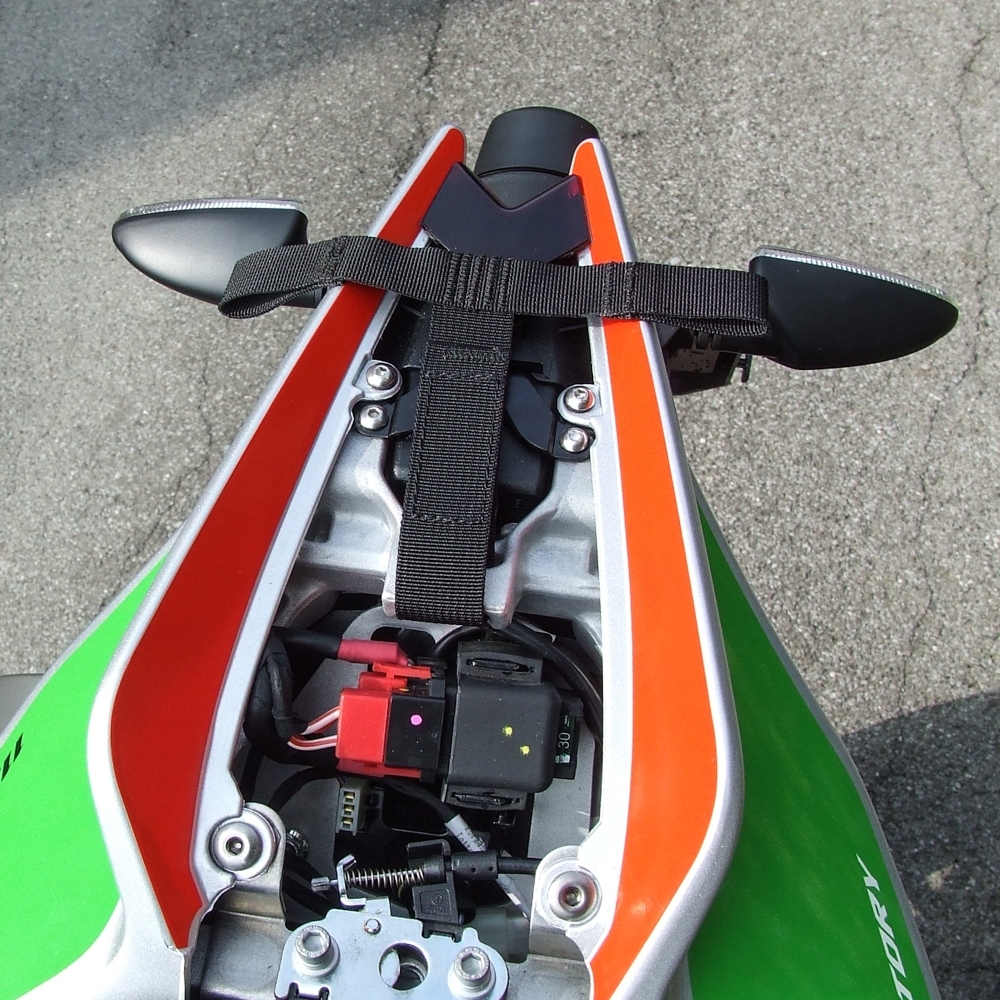

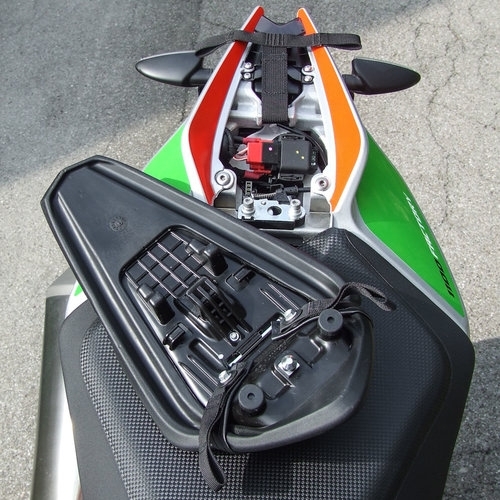

Remove the pillion seat, thread the ‘T’ strap under the centre section and secure using the hook + loop fixing.

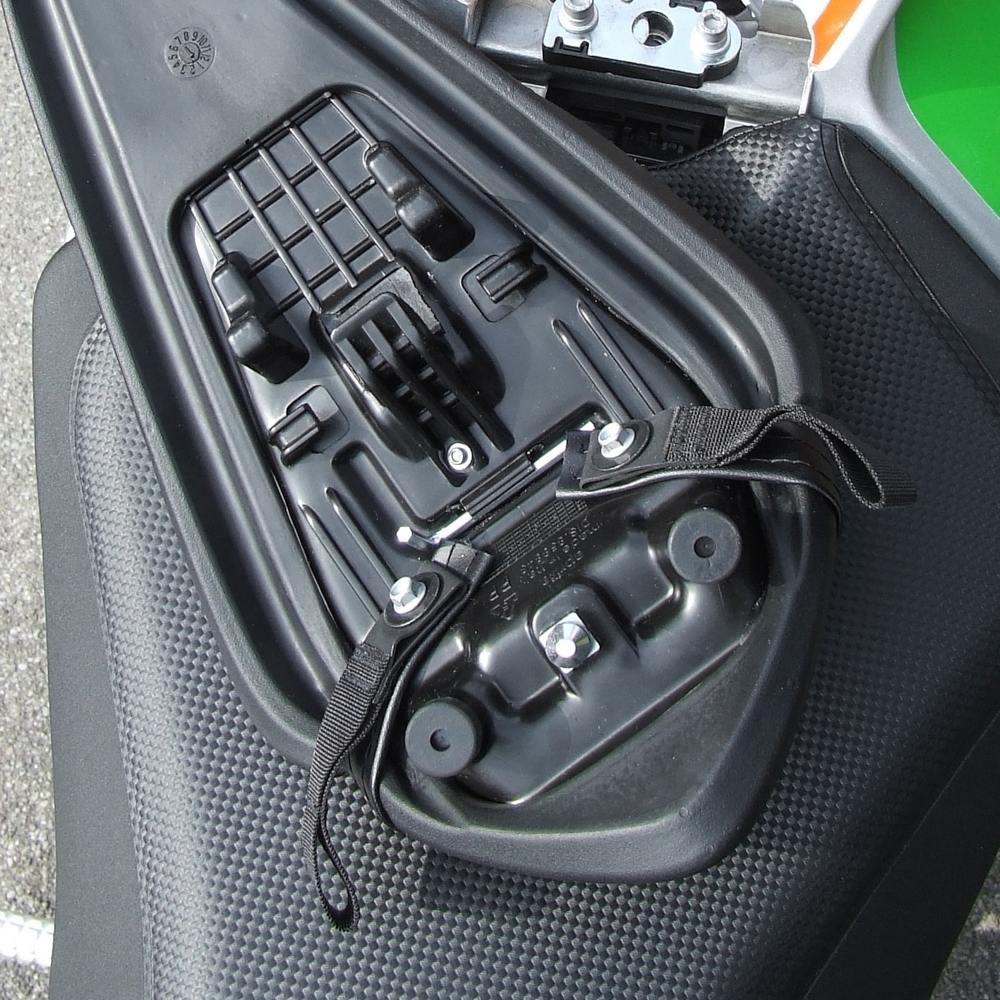

Slide two M6 washers inside the two bolt-on loops. Use the existing seat-strap M6 bolts plus the extra two washers to secure in position as illustrated.

NOTE
We advise you add some protective tape to the 2 rear fins to protect the the paintwork
