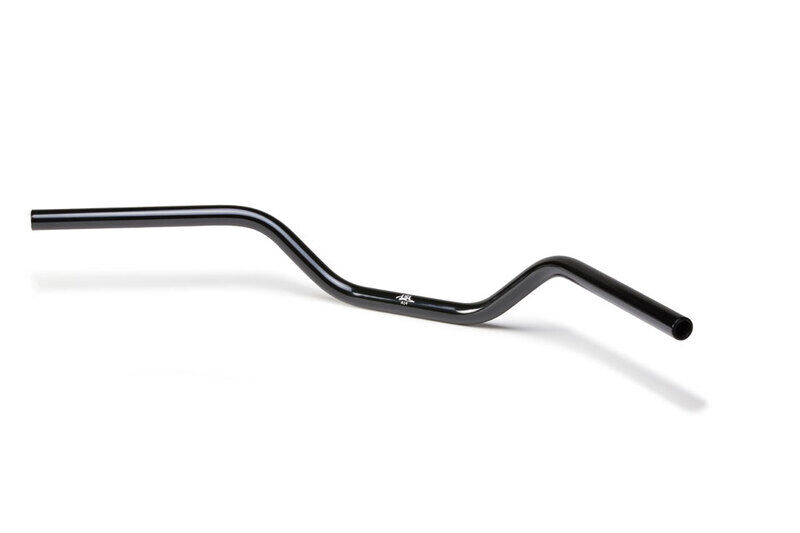

HIGHSIDER pro Flat Track Z14 Steel Handlebar - 25.4 mm (1") - Cable Recess

Give your motorcycle a distinctive flat-track inspired riding position with the HIGHSIDER pro Flat Track Z14 Steel Handlebar. With its wide 839 mm profile, moderate rise and 187 mm sweep, the Z14 is designed to provide a direct, confident riding position with excellent leverage and control.

Manufactured from high-strength steel, the handlebar combines excellent bending stiffness with high resistance to fracture, providing a strong and dependable replacement or custom handlebar option.

Designed for 1" Handlebar Applications

The Flat Track Z14 features a 25.4 mm (1") outside diameter with a substantial 3 mm wall thickness. Cable recesses are formed into the control areas to accommodate internally routed wiring used by the handlebar switches on various Harley-Davidson motorcycles.

The cable recesses do not prevent the handlebar from being used on motorcycles where this feature is not required, making the Z14 suitable for a variety of compatible 1" handlebar applications.

Features

• Flat-track inspired handlebar design.
• Wide 839 mm profile provides excellent leverage and control.
• Manufactured from high-strength steel.
• 25.4 mm (1") outside diameter.
• 3 mm wall thickness with approximately 18 mm internal diameter.
• Integrated cable recesses in the control areas.
• Suitable for compatible Harley-Davidson applications requiring cable recesses.
• Cable recesses do not restrict use on motorcycles where they are not required.
• No crossbar.
• TÜV part type approval documentation supplied.

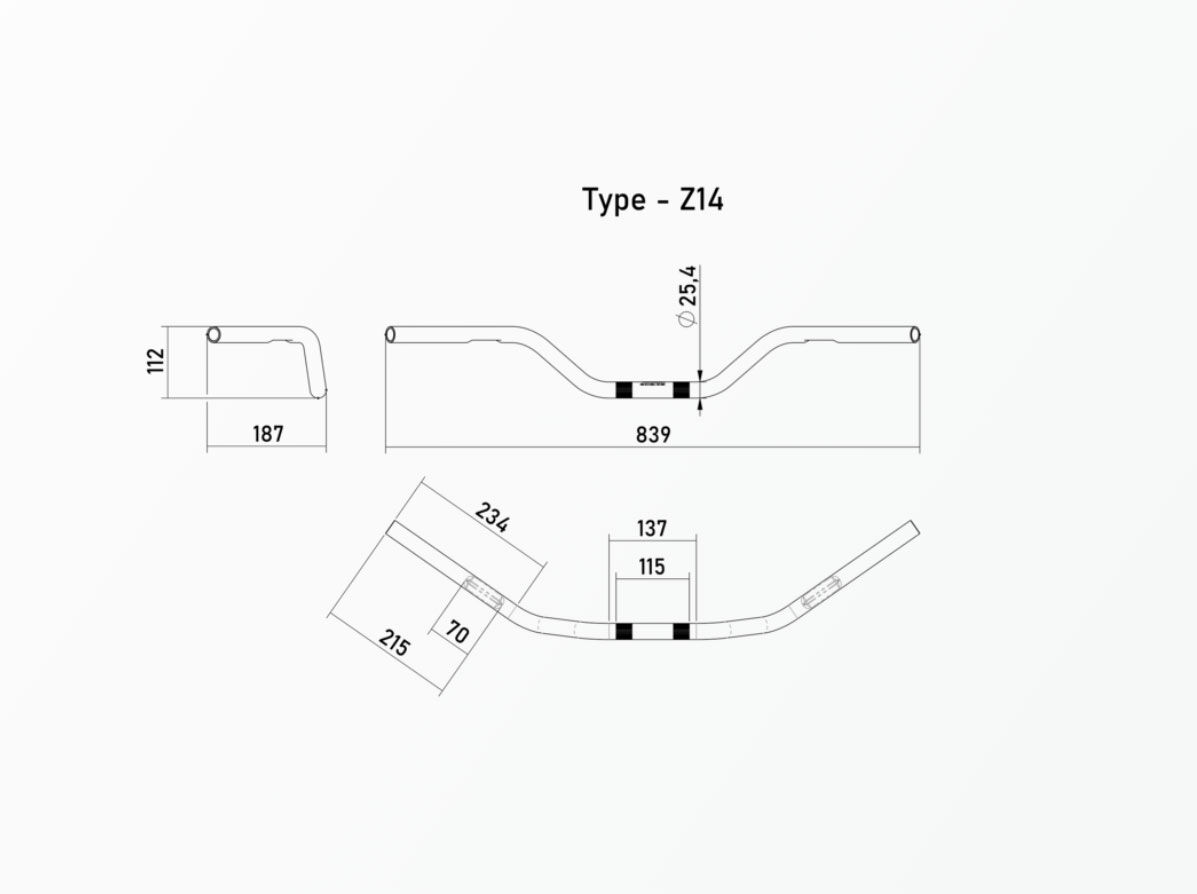

Dimensions

• Width: 839 mm
• Height: 112 mm
• Sweep: 187 mm
• Diameter: 25.4 mm (1")
• Wall Thickness: 3 mm
• Internal Diameter: Approximately 18 mm
• Clamp Area Width: 137 mm
• Knurled Area Width: 115 mm
• Control Length: 234 mm

Installation Information

The handlebar is supplied without pre-drilled locating holes for the anti-rotation pins used by some handlebar switch assemblies. Where locating holes are required, their positions will need to be transferred from the motorcycle's original handlebar.

HIGHSIDER recommends its optional HIGHSIDER pro Drilling Template (Part No. 902DT01HP) to assist with accurately transferring the original hole positions.

Included

• 1 x HIGHSIDER pro Flat Track Z14 25.4 mm (1") Steel Handlebar.
• 1 x Installation Instructions.
• 1 x TÜV Part Type Approval Documentation.

Important Information

TÜV part type approval documentation is supplied with the handlebar. Any conditions or requirements specified within the approval documentation should be followed, and the documentation may need to be carried with the motorcycle and presented to the relevant authorities when requested. Please also check applicable local regulations before installation and use.

With its strong steel construction, generous width and classic flat-track geometry, the HIGHSIDER pro Flat Track Z14 is an excellent choice for riders looking for a purposeful 1" handlebar with a direct and sporty riding position.

Installation Instructions
