SPECIAL ORDER ITEM: This item is no longer stocked on our shelves and is ordered in as required. Assuming the item is in stock at Motogadget, it will normally take around 1 month to get here.

Please request us to order it here.

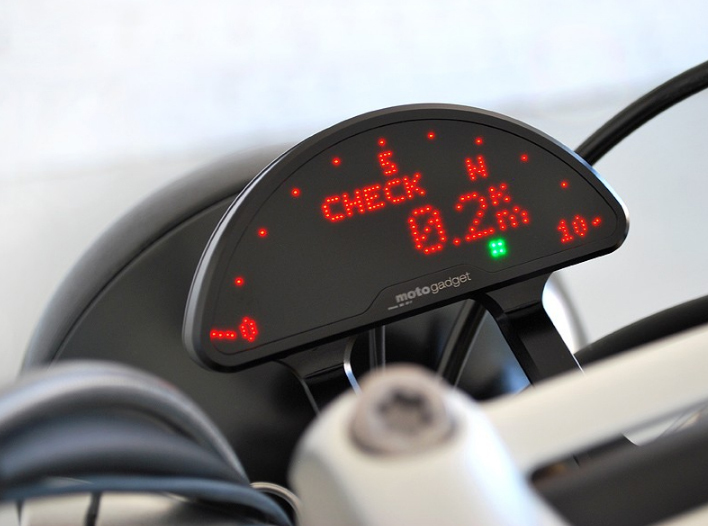

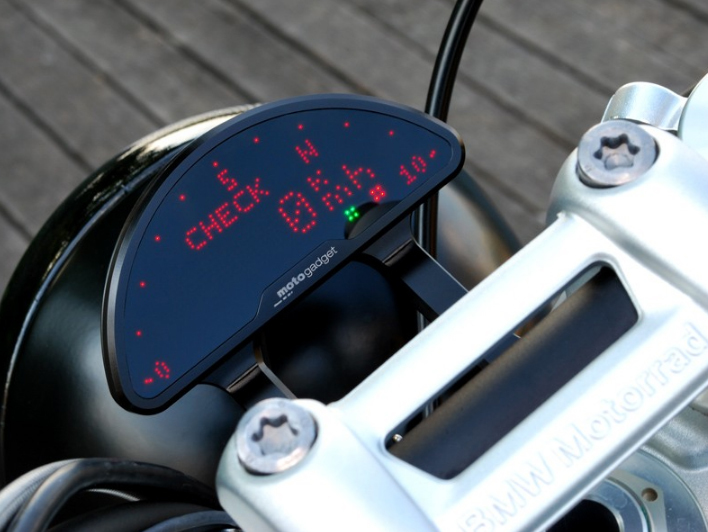

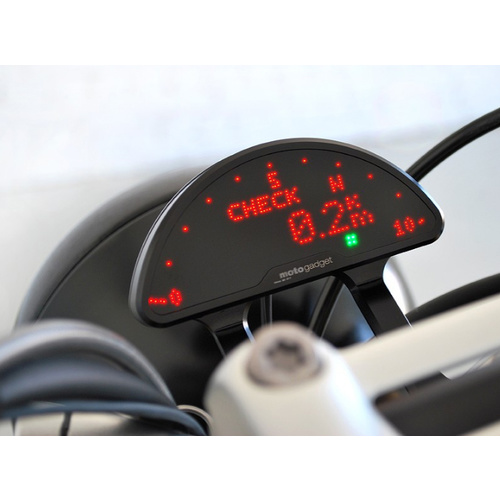

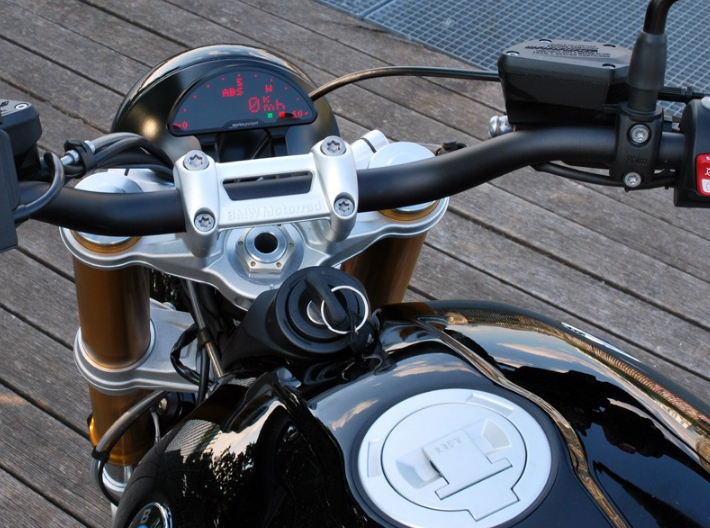

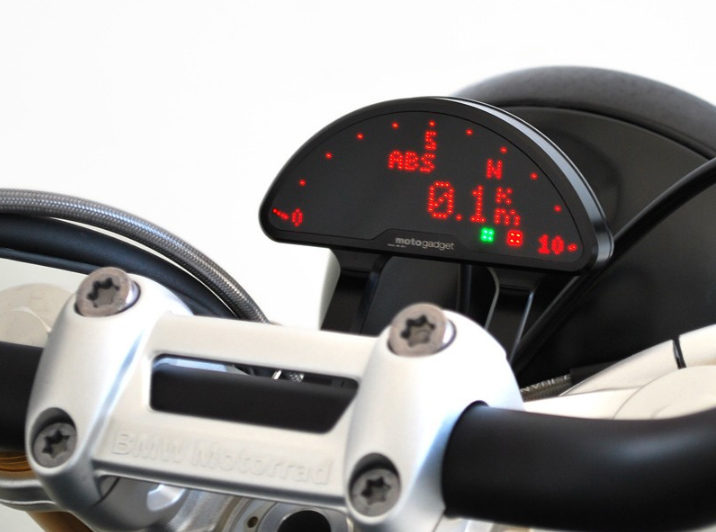

This version of Motogadget's popular Motoscope product is for the BMW R Nine T (2014 - 2016). Not compatible with BMW R nineT Model 2017 and later, R nineT Urban G/S, R nineT Pure, R nineT Racer, R nineT Scrambler.

The CAN-Bus interface of the motoscope pro enables the complete display of all original functions (except settings for heated grips). The original plug connector for the original wiring loom makes the instrument a real plug&ride solution and a very easy installation.

Contains 734 LEDs and is the latest in their digital dashboard series.

Governed by a 16-bit RISC processor, this cutting edge technology and ultra slim casing creates an almost rimless, self-illuminating display. Very easy to read even under direct sunlight with automatic brightness control.

The rev-counter display is fully scalable via the analogue LED band with drag indicator function. The main and secondary display are user configurable, and another section of the display shows the current gear.

Four indicator lights are pre-installed and more input signals can be used via the Breakout Boxes (see Related Products below). The motoscope pro is equipped with a fully-fledged CAN-bus interface and is therefore ready for many of tomorrow's developments, for example the plug 'n ride Breakout-Box Triumph.

The dashboard communicates through a proprietary digital one-wire bus (m-Bus) with additional Breakout Boxes available if required (sold separately). This makes the dashboard very versatile and for a wide range of vehicles and tasks.

The billet aluminium casing is CNC machined and is easily mounted by two backside threaded holes. The instrument is equipped with an ABE and does not have to be registered.

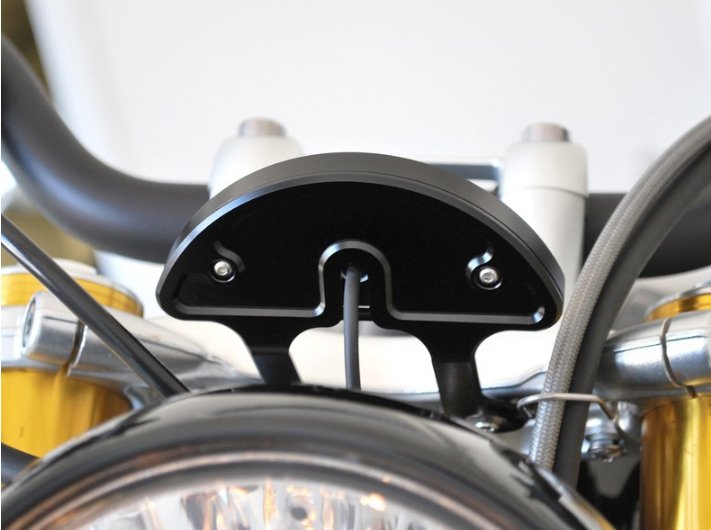

You will also need to get the Motogadget msp Mounting Bracket For BMW R Nine T to mount this product.

What's Included:

• Instrument with ca. 70 cm connector cable
• 2 stainless steel screws
• Detailed installation and operating instructions

• Length, Height, Depth: 109 mm/ 47 mm/ 11 mm
• Weight: approx. 100 g
• Mounting: 2 x M3 threaded hole
• Power consumption during operation: max. 200 mA (load dependent)
• Power consumption in standby: 0.4 mA
• Operating voltage: 9 V - 15 V
• Operating temperature: -20°... +80°C
• Rev counter (LED bargraph): 0 – 6, 8, 10, 12, 14, 16, 18 krpm (adjustable)
• Speedometer: 0 – 350 km/h or mph
• Trip meter A: bis 999.9 km or mi
• Trip meter B: bis 999.9 km or mi
• Total mileage (adjustable): bis 250000 km or mi
• Operating hours/Service: 0 – 9999.5 h
• Clock: 23:59 h/min
• Timekeeping: 0 – 99:59:59 h/min/s
• RPM count (numerical): 0 – 20000 rpm
• Adjustable RPM warning (gear shift light): 0 – 20000 rpm
• On-board voltage: 9 – 18 V
• Low voltage warning: Warning if below ca. 11V
• Timekeeping: 0 - 100 km/h or 0 - 60 mph 0.00 – 30.59 sec.
• Actual accelleration: +/- 0.00 – 1.50 G
• Average speed: 0 – 350 km/h or mph
• Max. speed: 0 – 350 km/h or mph
• Max. RPM: 0 – 20000 rpm
• Max. positive acceleration: +1.50 G \
• Max. negative acceleration: - 1.50 G
• Gear display: N, gear 1 - 6
• Green control LED: Neutral (N)
• Green control LED: Turn indicator left/right
• blue control LED: High beam
• Red control LED: Miscellaneous warning functions like Check Engine, ABS, low fuel
• Fuel/Reserve: low fuel warning
