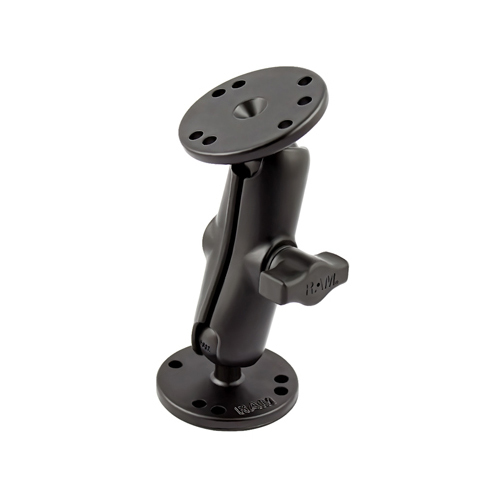

This is a 1" ball mounting system from RAM Mounts. It consists of a double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern.

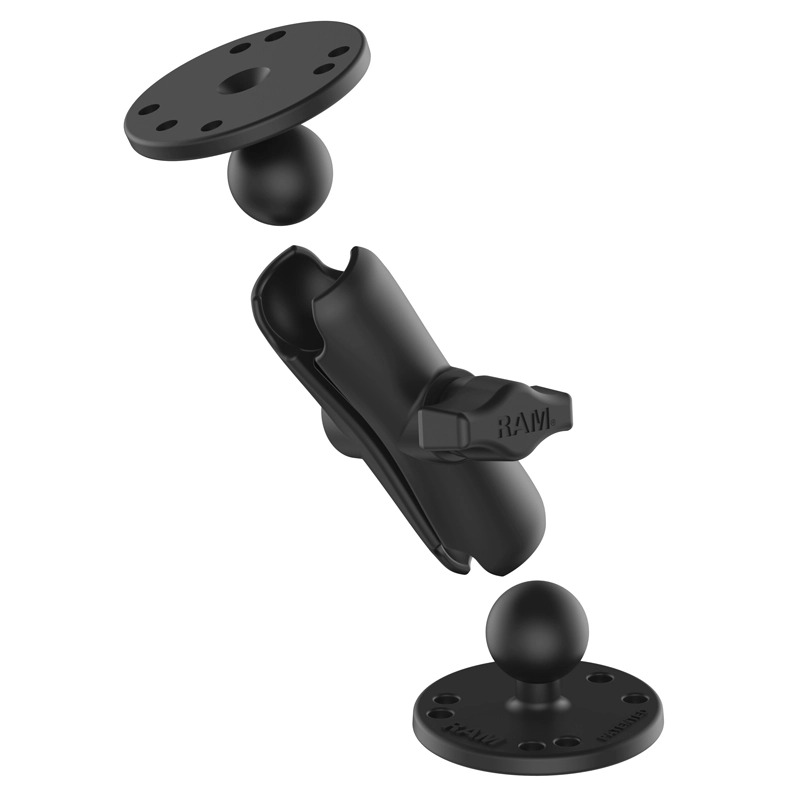

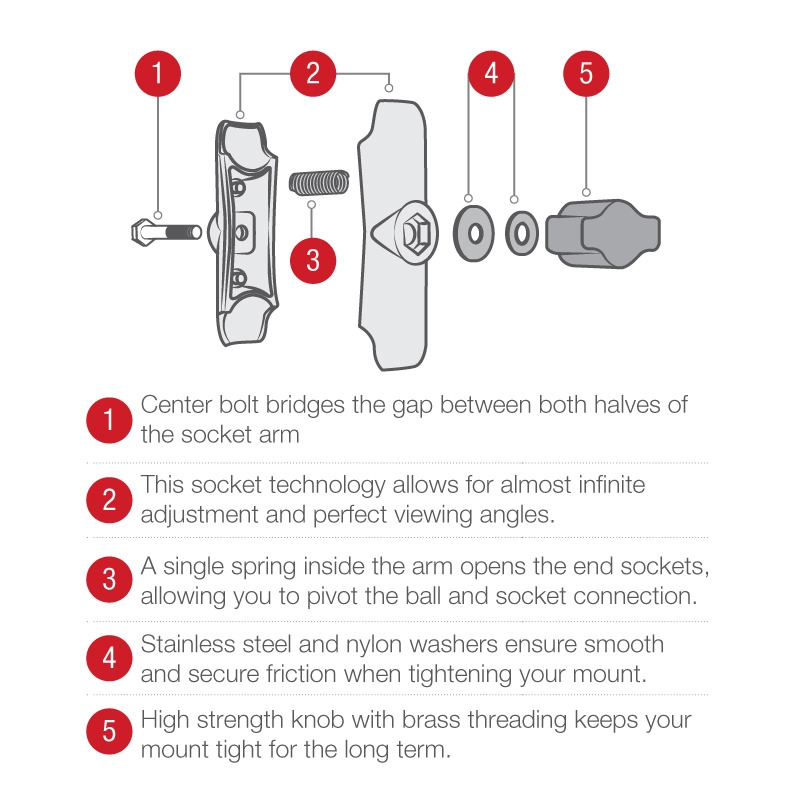

The mount uses the RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, giving you almost unlimited angles. The AMPS hole pattern on each of the round bases will connect to any of the RAM Mounts cradles.

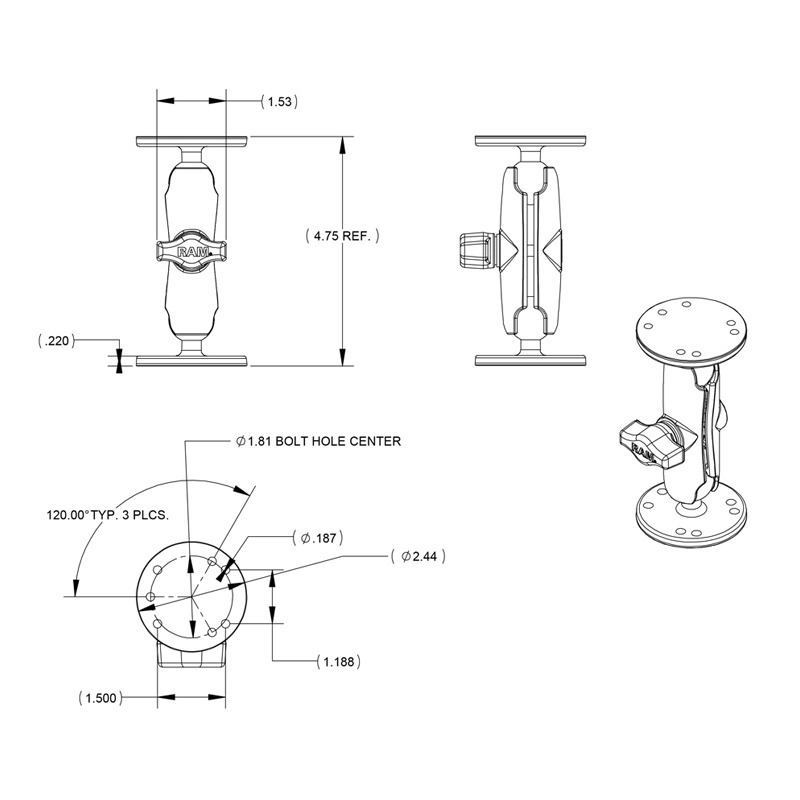

  • Overall Height: 5" (12.7cm)
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber "B" Ball Size
  • Weight: 254 grams

Note: The "U" in the part number reflects product packaged in poly bag

Barcode # 793442101014
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Custom Bundle: No

Modified Item: No

Non-Domestic Product: No

Warranty: Lifetime

Lifetime Warranty

Holds iPad Well

By: on 10 October 2017
Just finished using this iPad mount in my patrol at the Outback Challenge as a Marshall. Worked extremely well. Only a small amount of vibration at times. Was perfect for navigating stages and traveling fast on rock terrain and creek beds. Only thing different I would do is maybe upgrade to a C size ball for a longer arm for more adjustment.

Fantastic Product

By: on 10 August 2017
These RAM Mounts are very solid and great value. Bought the ram mount to mount my Dragonfly 7 pro GPS Fish Finder on a fishing kayak console. The unit already has a 1" ball mount, but I needed more movement.
