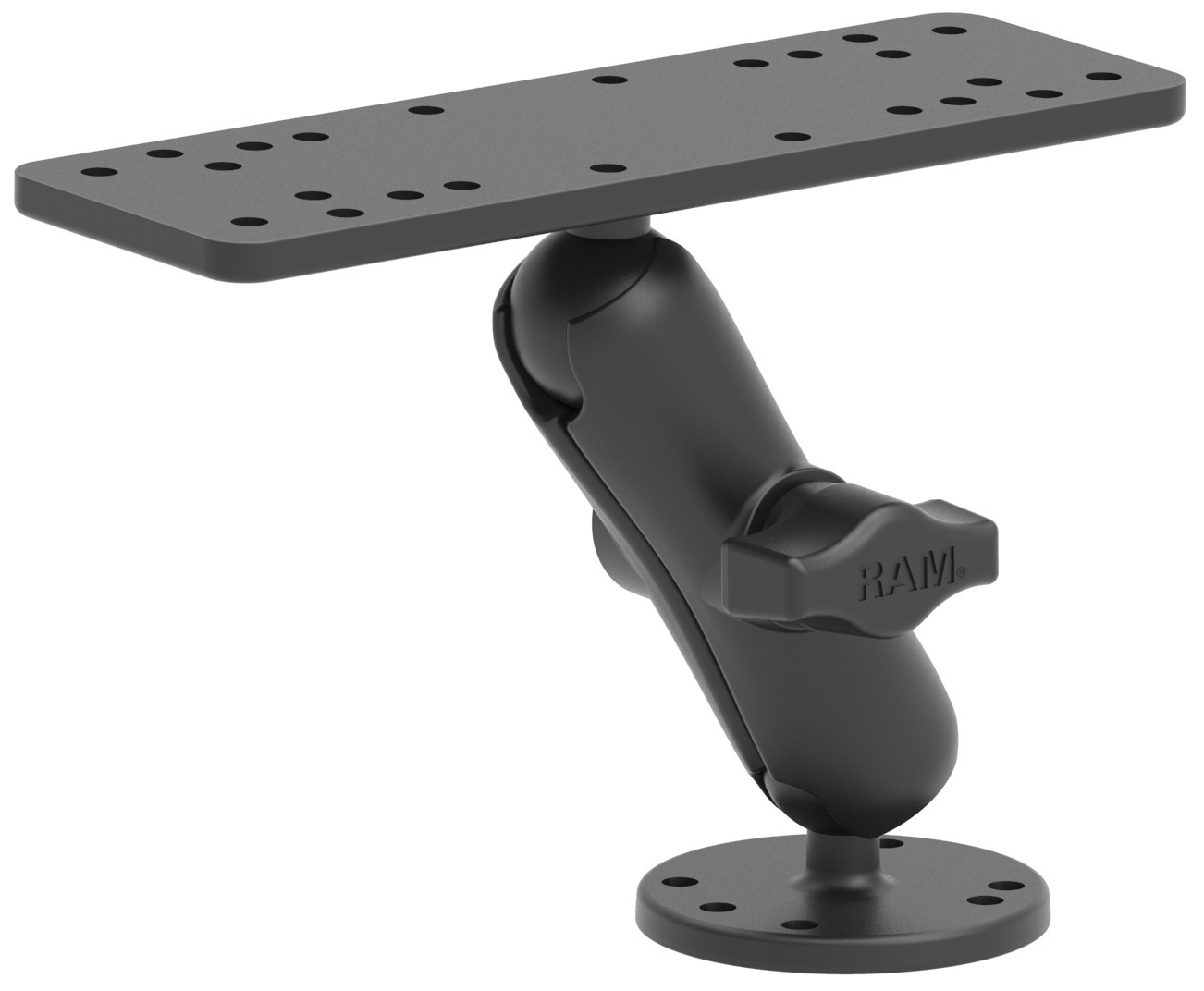

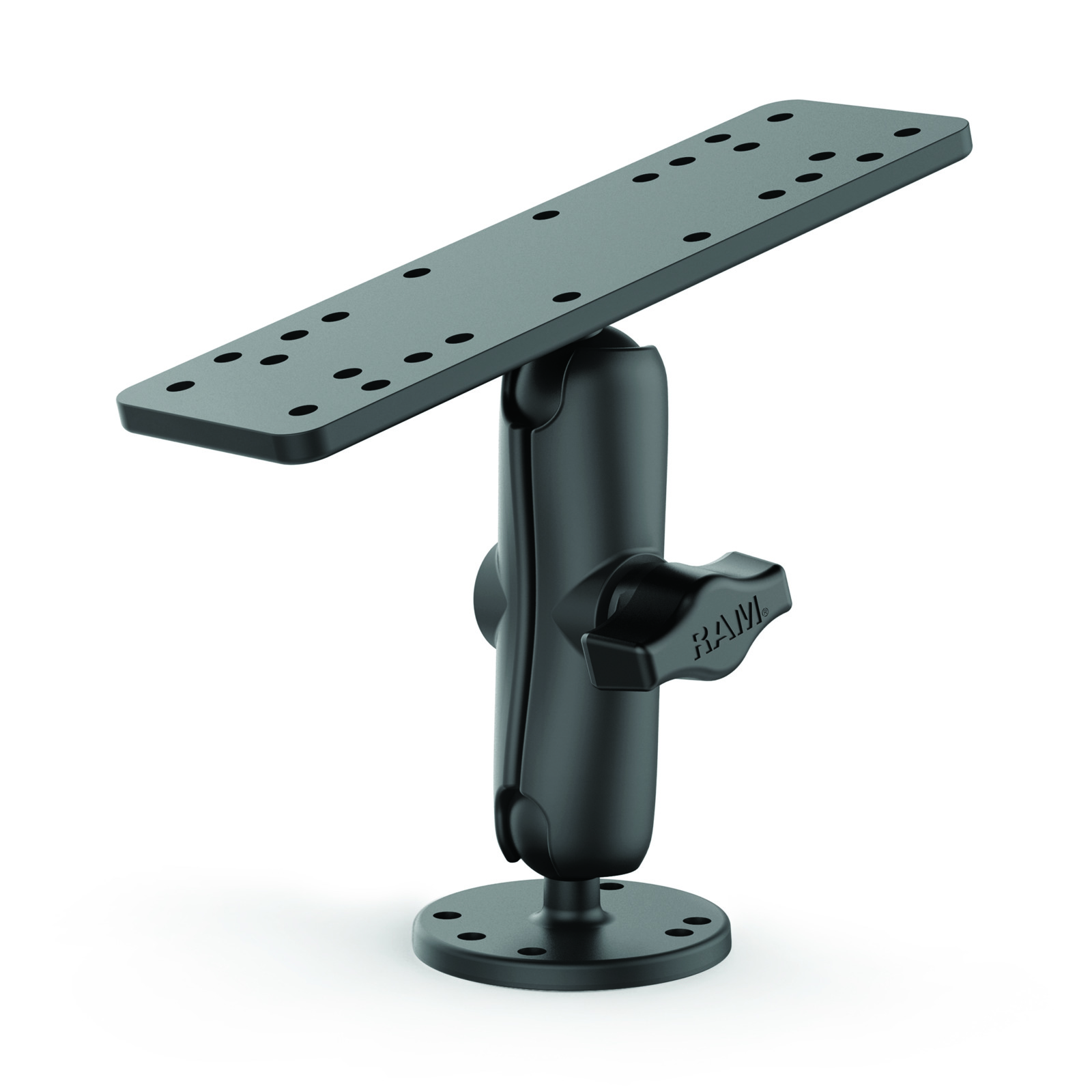

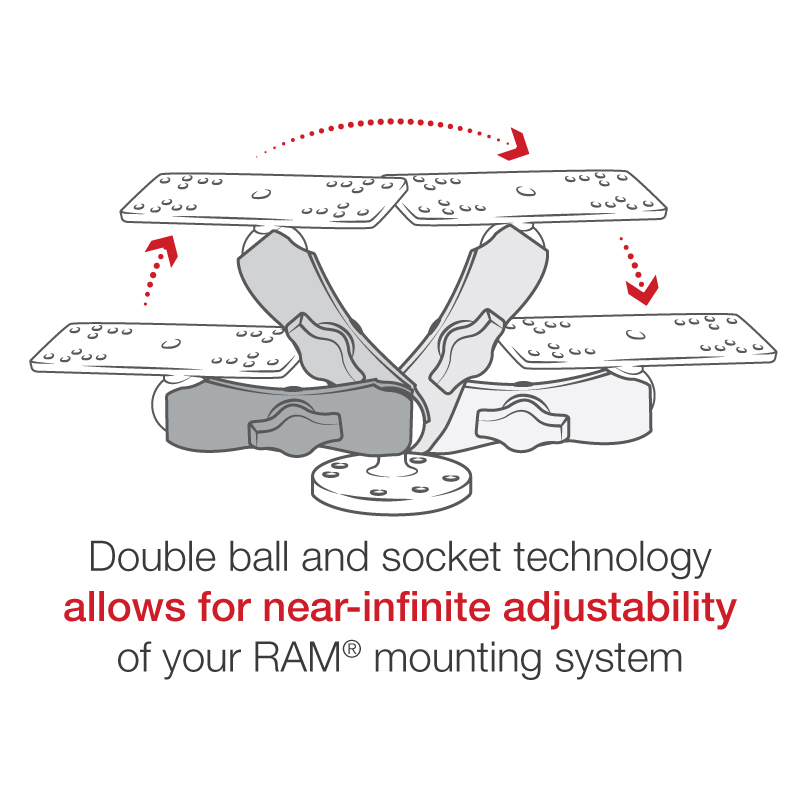

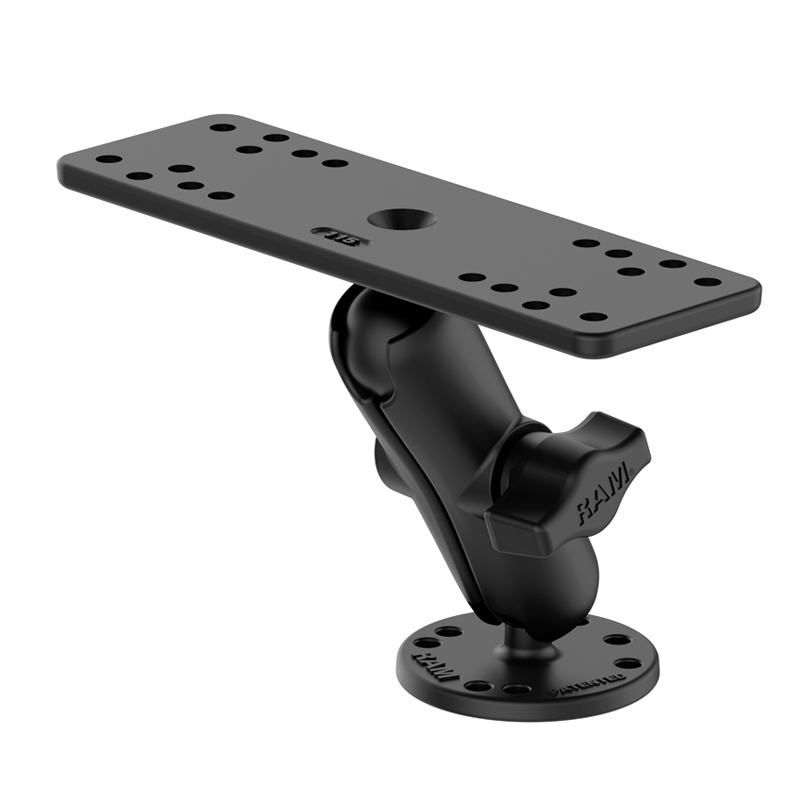

This is a great mount for light weight marine electronics and consists of a double socket arm, a 2.5" diameter round base and a 6.25" x 2" rectangle base.

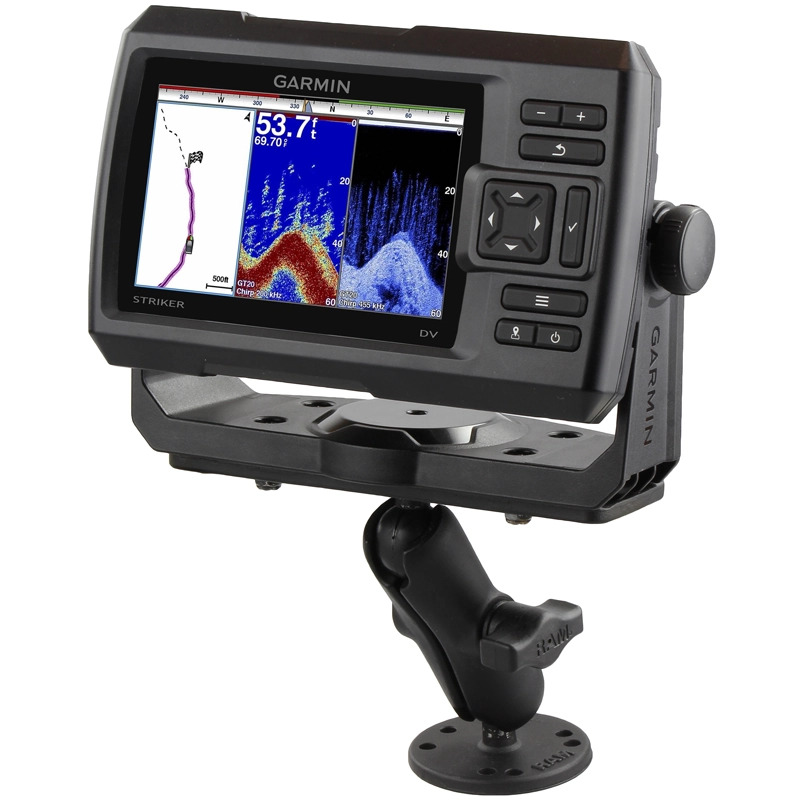

The round base has pre-drilled holes that match the universal AMPS hole pattern, and the rectangle base contains different combinations of pre-drilled holes (see below) which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

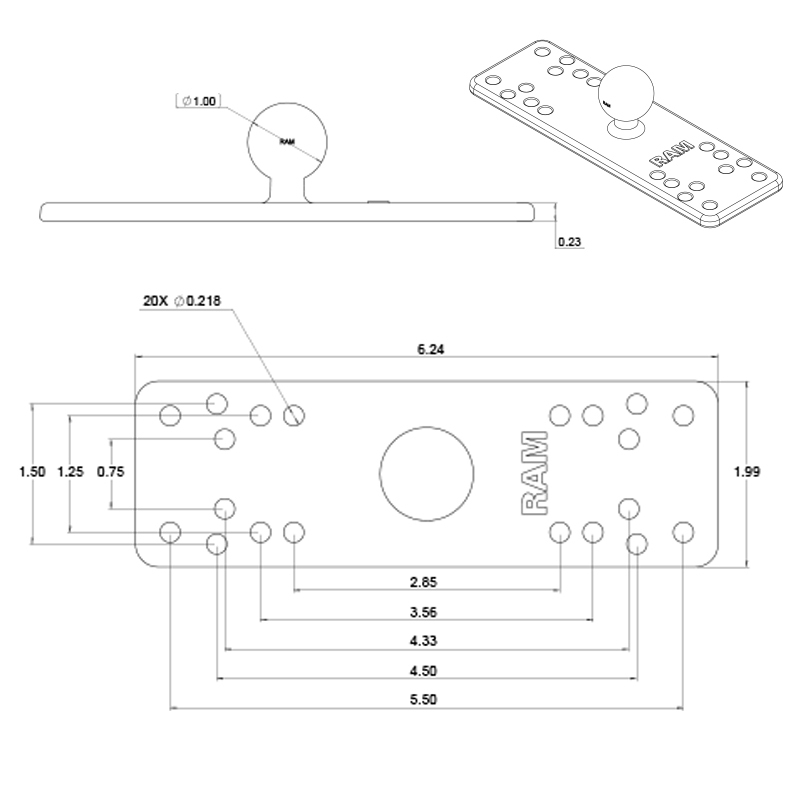

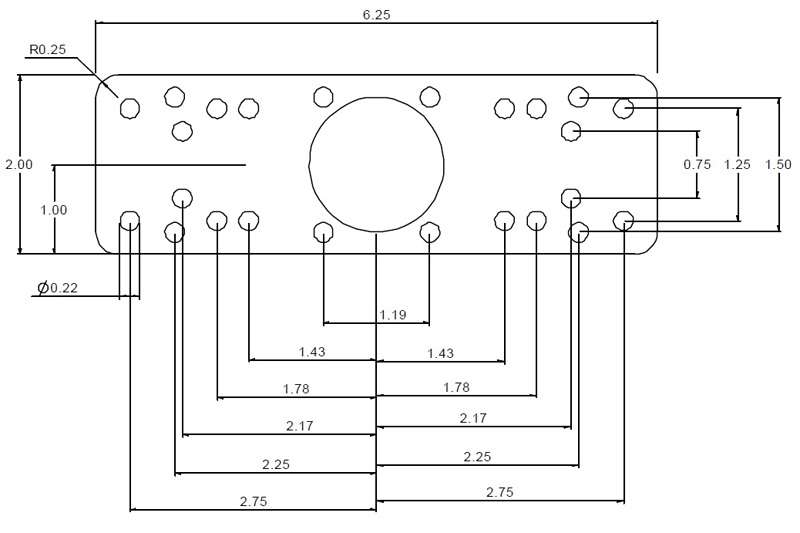

RAM-B-111U Hole Patterns

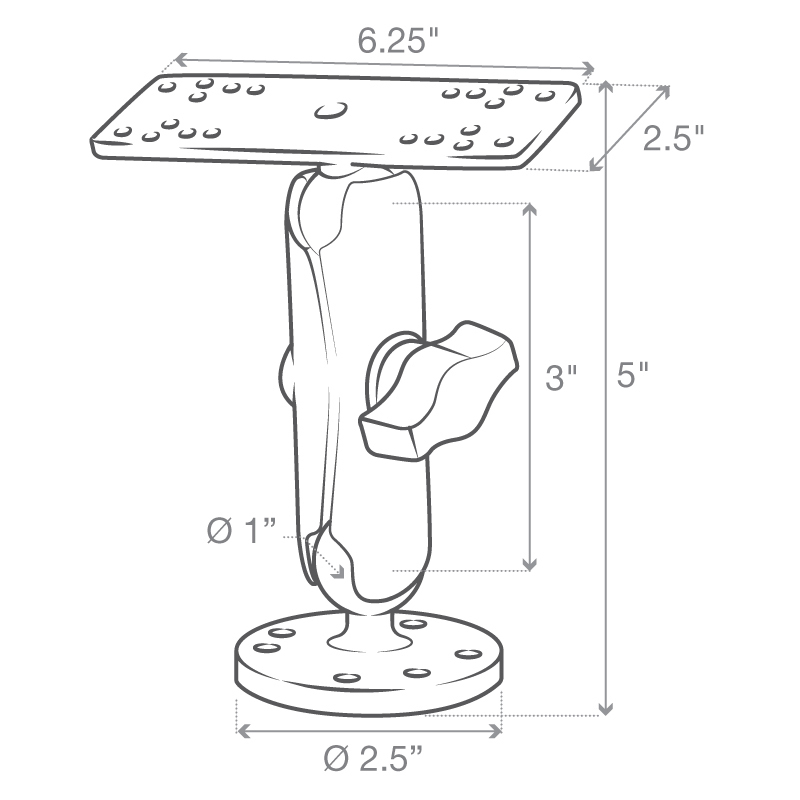

  • Overall Height: 5" (127mm)
  • Weight Capacity: 5 lbs (2.25kg)
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

SKU RAM-B-111U
Barcode # 793442001987
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Modified Item: No

Colour: Black

Manufacturer Warranty: Lifetime

Non-Domestic Product: No

Warranty: Lifetime

Custom Bundle: No
