The RAM® RAM-B-149Z-2-GA41U GPS Mount is a durable and highly versatile mounting solution designed specifically for the Garmin Astro 320 and GPSMAP 62 / 64 series GPS devices. Ideal for Side By Sides, ATVs, and other off-road applications, this mount provides secure attachment and exceptional adjustability in demanding environments.

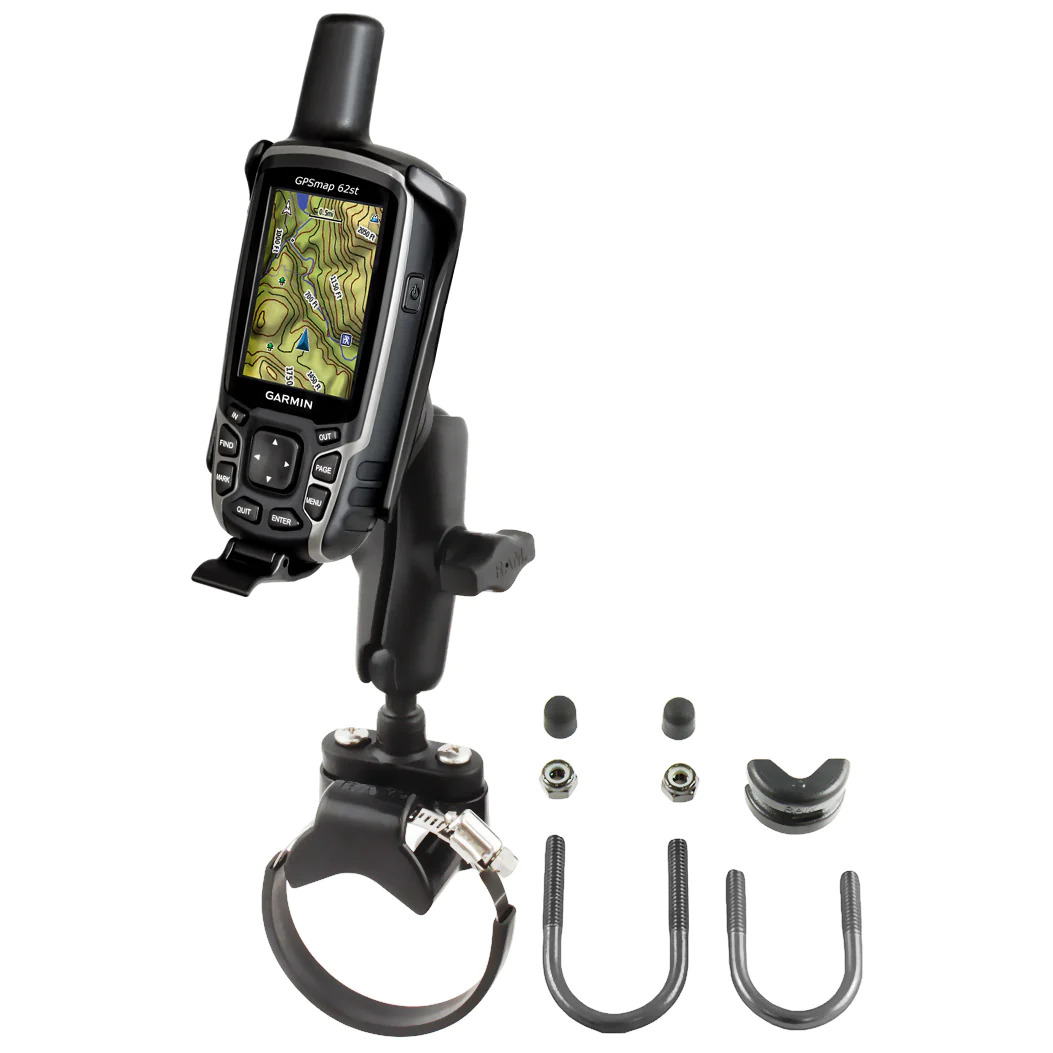

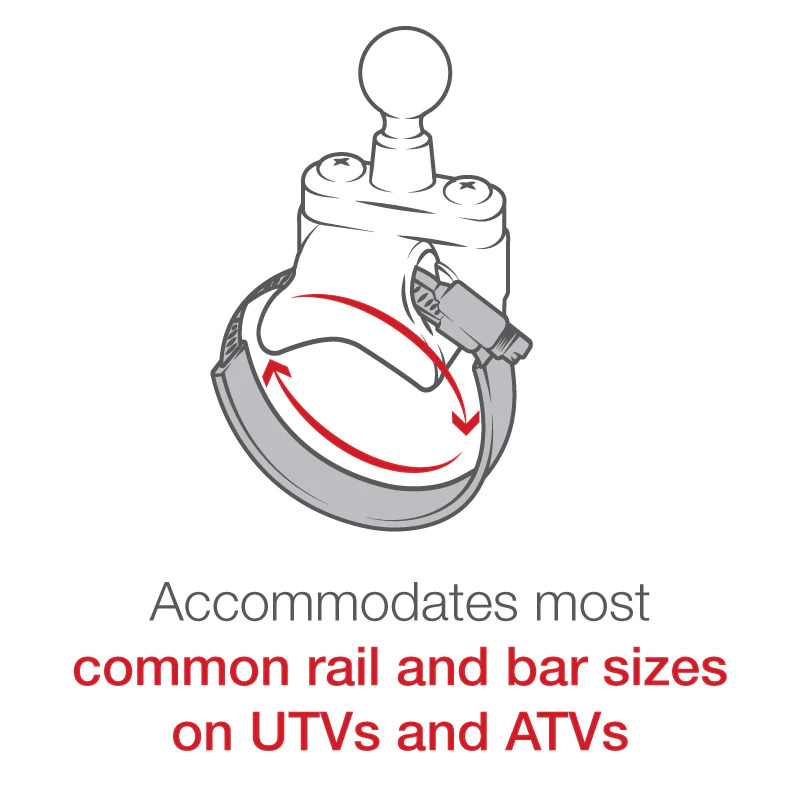

The kit includes a steel strap base, U-bolt mounting options, a double socket arm, diamond adapter base, and a high-strength composite cradle. Designed for a clean installation, the strap clamp accommodates a wide range of roll bar sizes commonly found on Side By Sides, while the included U-bolts allow mounting to smaller ATV handlebars and rails.

Utilising RAM®’s patented 1" B-size rubber ball and socket system, the mount offers near-infinite adjustability, allowing you to position your GPS device at the perfect viewing angle.

• Designed for Garmin Astro 320 and GPSMAP 62 / 64 Series GPS devices
• Suitable for Side By Sides, ATVs, and other off-road vehicles
• Includes strap clamp and U-bolt mounting options
• B-size 1" RAM® ball system for flexible adjustment

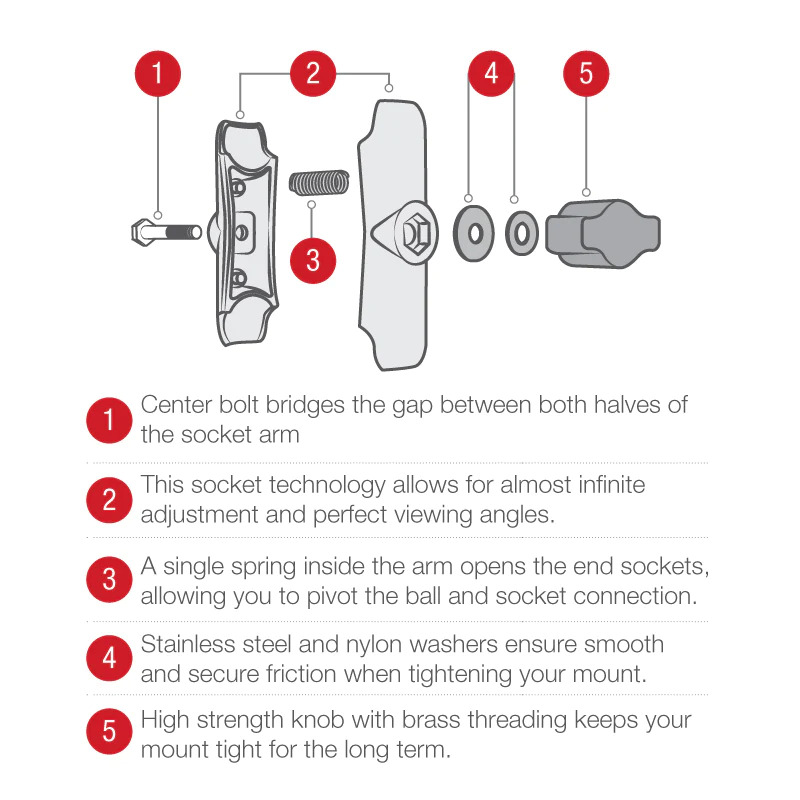

• Double socket arm provides near-infinite positioning
• Strong and durable construction for harsh environments
• Ideal for mounting GPS units, spotlights, radios, and more
• Backed by a lifetime warranty

Specifications

• Clamp Range:
• U-Bolt: 12.7 mm – 31.75 mm diameter
• Strap Clamp: 39.9 mm – 80 mm diameter
• Socket-to-Socket Length: 76 mm
• Ball Size: B Size (1")
• Weight Capacity: Standard use: 0.9 kg / Heavy-duty use: 0.45 kg
• Weight: Approximately 0.59 kg

Materials

• Marine-grade aluminium
• High-strength composite
• Stainless steel hardware

Included Hardware

• (1) Strap clamp adapter
• (2) 1/4"-20 × 25 mm machine screws
• (2) 1/4"-20 Nylock nuts
• (1) Zinc worm drive strap clamp
• (1) 152 mm rubber strip
• (1) U-bolt for 12.7 mm – 25.4 mm rails
• (1) U-bolt for 25.4 mm – 31.75 mm rails
• (2) Rubber caps
• (1) U-bolt spacer
