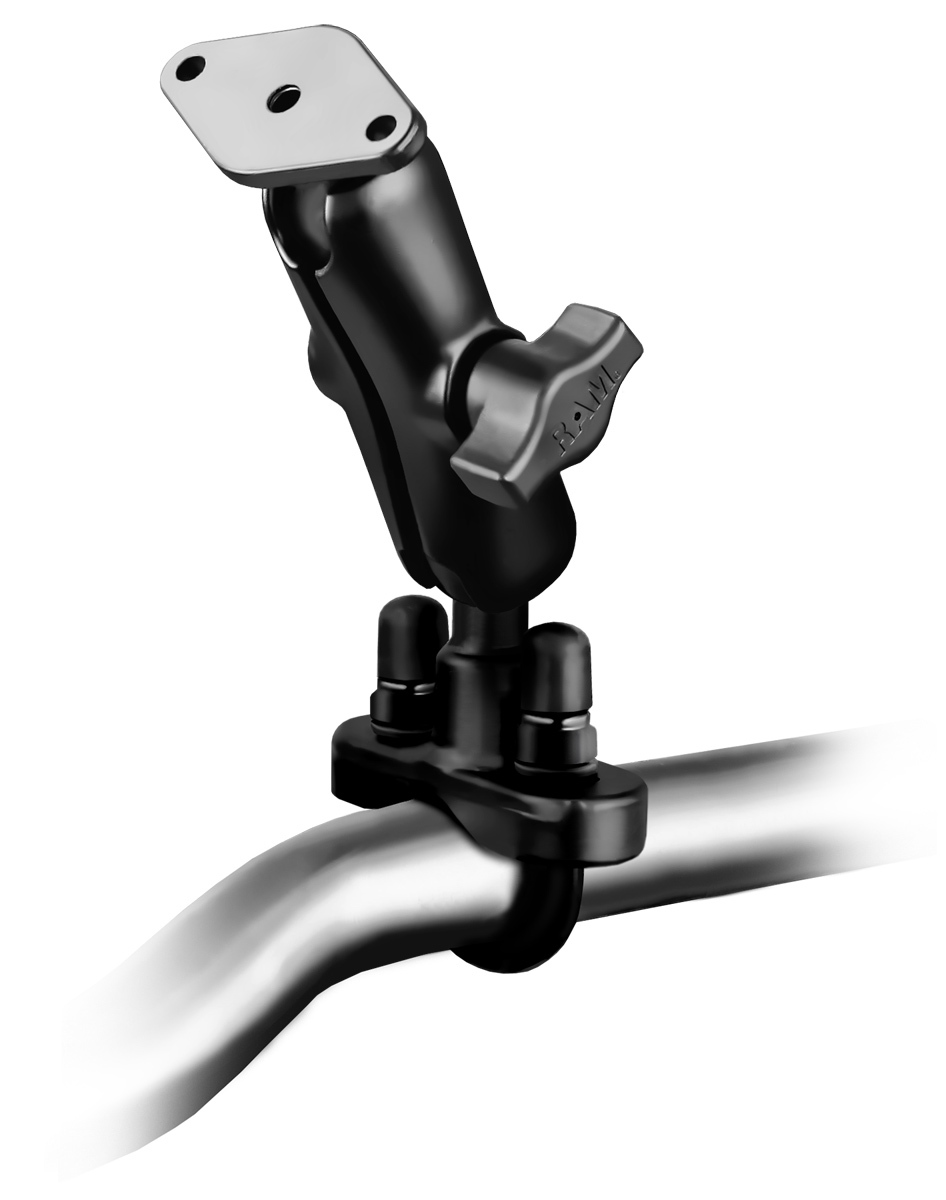

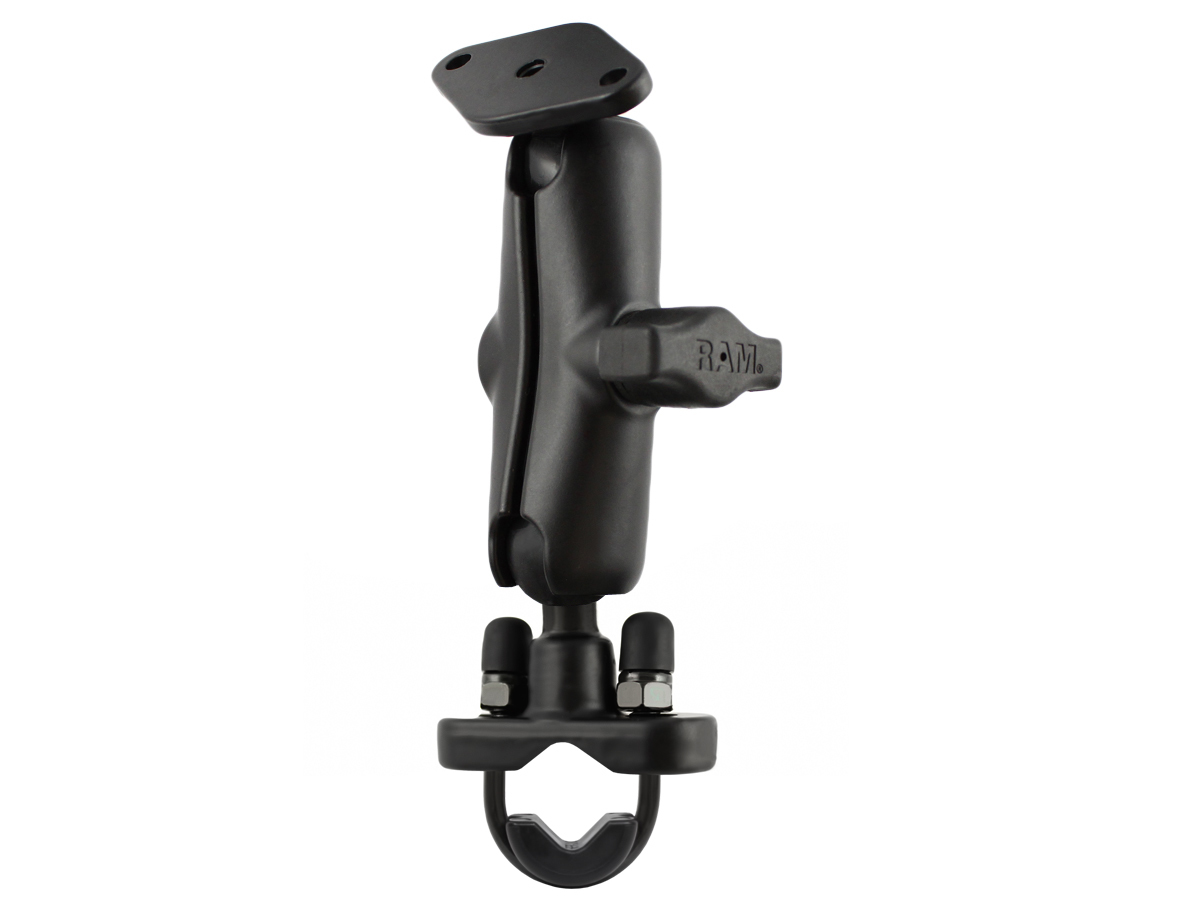

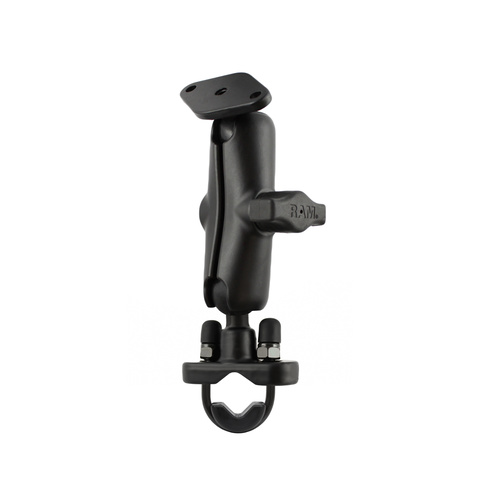

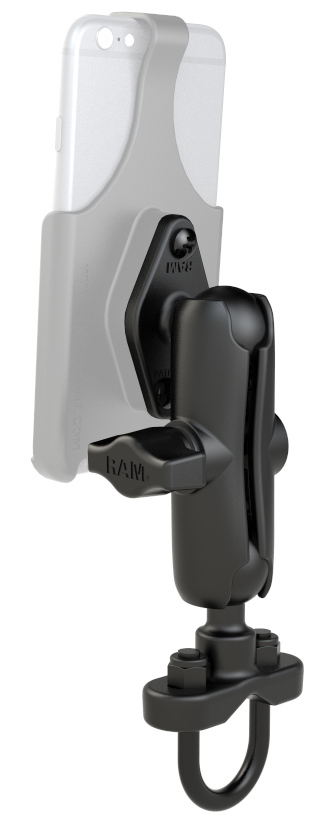

The product will mount to your handlebars, or any bar that is between 0.5" and 1.25" (1.27cm and 3.17cm) in diamater, and allow you to connect to the RAM Mounts 1" ball system, so you can mount just about anything on your bike.

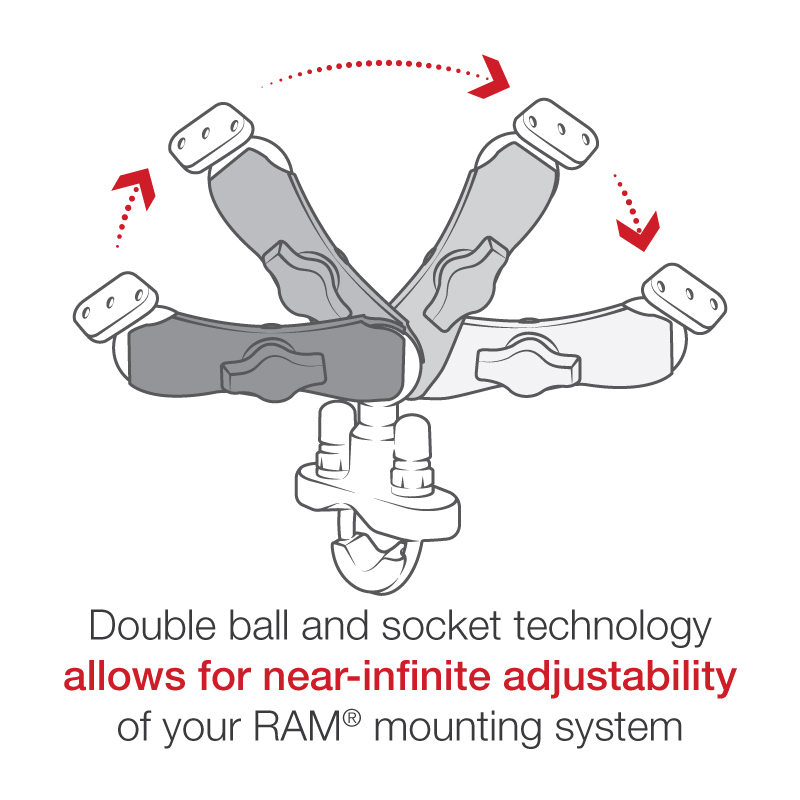

It consists of a zinc coated u-bolt base, a double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to most RAM Mount holders and cradles. The socket arm uses the RAM 1" ball system and allows for almost infinite adjustment and angles.

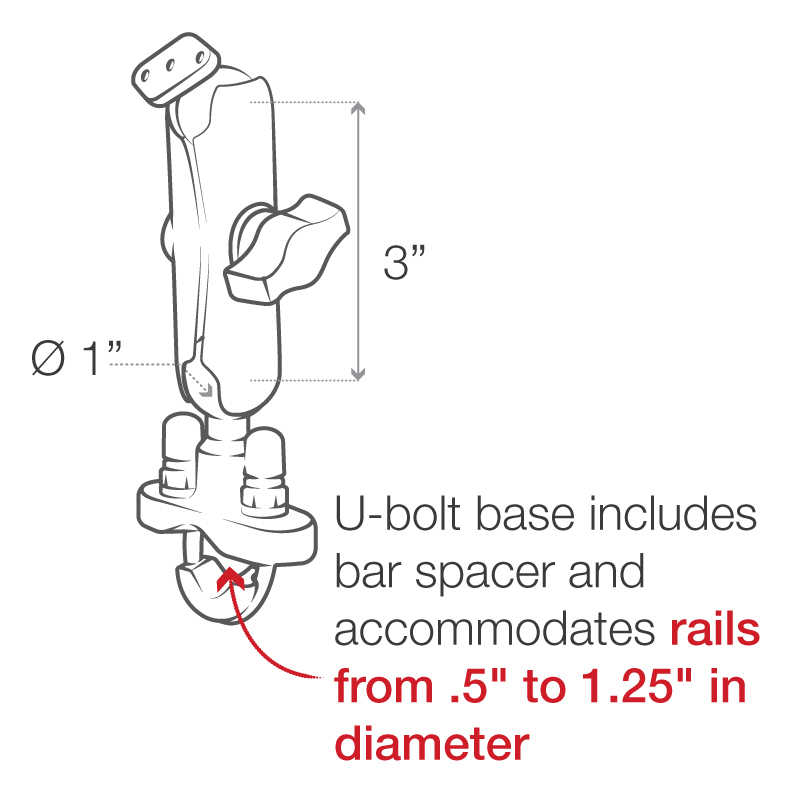

  • U-Bolt Dimensions: Accommodates rails from 0.5" to 1.25" (1.27cm to 3.17cm) in diameter.
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size
  • Made in the USA and comes with a lifetime warranty
  • Weight: 286 grams

Note: The "U" in the part number reflects product packaged in poly bag.

Demonstration Video

Barcode # 793442149009
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Custom Bundle: No

Modified Item: No

Non-Domestic Product: No

Warranty: Lifetime

Lifetime warranty

The Ducks Nuts

By: on 23 January 2018
By far the best mount I've ever used or seen. Mounted to my CRF dirt bike for trail riding, I can grab the end of the mount whilst the bike is strapped to the ute, tug on it back and forward and the entire ute rocks without the mount moving or wobbling at all! To top it off the cheapest place to purchase it I could find was right here in Oz from HurtleGear with super fast delivery!

great product! recomended

By: on 14 July 2015
I received this within 2 business days! Thank you The product is good! It's quite hevy duty and holds my iPhone 6 very well. Over all in very happy with price, shipping and quality of the item. Will be a returning for sure. Thank you

Sturdy and very solid arm!

By: on 4 November 2014
This is a very solid arm, the balls are made of some kind of rubber that holds pretty well into position. Although I liked it a lot I have a couple of things could be better: - It only came with a plastic thing to use on the bottom part of the U-bold, and it's quite thick. I need to use a piece of rubber/vinyl to protect the other side and avoid direct meta-to-metal contact from the mount and my bike's handlebar - The paint was peeling off from some parts - The nuts are painted with regular black paint, in other words, big part of that came off while I was attaching it - The rubber cap for the nuts only covers the thread part of the u-bold, it might be better if it covered the nuts as well - To adjust you use a butter-fly stile nut, that works pretty well, but I'm not sure if I would leave it permanently installed on my bike as anyone could steal the mount by simple un-screwing it. A second option like a normal nut could be provided so things would be installed permanently. Well, sorry for all cons, I think I would definitely buy another as it's a very good product, but I miss those refinements that I would expect from a premium product.
