This is a double suction cup mount that will let you mount your 10" tablet to a flat, non-porous surface (eg. windscreen). It is designed for tablets that are in a heavy duty case (see dimensions below).

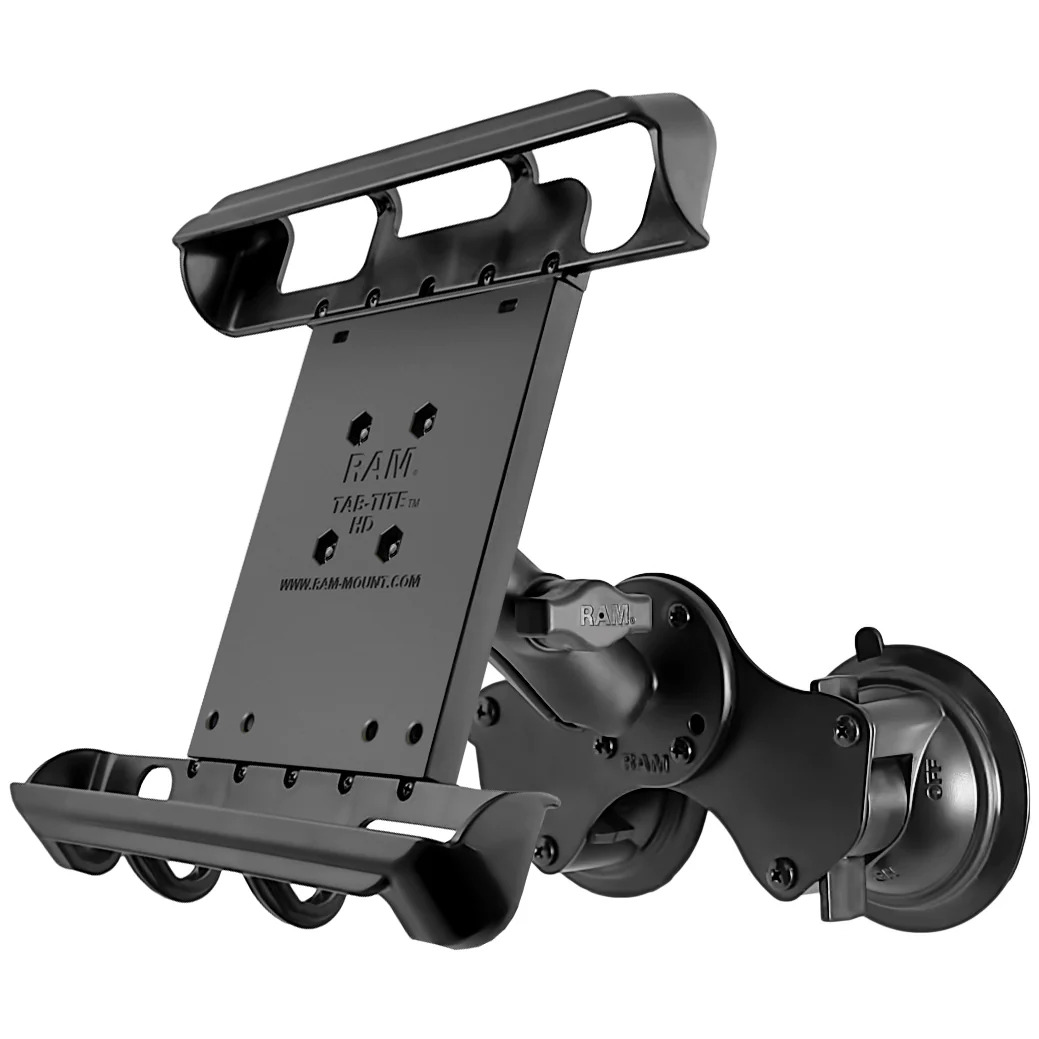

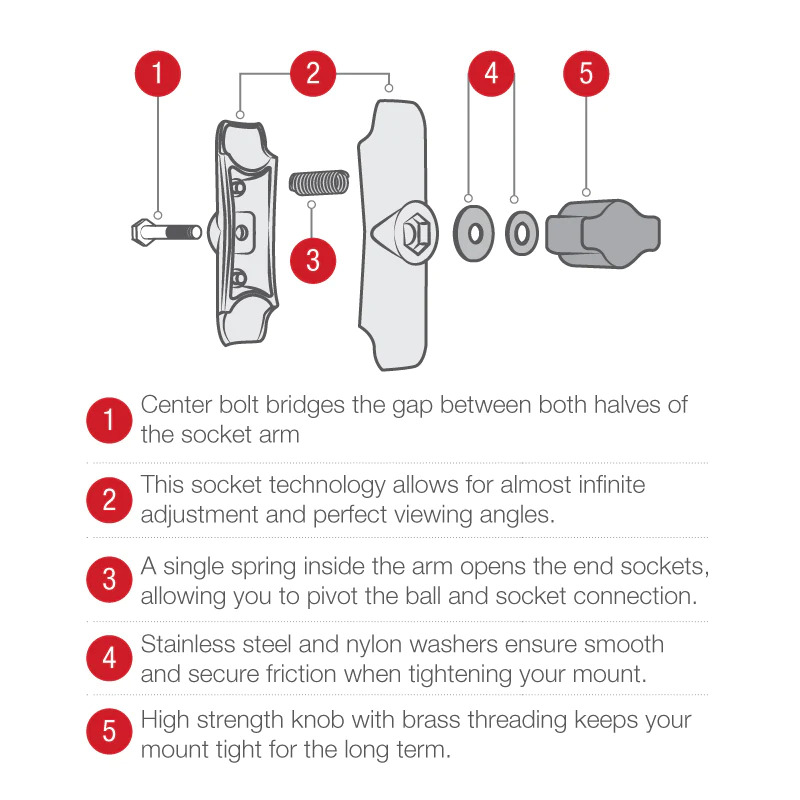

The product consists of a double 3.3" twist lock suction cup base, a double socket arm, a round base adapter and a Tab-Tite™ universal clamping cradle. The 1" diameter patented rubber ball and socket system allows for almost infinite viewing angles. The Tab-Tite™ cradle has a spring loaded back plate and custom support cups for 10" screen tablets with heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go, and the cups at each end still allow access to audio jacks, usb, power, and other ports.

Compatible Tablets:
10" Screen Tablets with OtterBox Defender cases
10" Screen Tablets with Gumdrop Drop Tech cases
10" Screen Tablets with Griffin Technology cases
10" Screen Tablets with Belkin cases
10" Screen Tablets with heavy duty cases
Any other tablets with cases that fit within the dimensions below

  • Cradle Dimensions:
    Height: 9" to 11.5" (22.86cm to 29.21cm)
    Width: 6.38" to 8.31" (16.20cm to 21.10cm)
    Depth: 0.13" to 1.12" (0.33cm to 2.84cm)
  • Support cups contain open slots to accommodate for tablets of various sizes
  • Back plate can support various size support cups
  • Spring loaded tension provides secure support for your tablet
  • Spring loaded cradle allows for quick release of your tablet
  • High strength materials maximize longevity of cradle
  • Full access to all ports
  • Lifetime warranty
  • Material: High Strength Composite & Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

Double Suction Cup Base Assembly Instructions (PDF)

Demonstration Video

Barcode # 793442939648
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Custom Bundle: No

Modified Item: No

Non-Domestic Product: No

Warranty: Lifetime
