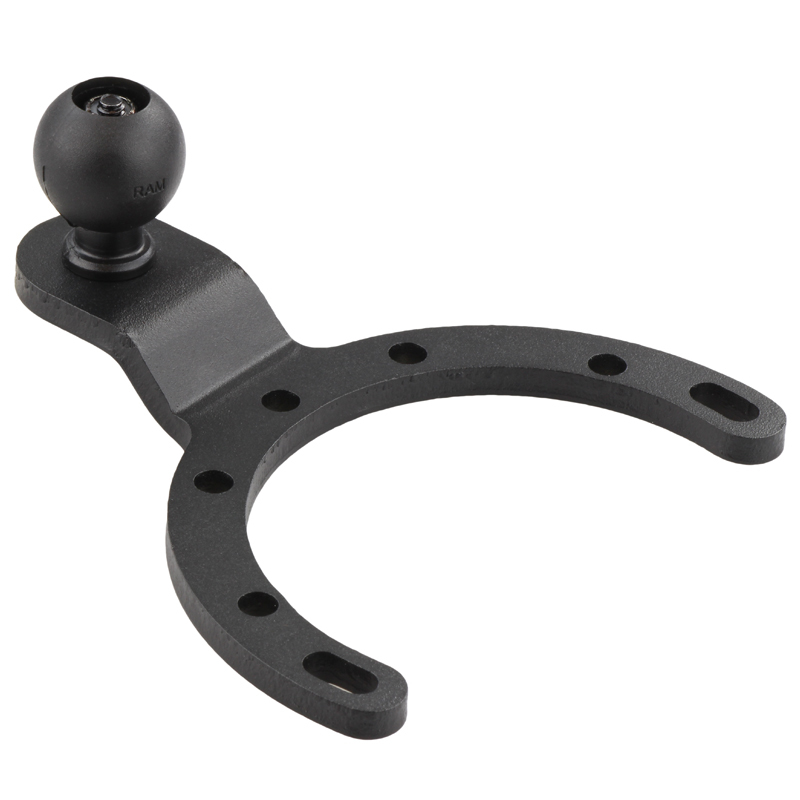

This is a great low-profile way to attach electronic devices to your motorcycle using the RAM Mounts system. It connects directly to the standard petrol tank cap of any of the listed compatible motorcycles below (BMW, Kawasaki). Includes all required fixings.

Will attach to any RAM 1" socket arm (see Related Products below).

Motorcycle Compatibility List (PDF)

  • Included Hardware:
    3 x M6-1.0 x 25MM Socket Head Cap Screw
    4 x M5-0.8 x 45MM Socket Head Cap Screw
    3 x M5-0.8 x 35MM Socket Head Cap Screw
    3 x M5-0.8 x 25MM Socket Head Cap Screw
    3 x M5-0.8 x 20MM Socket Head Cap Screw
    3 x M5-0.8 x 16MM Socket Head Cap Screw
    4 x M5 Stainless Steel Flat Washer
    3 x M6 Stainless Steel Flat Washer

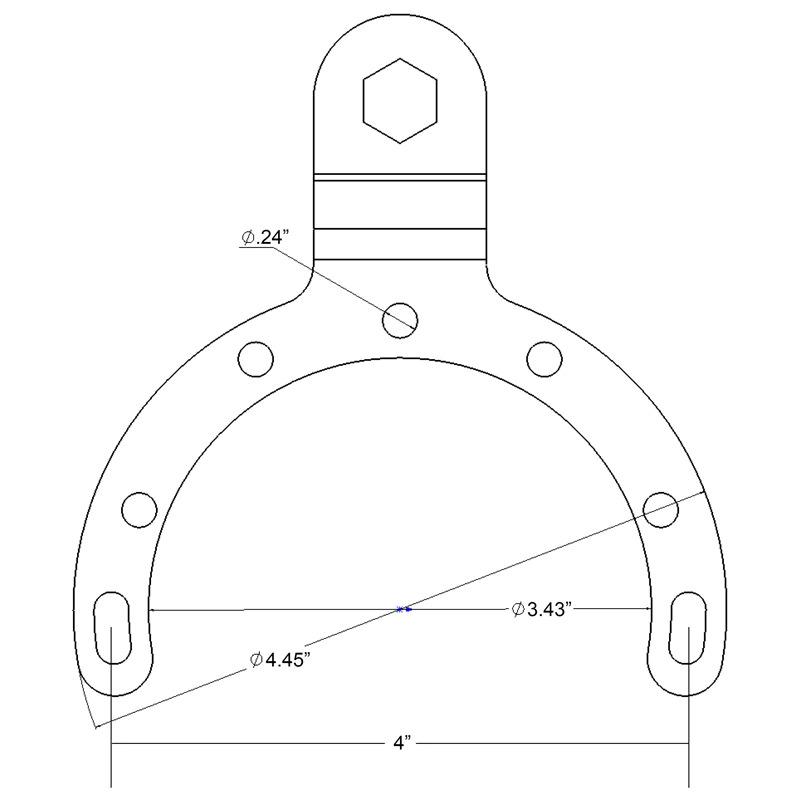

  • Distance between two side holes: 100mm (centre to centre)
  • Distance between top hole and side holes: 75mm (centre to centre)
  • Material: Powder Coated Marine Grade Aluminium & High Strength Composite
  • Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

Demonstration Video

Barcode # 793442951299
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Custom Bundle: No

Modified Item: No

Non-Domestic Product: No

Warranty: Lifetime

large tank base

By: on 8 March 2017
I purchased this for my Ducati Multistrada 1200S 2015 and fits perfectly.. Suppied with screws. Very sturdy and works well with the quick grip phone cradle
