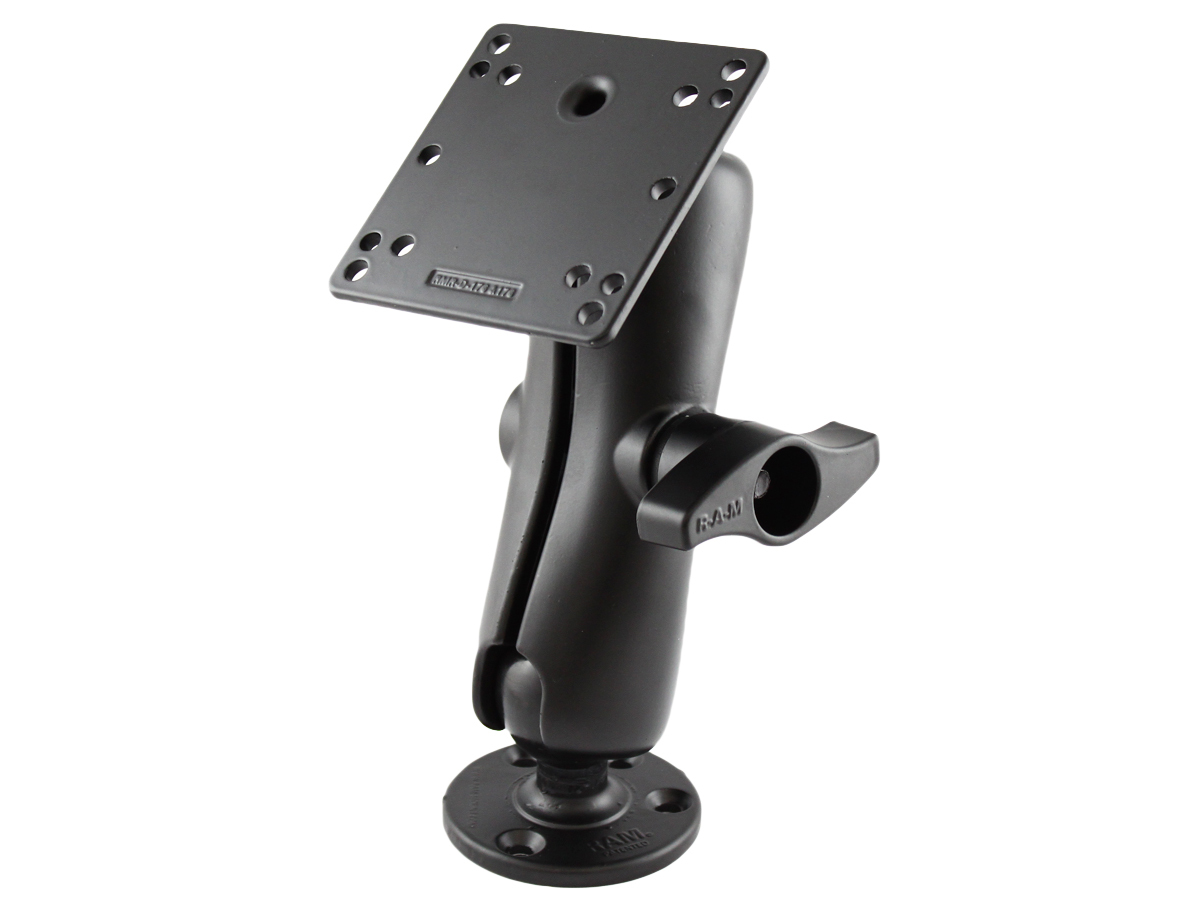

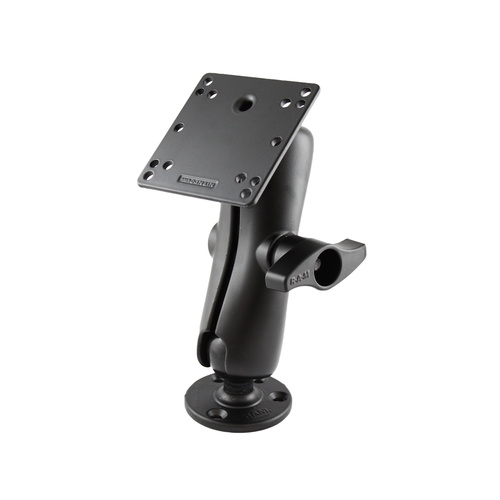

This product consists of a 3.68" (9.35cm) diameter round base, a standard length double socket arm, and a 4.75" (12.06cm) square plate with the VESA hole pattern.

The square plate has 4 x 100mm holes and 4 x 75mm holes in each corner, and the round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

The mount includes the "D" sized 2.25" diameter patented rubber ball and socket system that allows almost unlimited angles.

Plate Hole Patterns (PDF)

Specifications:

  • Weight Capacity: Up to 15 lbs (6.8kg)
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 2.25" Rubber Ball "D" Size

Note: The "U" in the part number reflects product packaged in poly bag.

Demonstration Video

SKU RAM-D-101U-246
Barcode # 793442003875
Brand RAM Mounts
