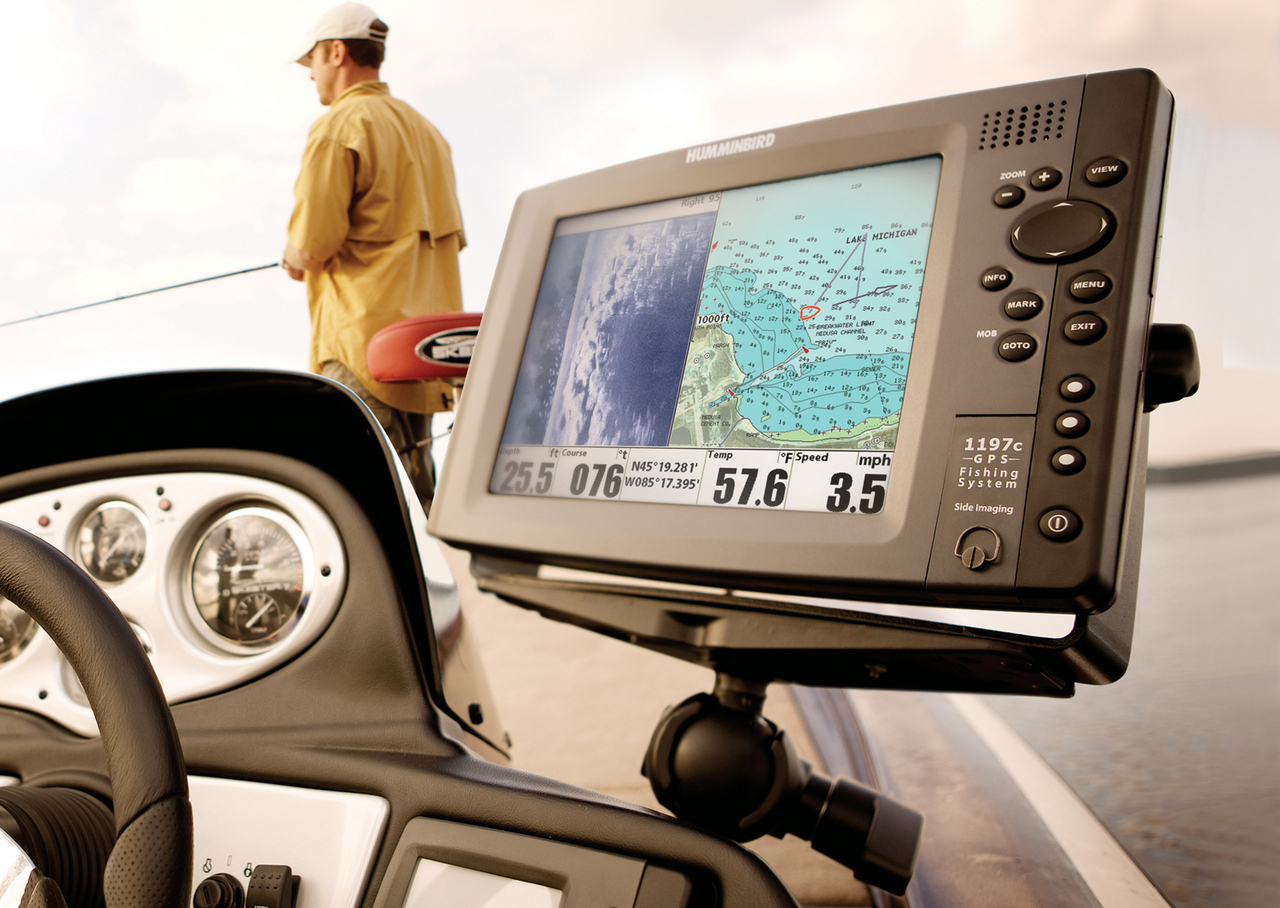

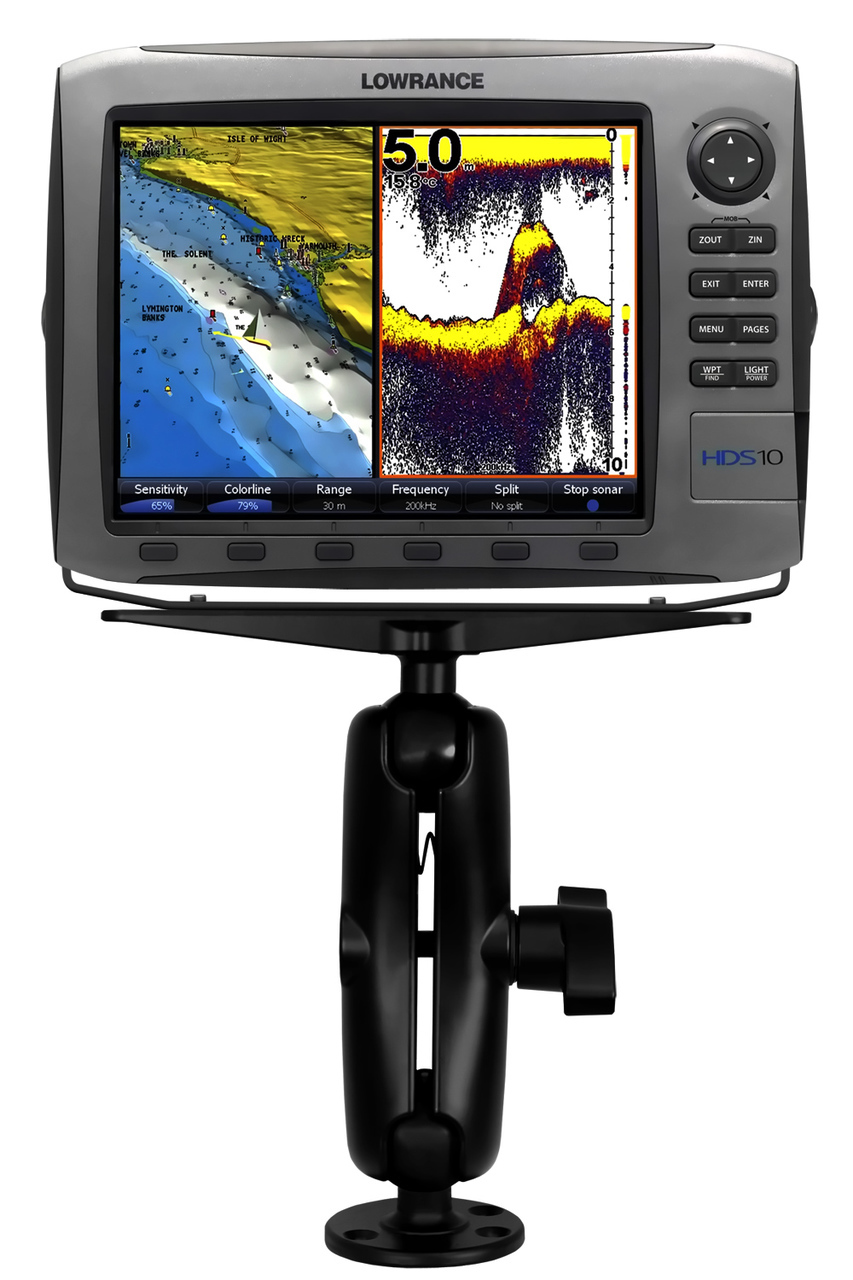

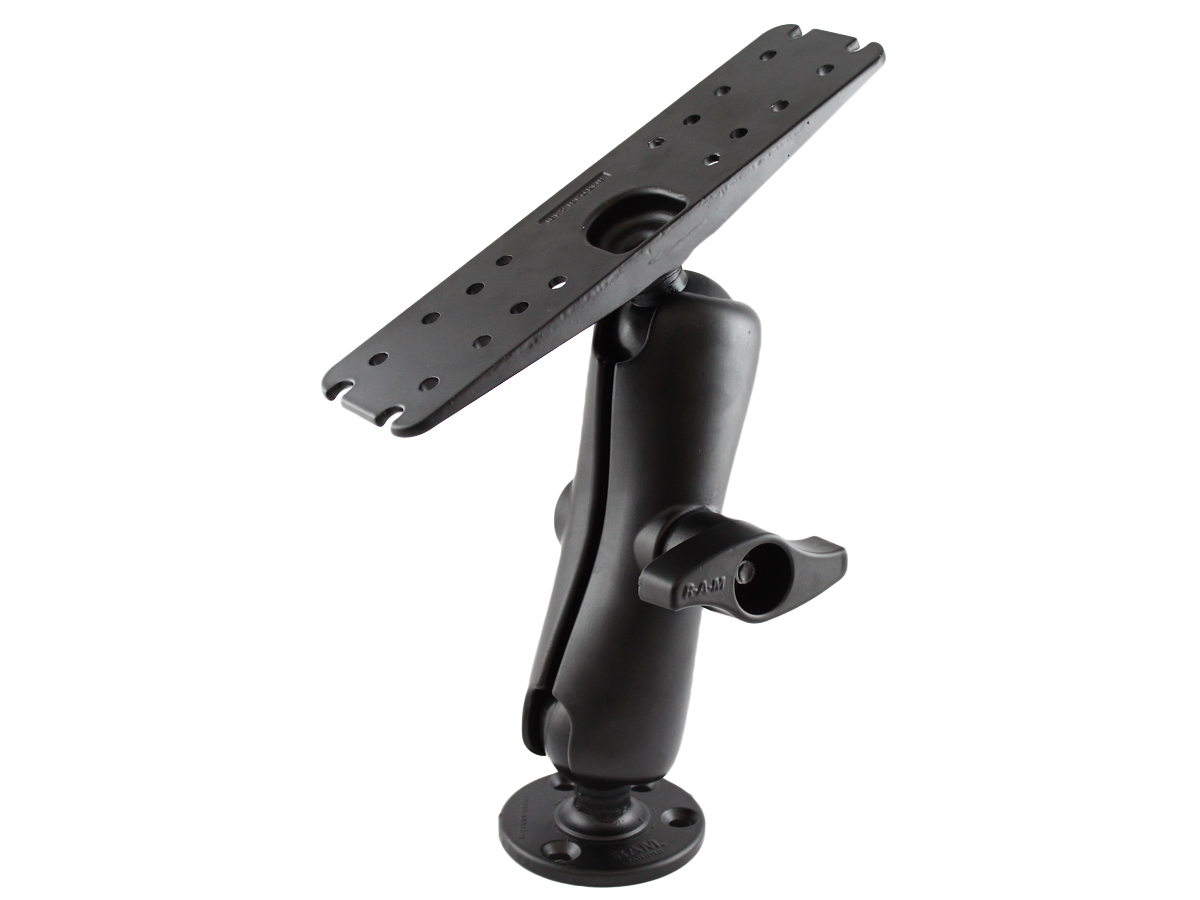

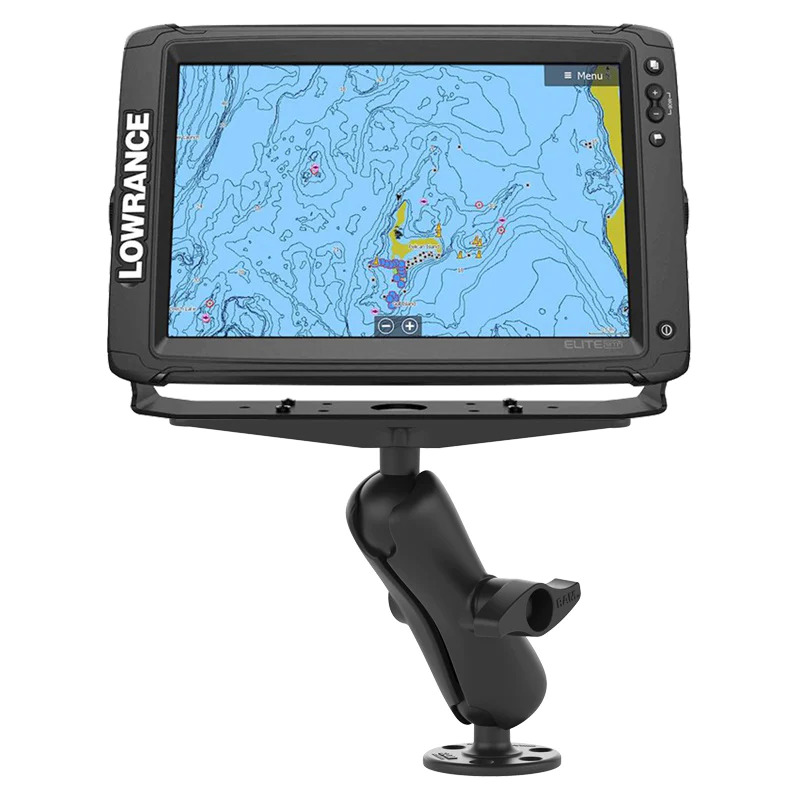

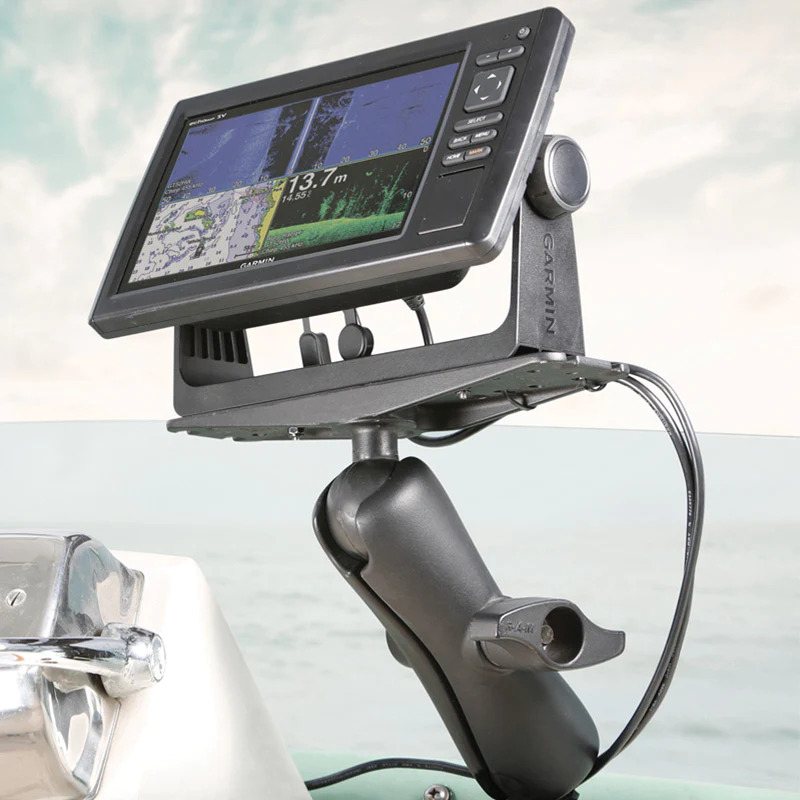

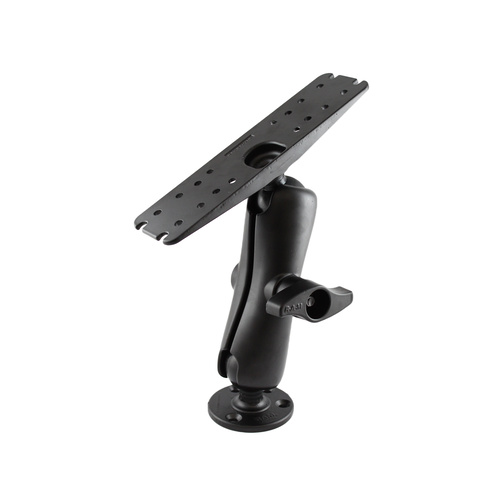

This is a heavy duty mount for many marine electronic devices. It consists of a 3.68" diameter round base, standard length double socket arm, and an 11" x 3" (27.94cm x 7.62cm) rectangular plate.

The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees, and the rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Compatible Devices:
Garmin Fishfinders and GPS Chartplotters
Humminbird Fishfinders and GPS Chartplotters
Lowrance Fishfinders and GPS Chartplotters
Raymarine Fishfinders and GPS Chartplotters

Plate Hole Patterns (PDF)

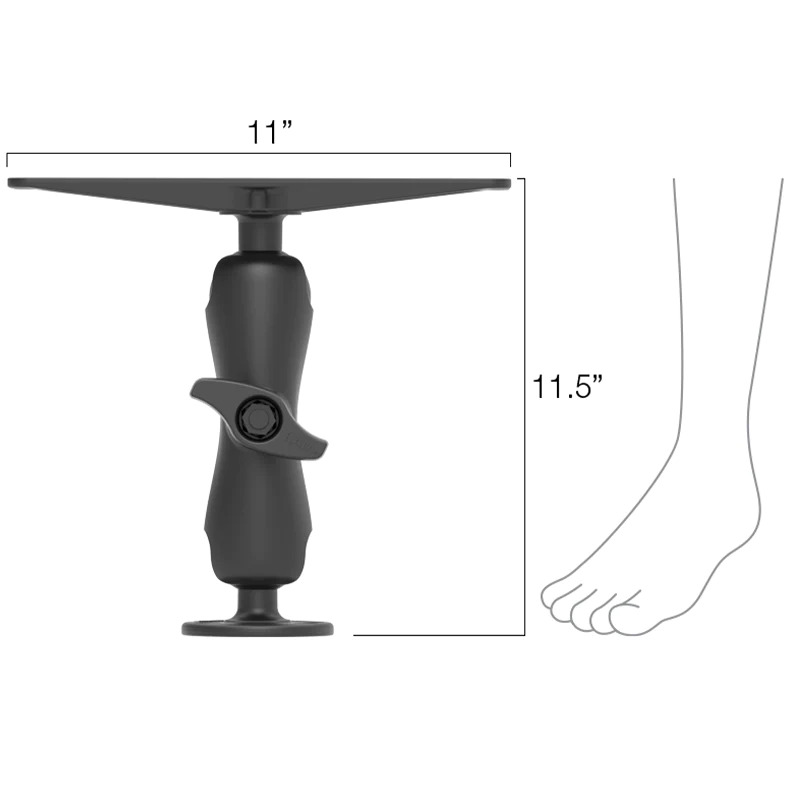

• Overall Length: 11.5" (29.21cm)
• Weight Capacity: up to 6.8kg
• Material: Powder Coated Marine Grade Aluminium
• Ball Size: 2.25" Rubber "D" Ball Size

Note: The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Availability:

RAM Mounts supply is pretty good in Australia, but they have thousands of parts so we can't stock them all on our shelves. If our site shows this item as in stock in our warehouse (see above), great! It will ship immediately from our warehouse. If it shows as Pre-Order, we get fortnightly shipments from RAM Mounts and our site should show if it's in stock in Australia.

• If in stock in Australia we can have it in about a week or less
• If it's not in stock in Australia, unfortunately the ETA can be quite long, as RAM Mounts in the USA have a manufacturing lead time of 6-8 weeks. But if you'd like to contact us we can find out a more accurate ETA for you
