The ultimate in hard cases for your R 1300 GS!

SW-MOTECH has developed this aluminium case system specifically for the BMW R 1300 GS, using extremely durable, bike-specific PRO side carriers. Designed for serious adventure and touring use, this complete luggage solution delivers outstanding stability, weather protection, and ease of handling.

Test Winner: MOTORRAD Magazine, Issue 05/2020
Test result: VERY GOOD

The TRAX ADV aluminium cases feel at home on any stretch of road. Embossed patterns reinforce the 1.5 mm thick welded aluminium walls for excellent rigidity, while the completely removable lids with anodised aluminium carry handles and quick-release fasteners make loading and unloading effortless. Bevelled side edges provide increased ground clearance when cornering.

This complete system includes everything required for touring: two waterproof TRAX ADV side cases, two detachable PRO side carriers, adapter kits, lock set, lid limiters, and integrated anti-theft protection—all offered as a perfectly matched package.

Both the carrier system and case dimensions are tailored precisely to the BMW R 1300 GS rear profile and exhaust layout. The TRAX ADV system was engineered with a focus on stability, water and dust impermeability, and user-friendly operation. Whether on-road, off-road, or long-distance touring, these premium aluminium cases are built to perform.

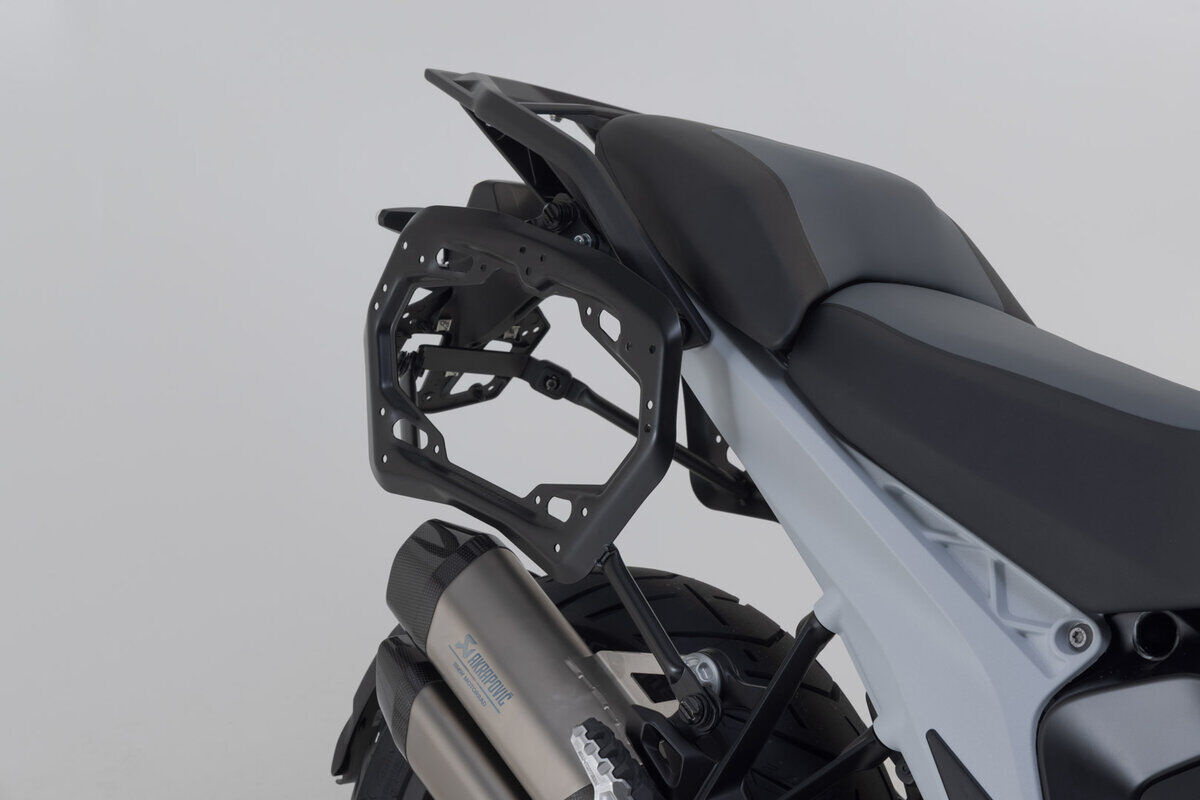

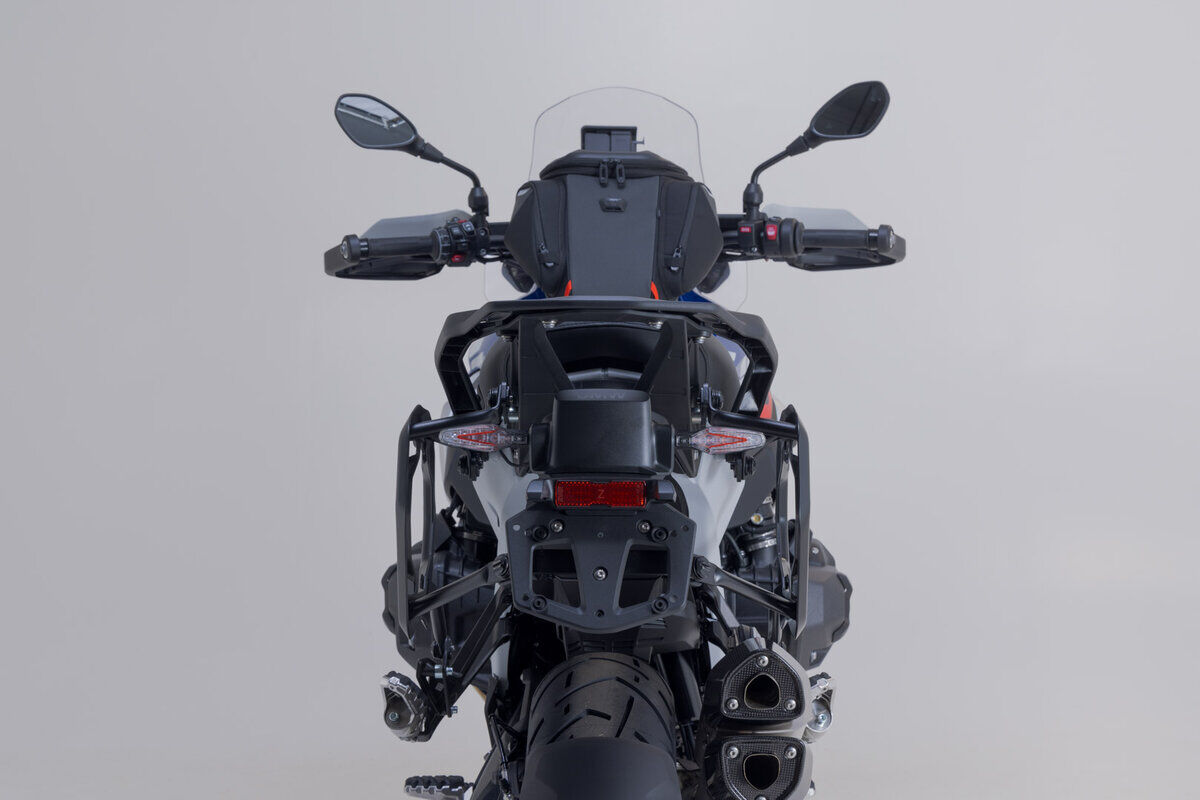

PRO Side Carrier

• Extremely robust design using 2.5 mm thick steel
• Optimised shape for maximum durability
• Bike-specific fit, mounted close to the motorcycle
• Fully removable with heavy-duty quick-release fasteners
• Optional anti-theft protection available
• Quick-release fasteners can be replaced with permanent M8 fittings if desired
• Multiple functional mounting points
• Installs using original mounting points
• Powder-coated finish for excellent corrosion protection
• Secure mounting for TRAX, DUSC, AERO, and SysBags WP L (with adapter)

PRO Side Carrier Details

• Material: Steel
• Surface: Powder coated
• Colour: Black
• Total weight: approx. 5.0 kg (11.1 lb)
• Installed width: 45.5 cm (17.9 in)

Adapter Kit for PRO Side Carrier

• Allows mounting of TRAX and NANUK side cases
• Attaches to existing PRO side carrier mounting points
• Suitable for left and right sides

Adapter Kit Details

• Colour: Silver
• Total weight: approx. 0.3 kg (0.7 lb)

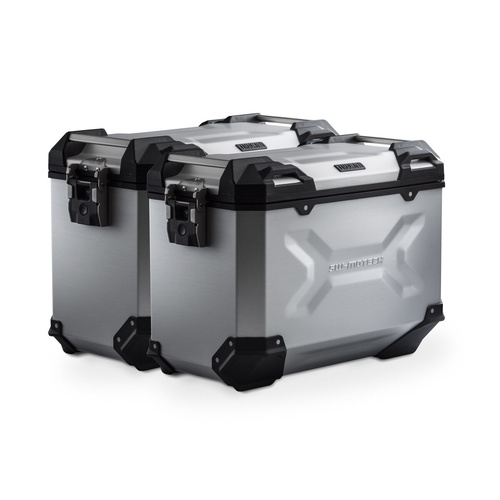

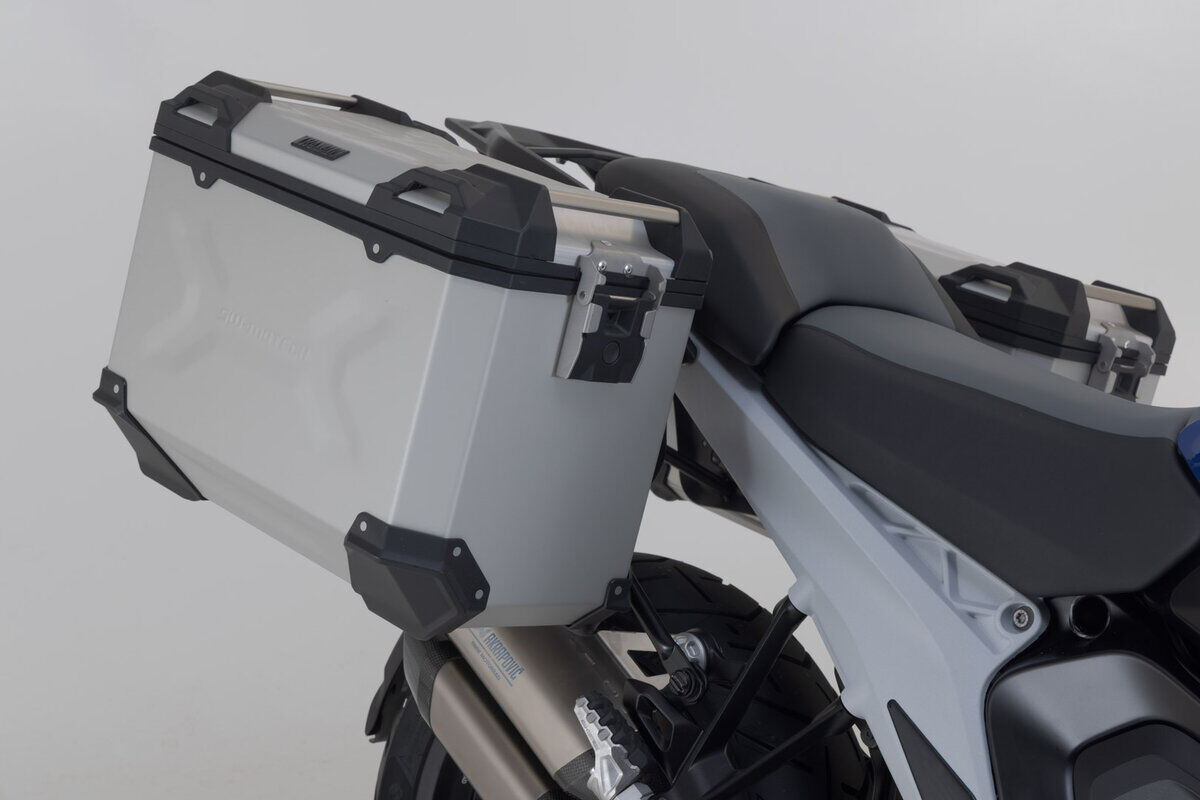

TRAX ADV L Aluminium Side Case

• 1.5 mm thick aluminium construction with anodised finish
• Watertight and dustproof design
• Embossed panels and welded edges for superior rigidity
• Large chamfered edges for maximum cornering clearance
• Glass fibre reinforced plastic corner caps for impact protection
• Robot-guided welding and self-piercing rivets prevent moisture ingress

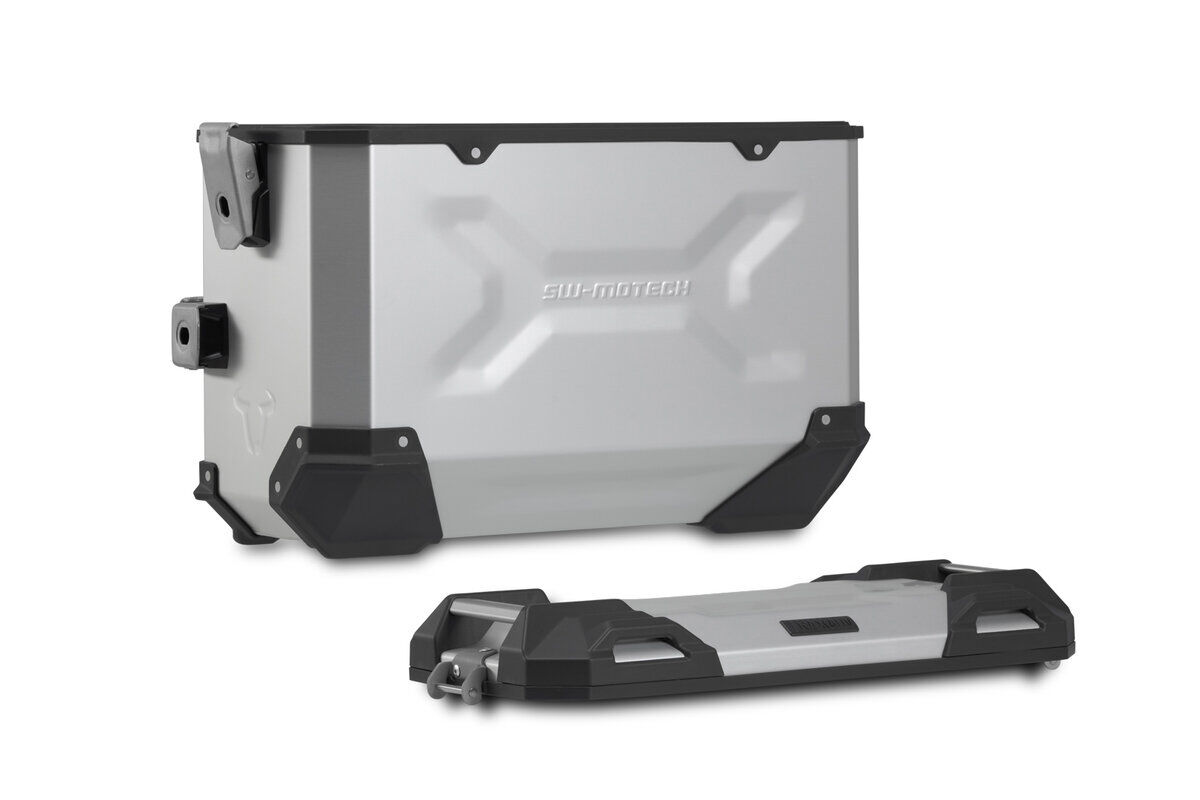

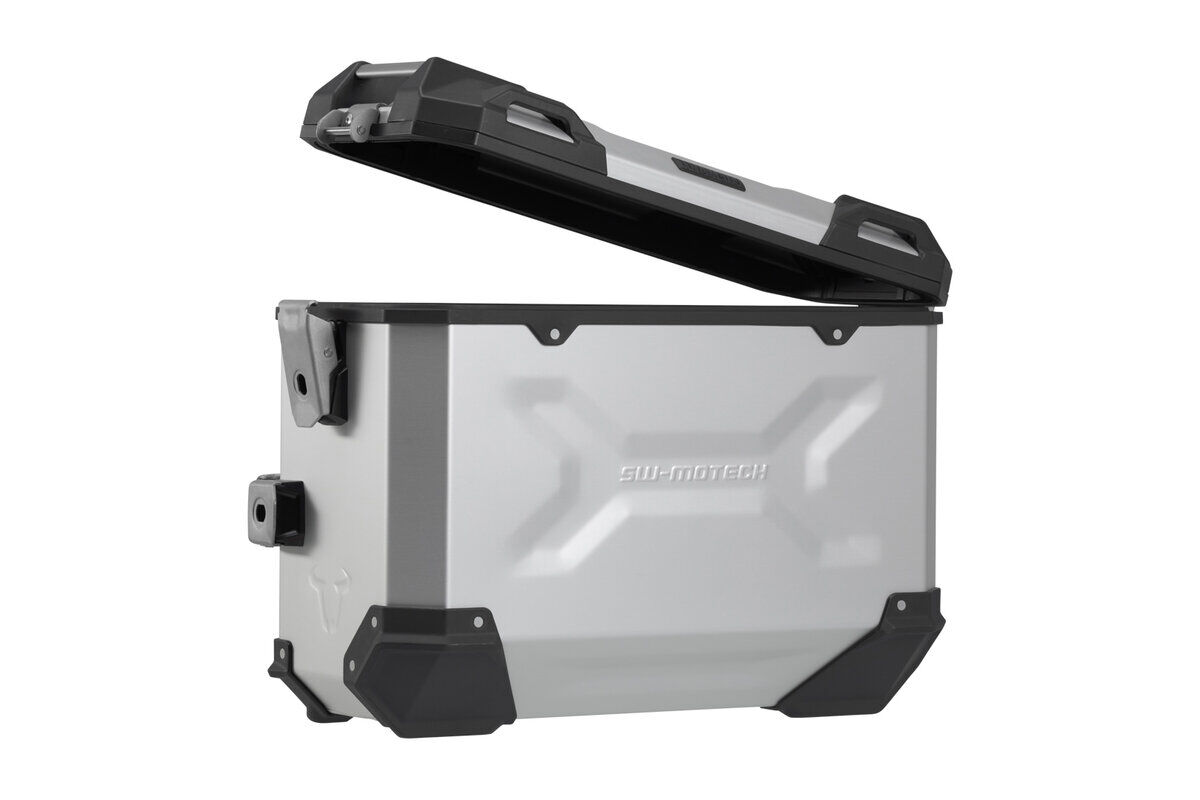

• Fully removable lid with quick-release fasteners
• Four integrated tie-down points on lid
• Stainless steel hinges and anodised aluminium handles
• Lid limiters for stability when carrying additional gear
• Replaceable lid gasket
• Pressure-equalising membrane for easy opening at altitude or temperature change
• Compatible with PRO and EVO carriers (adapters sold separately)

TRAX ADV L Case Details

• Material: Aluminium
• Wall thickness: 1.5 mm
• Surface: Anodised
• Colour: Silver
• Size: 49 × 28 × 37 cm
• Weight: approx. 5.4 kg (11.9 lb) per case
• Volume: 45 litres per case

TRAX Lock Set with PRO Anti-Theft Protection

• 9 matching locks
• One key for all locks
• Compatible with TRAX ADV and TRAX ION side and top cases
• Integrated anti-theft protection for PRO side carriers

Multi-Tool Keychain

• Quick-release fastener opener for PRO and EVO carriers
• Hex keys: 8, 10, 12, 13, and 14 mm
• Bottle opener
• Laser-etched SW-MOTECH logo

Included in Delivery

• 2 × TRAX ADV L aluminium side cases (45 L each)
• 2 × PRO side carriers
• 2 × Adapter kits for PRO side carriers
• 1 × TRAX lock set with PRO anti-theft protection
• 1 × Multi-tool keychain attachment
• 4 × Lid limiters
• 2 × Storage bags
• Mounting instructions
• Mounting hardware

System Specifications

• Total material: Aluminium
• Colour: Silver
• Total weight: approx. 20.7 kg (45.5 lb)
• Total capacity: 90 litres

Installation Instructions (PDF)
