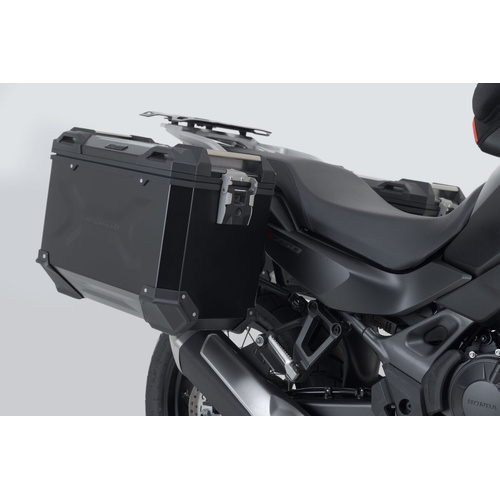

SW-MOTECH TRAX ADV Aluminium Case System - Honda XL750 Transalp (2022-2024)

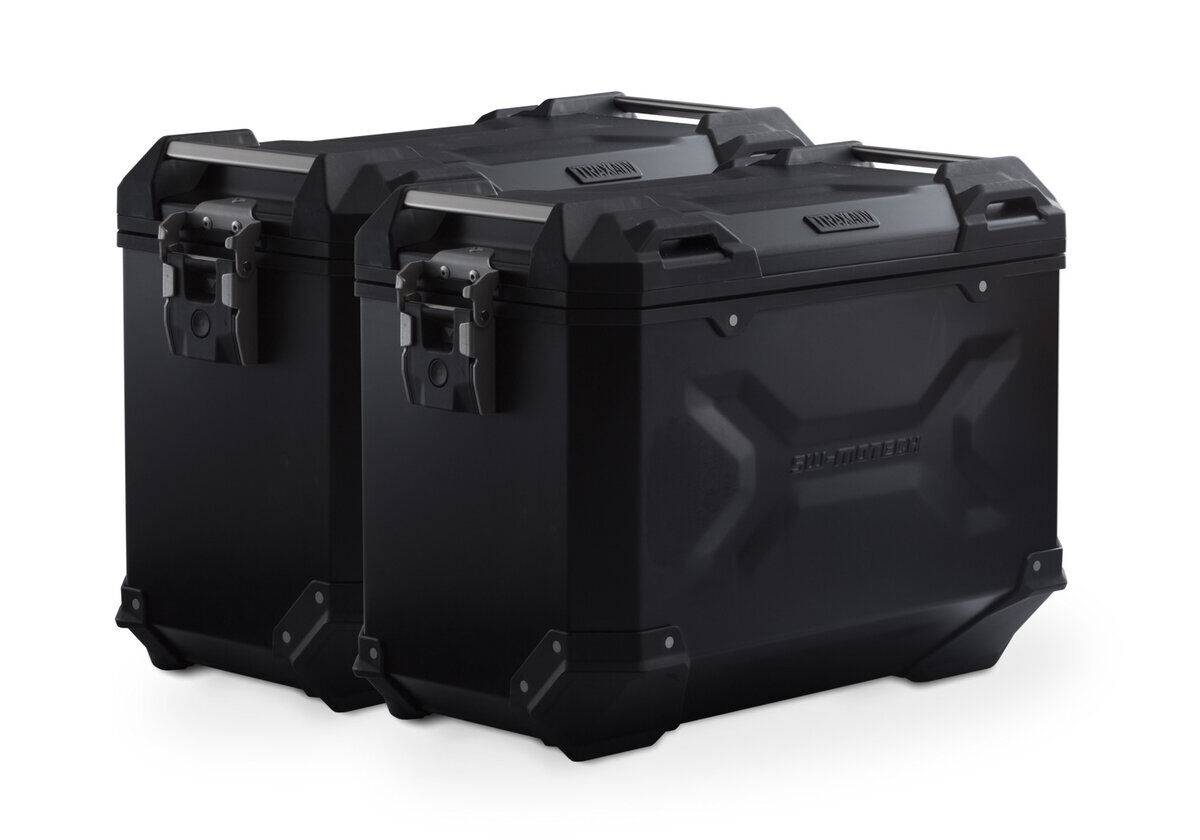

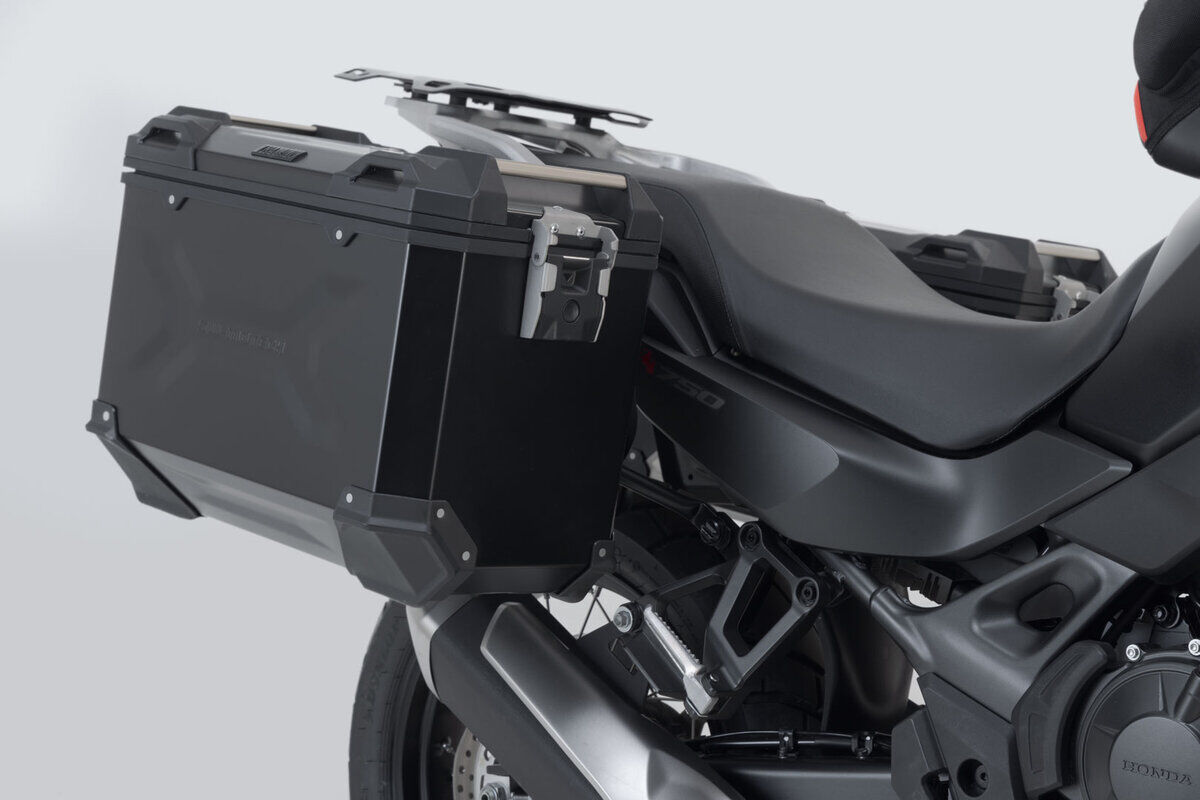

Equip your Honda XL750 Transalp for serious adventure and touring with the SW-MOTECH TRAX ADV Aluminium Case System. This complete, model-specific luggage package combines two rugged 45-litre TRAX ADV aluminium side cases with removable PRO side carriers, adapters, matching locks and the mounting components required for installation.

With a generous 90 litres of combined storage capacity, the TRAX ADV system is designed for everything from weekend touring to extended adventure travel. The cases are manufactured from robust 1.5 mm aluminium, with welded construction, reinforced corners and embossed surfaces providing excellent strength while maintaining the premium finish expected from SW-MOTECH.

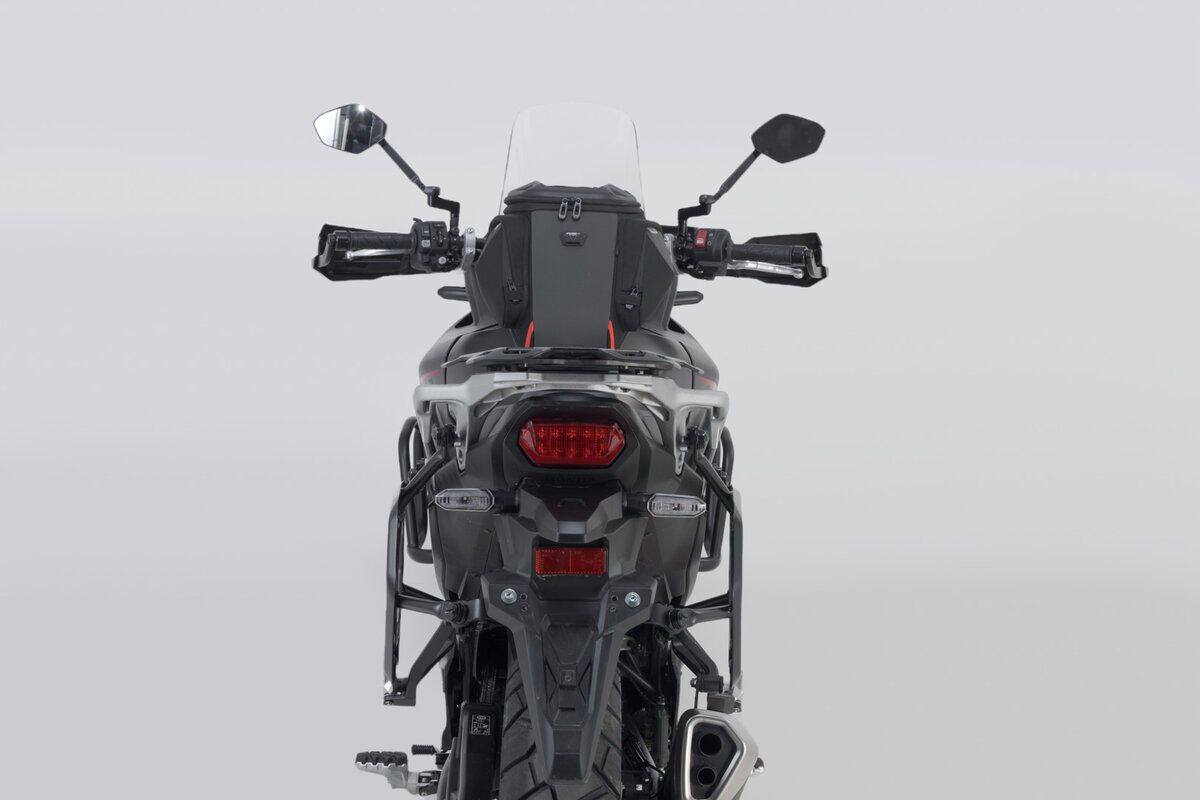

The included bike-specific PRO Side Carriers are engineered to suit the rear profile and exhaust layout of the Transalp. Constructed from 2.5 mm powder-coated steel, they provide a secure luggage platform while SW-MOTECH's quick-release system allows the carriers to be removed when they are not required.

TRAX ADV Aluminium Case Features

• Two 45-litre TRAX ADV aluminium side cases included.
• Generous 90-litre combined luggage capacity.
• Strong 1.5 mm aluminium construction.
• Watertight design helps protect luggage against rain and demanding riding conditions.
• Black powder-coated finish provides protection against oxidation and abrasion while remaining easy to clean.
• Embossed surfaces and welded edges provide additional structural rigidity.
• Robot-guided welding and self-piercing riveting help prevent moisture ingress.
• Large chamfered lower edges provide additional ground clearance when cornering.
• Glass fibre-reinforced plastic corner protectors provide additional protection in vulnerable areas.

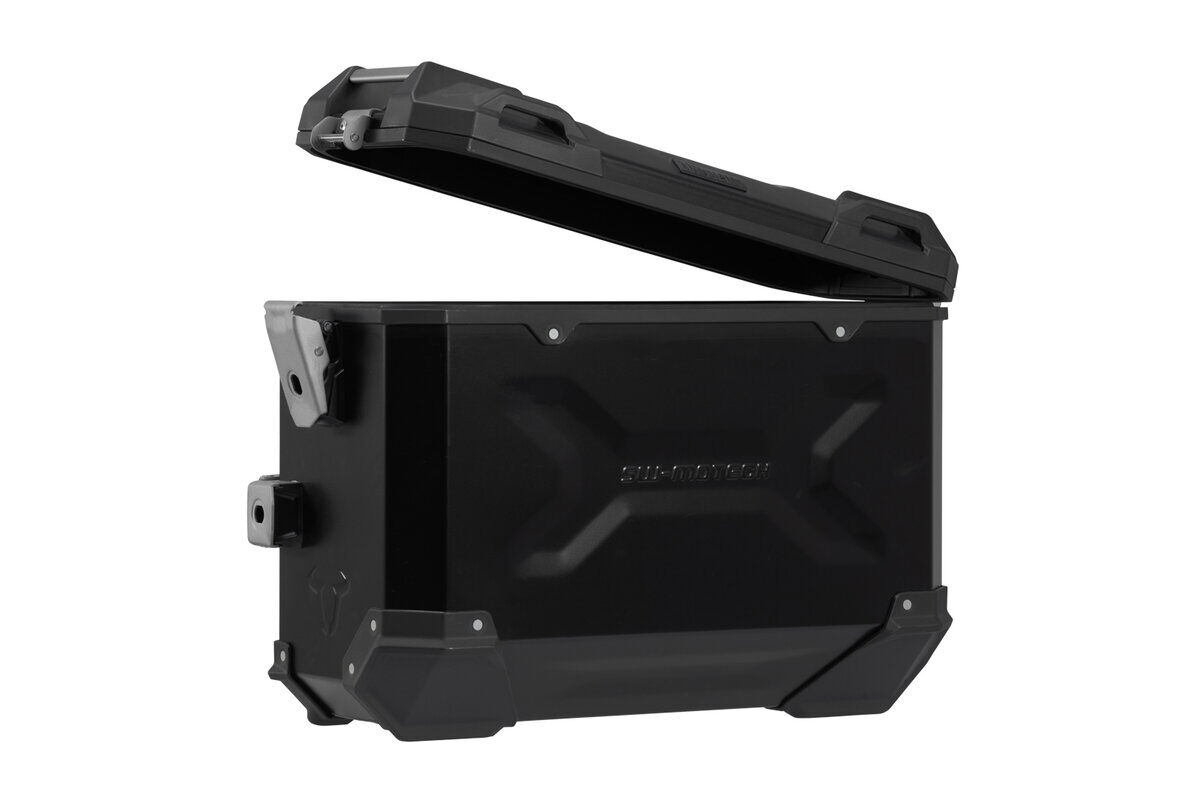

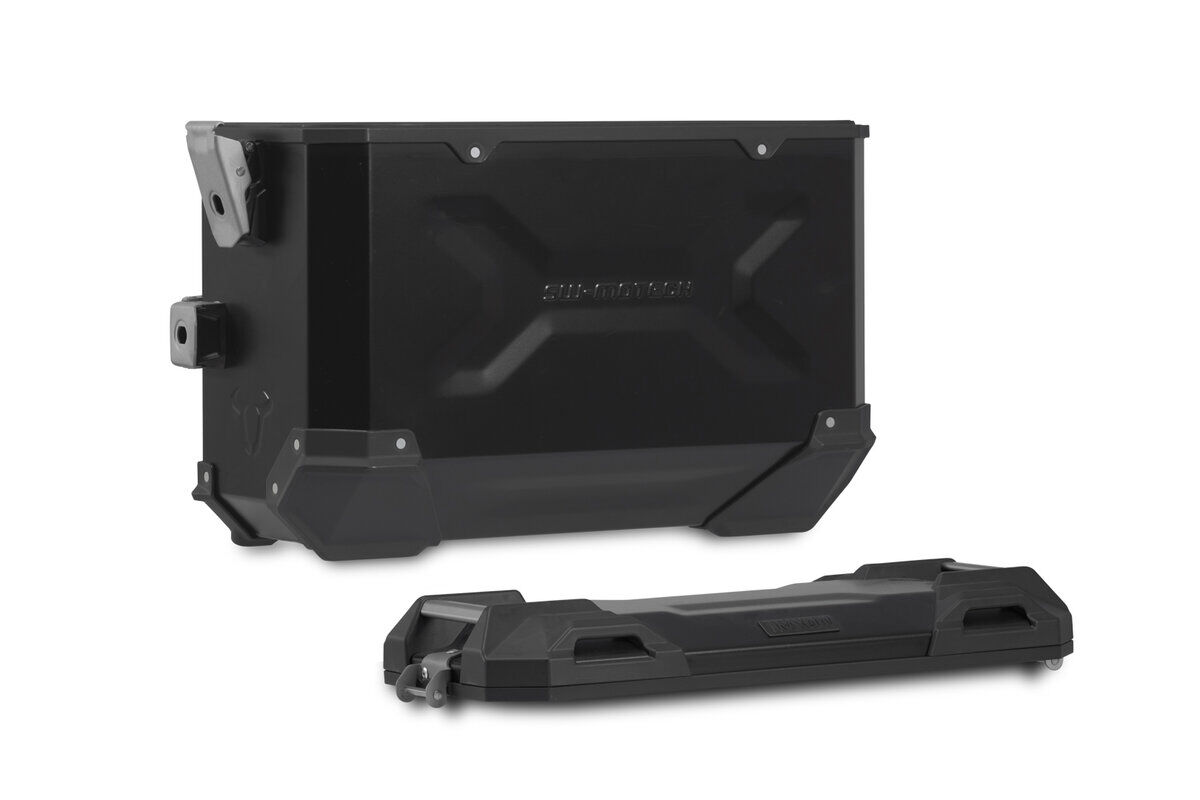

• Completely removable lids simplify loading and unloading, even when the cases are fitted to the motorcycle.
• Quick-release lid fasteners provide convenient access.
• Four large tie-down points integrated into each lid for securing additional luggage such as tents or accessory bags.
• Stainless steel hinges provide excellent durability.
• Anodised aluminium carrying handles.
• Replaceable lid seals.
• Integrated pressure membrane helps make the lids easier to open following significant temperature or pressure changes.
• Pre-installed retaining rails provide secure attachment to the luggage carriers.

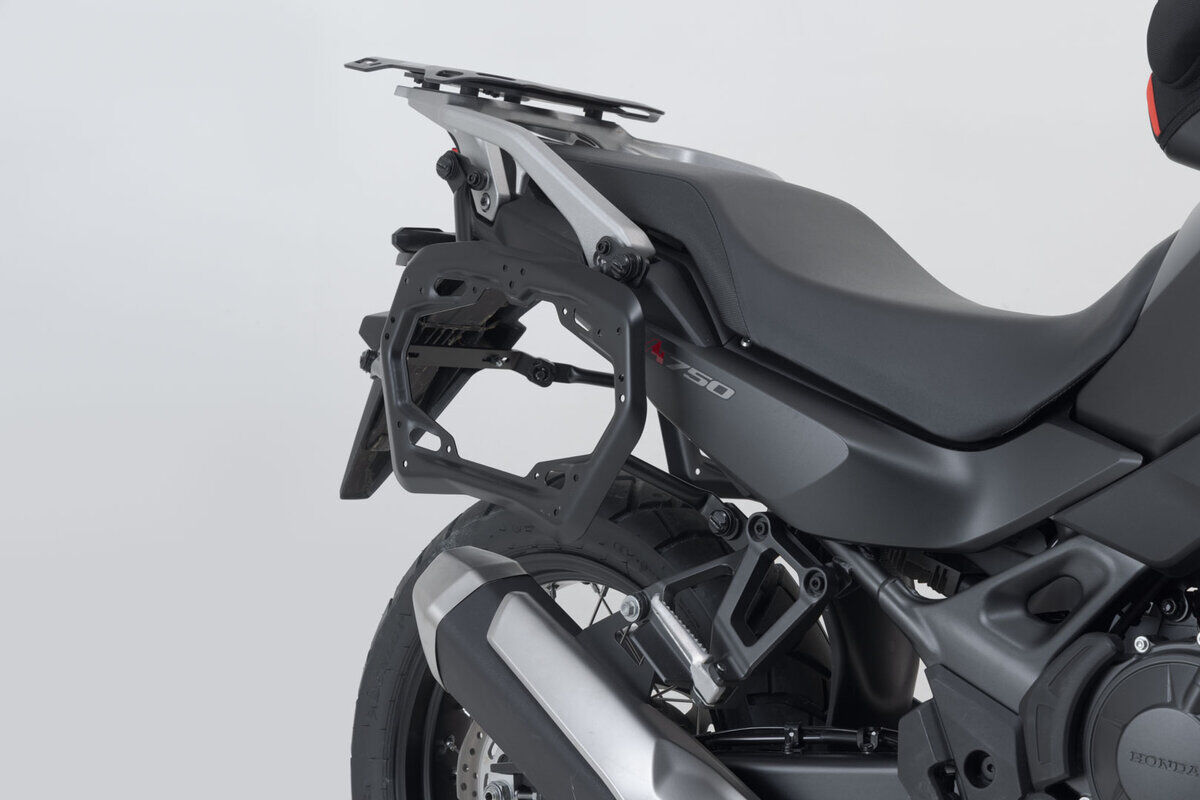

PRO Side Carrier Features

• Bike-specific design for the Honda XL750 Transalp.
• Manufactured from strong 2.5 mm steel.
• Optimised shape provides excellent strength while keeping the carriers close to the motorcycle.
• Durable black powder-coated finish provides excellent corrosion resistance.
• Attaches to the motorcycle's original mounting points.
• Fully removable using SW-MOTECH's robust quick-release fasteners.
• Quick-release fasteners can be replaced with standard M8 hardware if permanent mounting is preferred.
• Multiple functional mounting points provide compatibility with a variety of SW-MOTECH luggage systems when used with the appropriate adapters.
• Compatible with TRAX, DUSC, AERO and SysBag WP L luggage when correctly configured.

TRAX Lock Set & Anti-Theft Protection

The complete system includes a nine-piece matching TRAX lock set, allowing the luggage and PRO Side Carrier anti-theft devices to operate using the same key.

• 9 matching locks included.
• One-key convenience across the luggage system.
• Includes anti-theft protection for the PRO Side Carriers.
• Compatible with TRAX ADV and TRAX ION luggage.

TRAX ADV Case Specifications

• Material: Aluminium
• Material Thickness: 1.5 mm
• Finish: Powder-Coated
• Colour: Black
• Dimensions per Case: 49 x 28 x 37 cm
• Capacity per Case: 45 Litres
• Combined Capacity: 90 Litres
• Approximate Weight per Case: 5.4 kg

PRO Side Carrier Specifications

• Material: 2.5 mm Steel
• Finish: Powder-Coated
• Colour: Black
• Approximate Carrier Set Weight: 4.7 kg
• Installed Carrier Width: Approximately 50 cm

Multi-Tool Key Chain

A handy SW-MOTECH stainless steel multi-tool is also included with the system. Designed to attach to your key chain, it provides several useful functions for travelling motorcyclists.

• Quick-release fastener opener for PRO and EVO Side Carriers.
• 14 mm hex key suitable for many motorcycle mirrors.
• Additional 8, 10, 12 and 13 mm hex key sizes.
• Integrated bottle opener.
• Key chain attachment point.
• Brushed stainless steel construction with laser-etched SW-MOTECH branding.

Complete System Specifications

• Total Luggage Capacity: 90 Litres
• Total System Weight: Approximately 20.8 kg
• Case Material: Aluminium
• Case Colour: Black

Package Includes

• 1 x TRAX ADV L Aluminium Case - Left - 45 Litres - Black.
• 1 x TRAX ADV L Aluminium Case - Right - 45 Litres - Black.
• 1 x PRO Side Carrier - Left.
• 1 x PRO Side Carrier - Right.

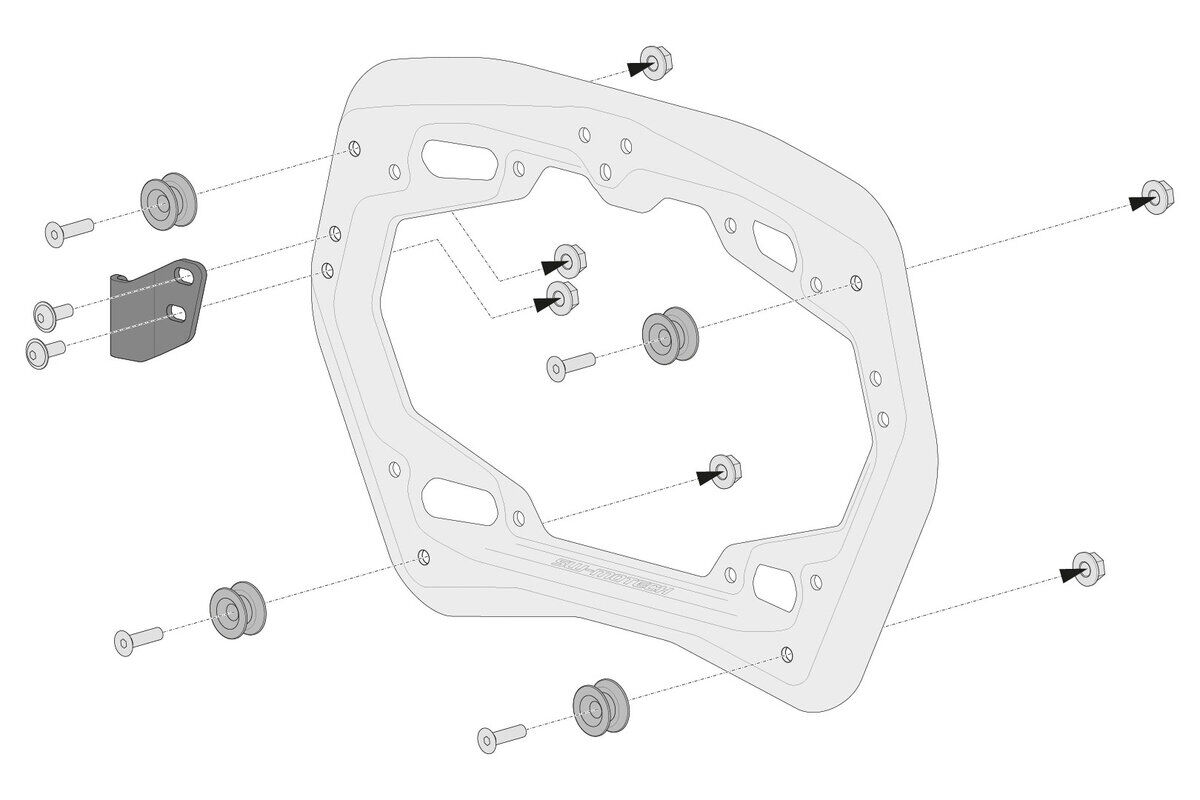

• 2 x TRAX adapter kits for PRO Side Carriers.
• 1 x TRAX lock set with PRO Side Carrier anti-theft protection.
• 1 x SW-MOTECH multi-tool key chain attachment.
• 4 x Lid limiters.
• 2 x Storage bags.
• Required mounting hardware.
• Installation instructions.

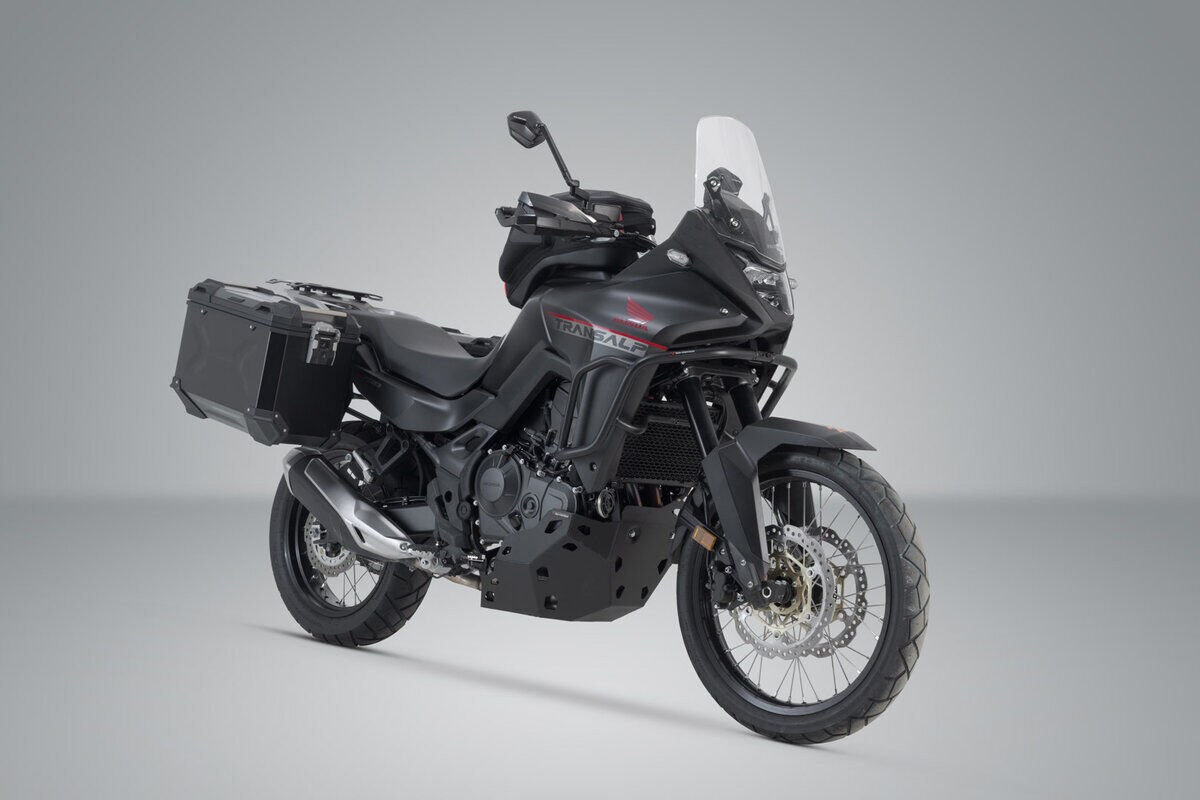

Strong, secure and built for demanding motorcycle travel, the SW-MOTECH TRAX ADV Aluminium Case System gives the Honda XL750 Transalp a substantial 90 litres of premium adventure-ready luggage capacity in a complete model-specific package.

Installation Instructions

Bike Fitment:

Honda XL750 Transalp (2022 - 2024)
