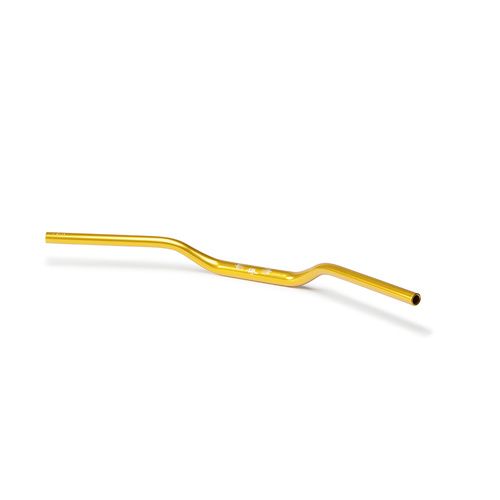

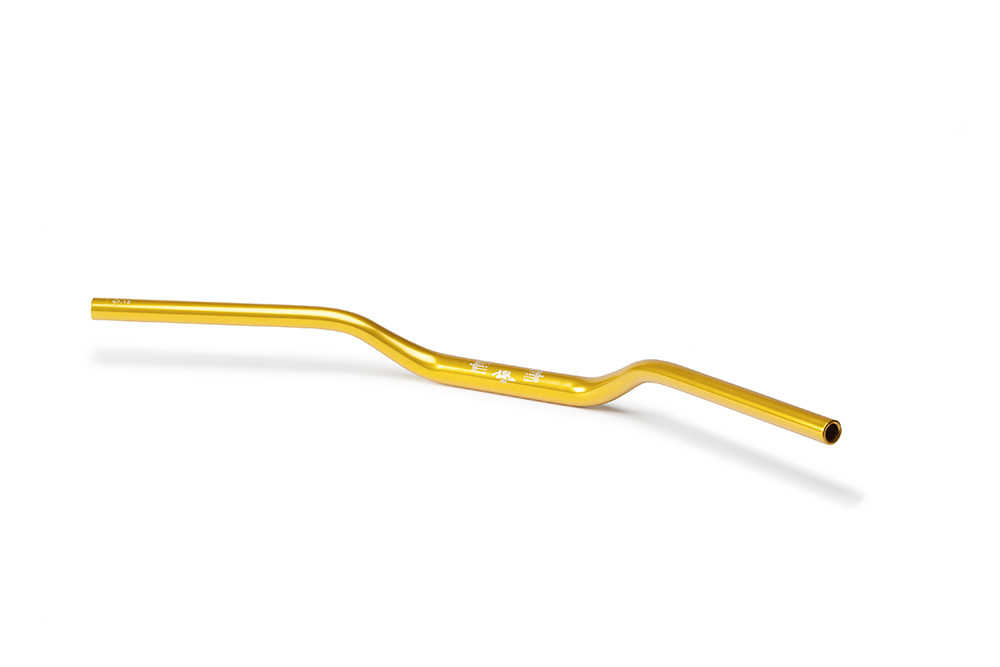

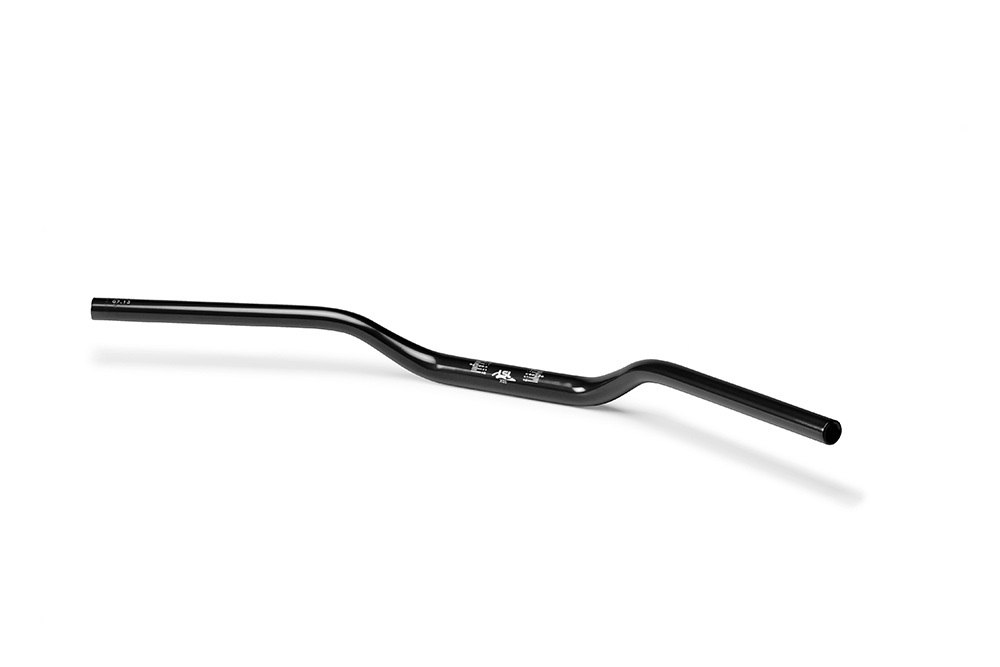

These Fat Bars from LSL have a 1 1/8" diameter in the area with the highest loading, and offer twice the bending resistance of a standard 22mm handlebar. They are made out of high-strength alloy 2014 T6, with less flexibility and tensile strength in all situations.

Material: Aluminium 2014 T06, Anodised

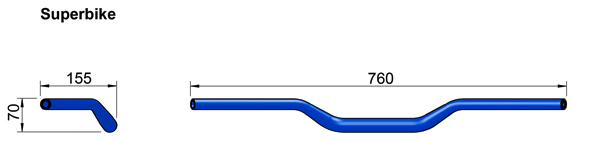

Diameter: Clamping area: 28.5mm / Bar end outer: 22.2mm / Bar end inner: 14mm
Control Distance (distance from end of bars to first bend): Approximately 22cm
Clamping Area Distance (length of clamping area): Approximately 16cm
(Please note that Control Distance and Clamping Area Distance are estimates only, as it can be difficult to determine exactly where the bar starts to bend)

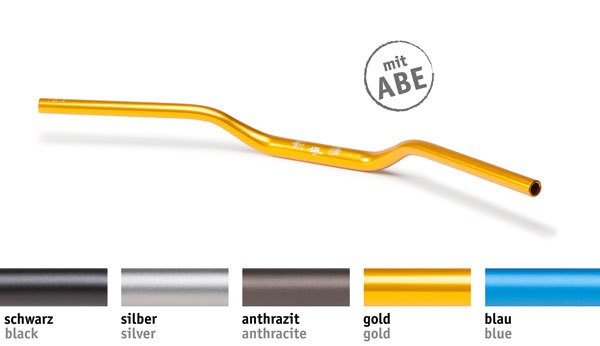

Available in black, blue, gold, anthracite, and silver.

SKU 128AX01
Barcode # 4251342928095
Brand LSL
Country Of Manufacture Germany
Product Specifications

Accessory Type: Aftermarket Branded

Product Type: Handlebars

Custom Bundle: No

Non-Domestic Product: No

Modified Item: No

LSL handle bar

By: on 13 October 2018
I found the right fat handle bar for my daughters Honda Vtr250 with the right bends and length as to cut them down and swap over without changing the cables including 20mm risers, I received them when they said I would. Thanks Hurtle Gear Good to do business with you.

XJR1300 handle bar replacement

By: on 20 April 2018
Bought these to replace the poorly fitted Protaper bars on my XJR1300.They were too far forward causing arm aches and didn't have enough clamping area to mount all the controls correctly. Fitting was straight forward as I'm a mechanic and watched YouTube videos on how to mark and drill the location holes for the controls. Went for an 1 hour ride after fitting and didn't get any arm aches.The controls and mirrors are much better positioned. Still feel a little far forward but an improvement over the previous bars.May fit some bar risers and tweak the bars to see if i can make an improvement. I am overall happy with the end result. (PS.I didn't buy the naked bars as I felt that the extra width and height may have caused issues with enough hose and cable slack)

Write a product review
