HIGHSIDER pro Superbike Flat XN1 Tapered Aluminium Handlebar

The HIGHSIDER pro Superbike Flat XN1 is a tapered aluminium handlebar designed to provide a sporty, compact riding position with direct and precise steering feedback. At 738 mm wide with a 60 mm rise, it offers an agile feel for riders looking for excellent control and a purposeful superbike-style cockpit.

Manufactured from a high-strength, heat-treated aluminium alloy, the XN1 combines excellent bending stiffness with high fracture resistance. Its pearl-blasted and black anodised surface provides a premium finish, while the throttle grip area is polished for a clean and precise installation.

Tapered Construction

The handlebar features a 28.6 mm (1-1/8") diameter through the central clamping section before tapering to a standard 22.2 mm (7/8") diameter at the controls and grips. A substantial 4 mm wall thickness contributes to its strength and rigidity.

Features

• Sporty, compact superbike-style handlebar design.
• High-strength, heat-treated aluminium alloy construction.
• Designed for excellent bending stiffness and fracture resistance.
• Tapered 28.6 mm to 22.2 mm construction.
• 4 mm wall thickness.
• Pearl-blasted surface with black anodised finish.
• Polished throttle grip area.
• No crossbar.
• TÜV part type approval supplied.

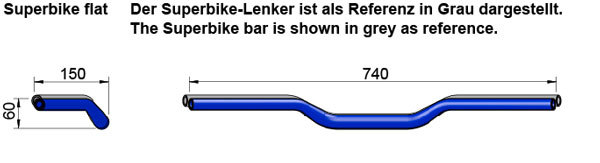

Dimensions

• Overall Width: 738 mm
• Sweep: 149 mm
• Height / Rise: 60 mm
• Clamp Diameter: 28.6 mm (1-1/8")
• Grip Diameter: 22.2 mm (7/8")
• Clamp Area Width: 139 mm
• Control Length: Approximately 225-230 mm
• Wall Thickness: 4 mm
• Internal Diameter: 14 mm

Installation Information

The handlebar is supplied without pre-drilled holes for the anti-rotation locating pins used by some handlebar switch assemblies. Where the original handlebar hole positions need to be replicated, HIGHSIDER recommends using the separately available HIGHSIDER pro Drilling Template (Part No. 902DT01HP).

Included

• 1 x HIGHSIDER pro Superbike Flat XN1 28.6 mm (1-1/8") Handlebar.
• 1 x Installation Instructions.
• 1 x TÜV Part Type Approval Certificate.

Approval Information

A TÜV part type approval certificate is included. Any conditions or requirements specified in the supplied approval documentation should be observed where applicable. TÜV/ABE approval does not automatically confirm compliance with Australian road regulations, so local requirements should be checked before road use.

With its compact dimensions, strong tapered aluminium construction and premium black anodised finish, the HIGHSIDER pro Superbike Flat XN1 is an excellent choice for creating a sporty cockpit with precise and responsive handling characteristics.
