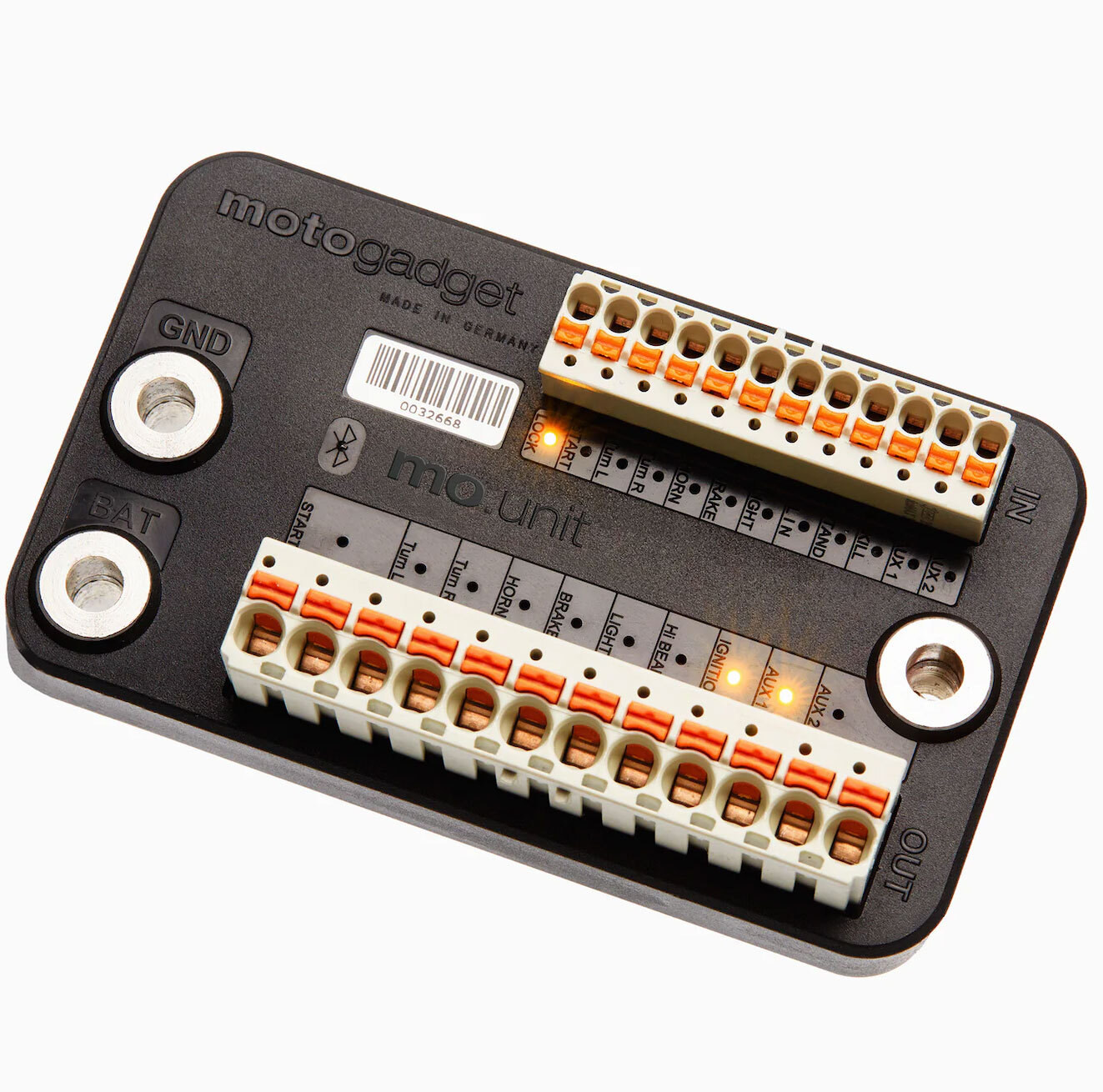

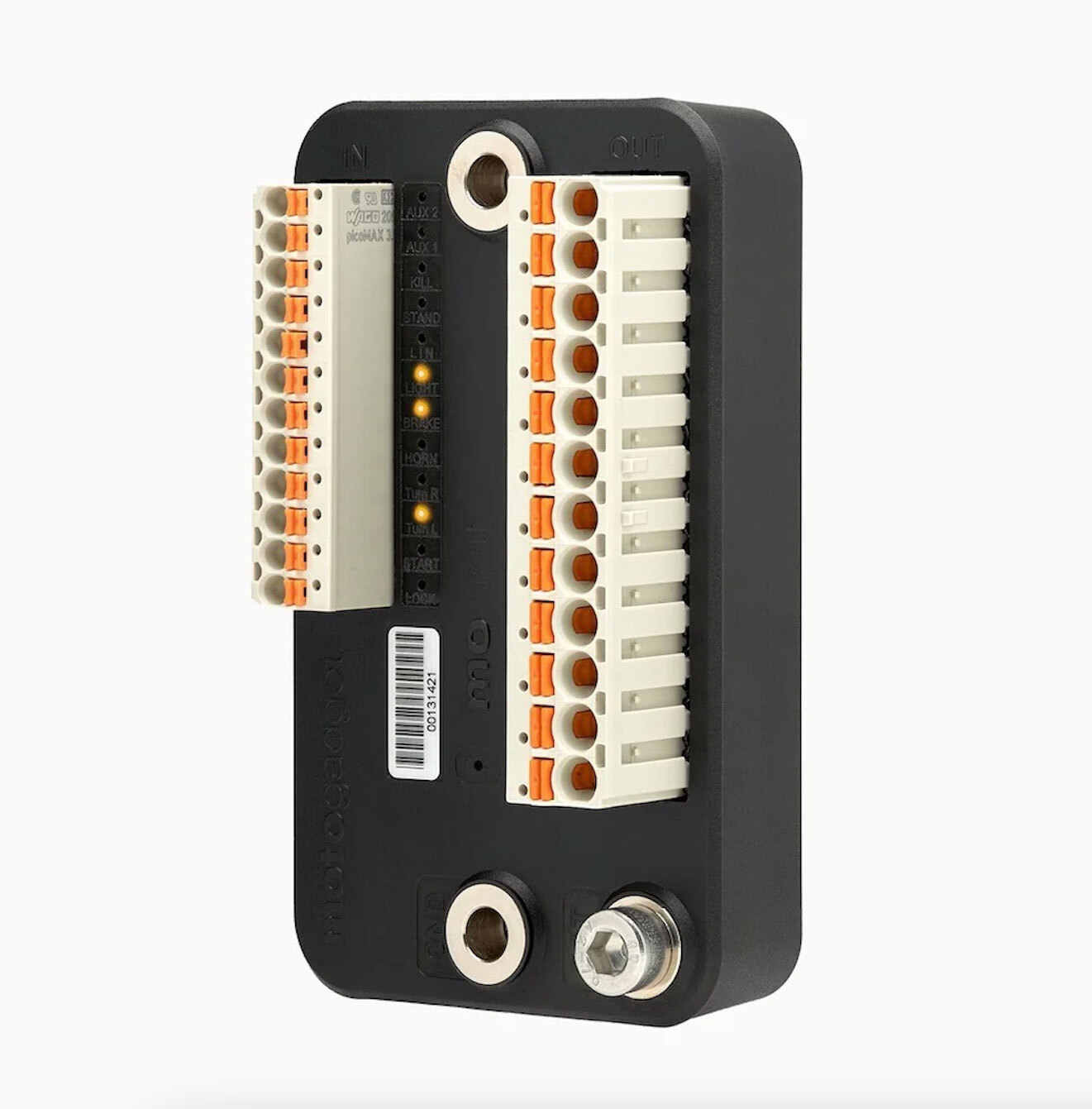

Motogadget mo.unit blue Digital Motorcycle Control Unit

The Motogadget mo.unit blue is a sophisticated digital control centre designed to simplify and modernise a motorcycle's electrical system. Acting as the heart of the vehicle electrics, it replaces conventional fuses, many relays and other individual wiring components with compact, solid-state technology.

With 12 inputs and 10 outputs, the mo.unit blue can be used with either push-button controls or conventional switching handlebar controls. High-performance semiconductor switches operate the connected electrical components without mechanical wear, making it possible to create a significantly cleaner and more streamlined motorcycle wiring system.

Built-in Bluetooth® LE connectivity takes the system even further. When paired with the Motogadget mo.ride smartphone app, the mo.unit blue provides access to features including encrypted Keyless-Go, trip logging, vehicle diagnostics, battery monitoring, maintenance management and alarm configuration.

Electrical & Control Functions

• Supports 4-button or 5-button push-button control configurations.
• Replaces conventional vehicle fuses.
• Integrated alarm system.
• Load-independent indicator relay.
• Hazard warning light control.
• Indicators can be configured as position lights.
• Time-controlled automatic indicator cancellation.
• Distance-controlled indicator cancellation when used with a compatible speedometer sensor.
• Integrated parking light and headlight flash functions.
• Low and high beam can be controlled from a single button.
• Brake light modulator with eight adjustable modes.
• Emergency brake light function.
• Garage light function.
• Fan run-on function.
• Hyperbeam function supporting combined 200W high and low beam operation.
• Starter relay function for starters with magnetic switches, up to 30A.
• Intelligent electrical load shut-down during engine starting.
• Integrated digital horn relay.
• Two configurable auxiliary outputs - AUX1 and AUX2.
• Complete electrical system diagnostic functionality.
• Detection of defective lighting components.

Functions with the Motogadget mo.ride App

• Keyless-Go: Allows the motorcycle to become ready to start when an authorised smartphone approaches.
• Secure encrypted Bluetooth® LE connection.
• Trip logging with statistics including routes, number of bends and maximum speed.
• Alarm event history including date, time and vehicle position information.
• Alarm mode and sensitivity adjustment.
• Battery voltage monitoring.
• Diagnostic monitoring of inputs and outputs, including current and voltage information.
• Detection of lighting faults.
• Rideassist audio notifications for indicators and system errors through a compatible helmet headset.
• Manual switching of electrical outputs from the smartphone, excluding the starter output.
• Firmware updates.
• Configuration of the mo.unit setup menu.
• Vehicle management and maintenance planning.
• Chronological logbook for trips and system messages.
• Displays the motorcycle's recorded parking position.
• Ping function helps locate the motorcycle.
• Ultra-low-power standby mode helps minimise battery consumption while parked.

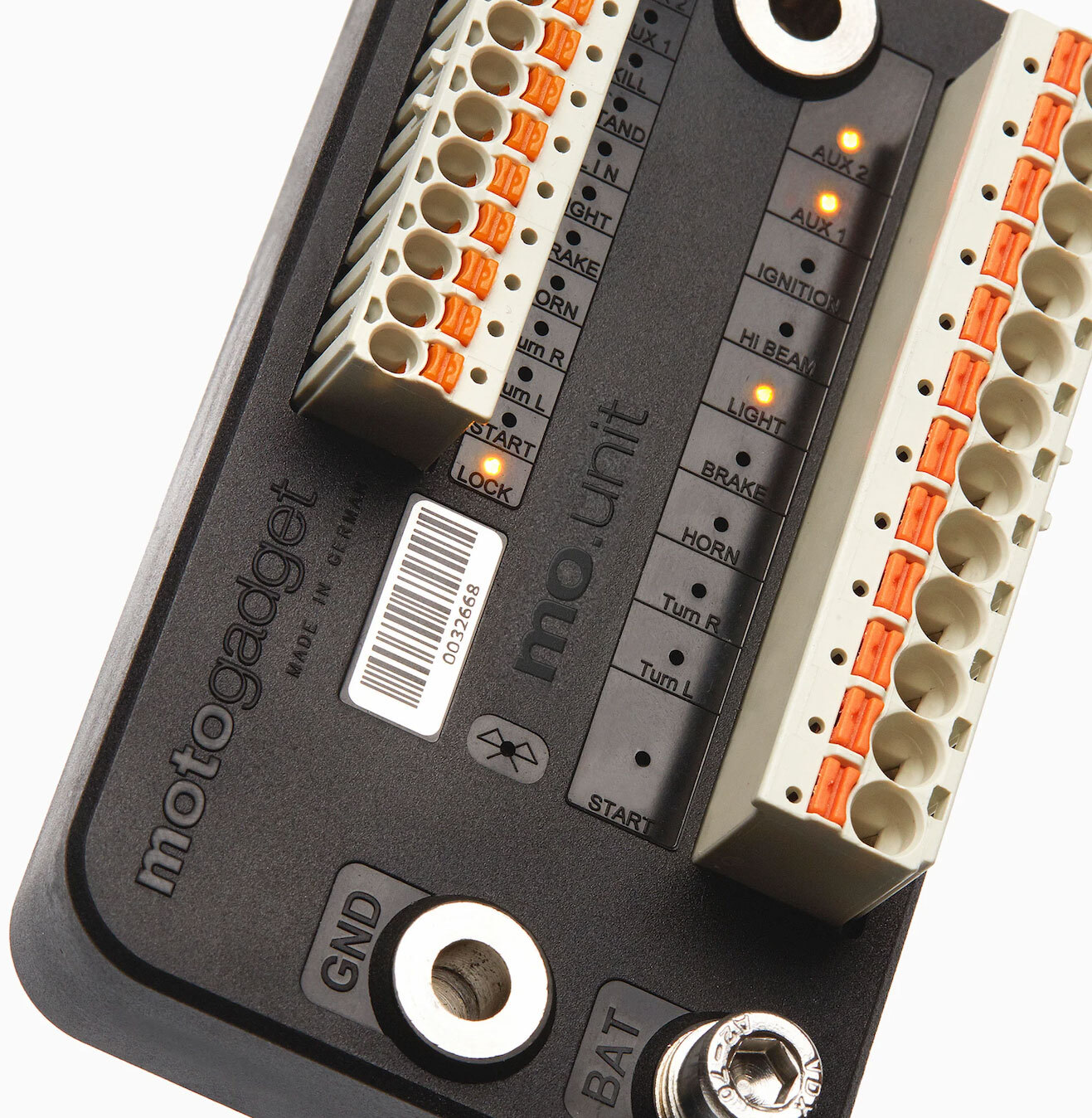

Inputs

• Ignition lock +12V or mo.lock.
• Left indicator.
• Right indicator.
• Light.
• Starter.
• Horn.
• Brake light.
• Kill switch.
• Side stand.
• LIN bus.
• AUX1.
• AUX2.

Outputs

• Left indicator.
• Right indicator.
• Low beam.
• High beam.
• Starter.
• Horn.
• Brake light.
• Ignition.
• AUX1 universal output.
• AUX2 universal output.

Specifications

• Dimensions: 90 x 53 x 30 mm
• Weight: Approximately 180 g
• Operating Voltage: 9V-15V
• Operating Temperature: -20°C to +80°C
• Protection Rating: IP69
• Construction: Waterproof and vibration-resistant
• Mounting: 2 x M5 screws
• Mounting Hole Spacing: 74 mm
• Inputs: 12
• Outputs: 10
• Connectivity: Bluetooth® LE

Smartphone Compatibility

• Apple iPhone running iOS 15 or later.
• Android smartphones running Android 11 or later.

App availability and compatibility may vary depending on device, operating system and region.

Package Includes

• 1 x Motogadget mo.unit blue.
• 1 x M5 positive terminal screw.
• 2 x M5 mounting screws with nuts and washers.

Optional Accessories

The following components are available separately and can be used when building or expanding a complete Motogadget electrical system:

• Battery connection cable.
• Battery connection cable with vehicle main fuse.
• Complete vehicle wiring cable kit.
• Bus terminal earth connector.
• Motogadget mo.lock ignition lock.
• Speedometer sensor with two neodymium magnets.

Compact, highly configurable and packed with intelligent functionality, the Motogadget mo.unit blue provides an excellent foundation for custom motorcycles, restorations and electrical system upgrades where a cleaner wiring layout and modern digital features are desired.
