This product can be used to mount a variety of heavy duty marine electronic items. It consists of a 6" (15.24cm) long BENT swing-arm mounted on a horizontal surface mounting base, with a rectangular 6.25" x 2" (15.87cm x 5.08cm) plate.

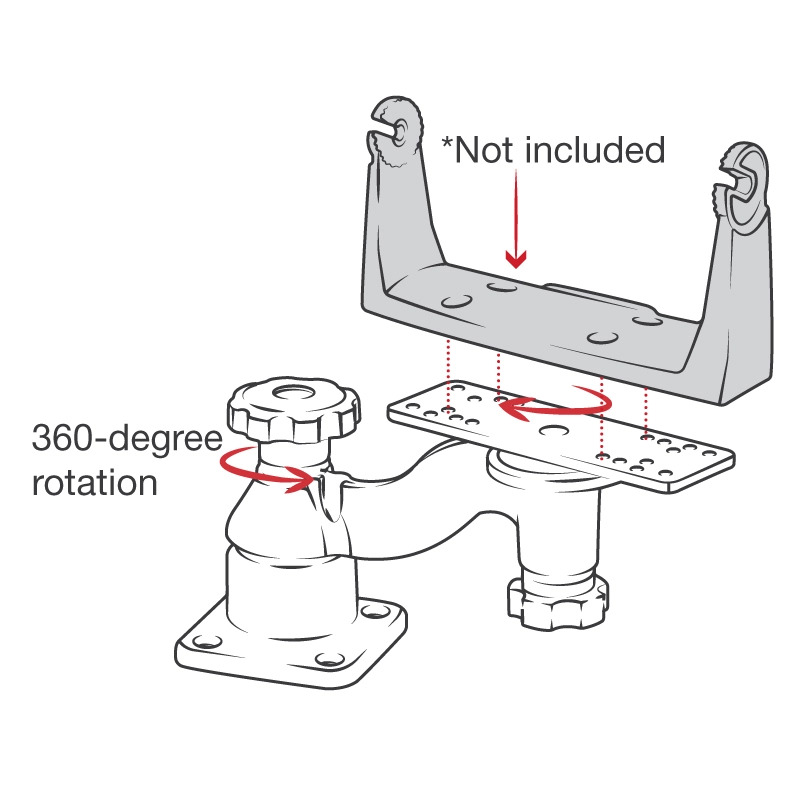

The mount has two pivoting points, using the RAM Mounts 1.5" ball system, with one at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Weight Capacity: Up to 4.5kg.

Plate Hole Patterns

Specifications:

  • Dimensions:
    Center of knob to center of ball socket: 6" (15.24cm)
    Overall length of swing arm assembly: 10.75" (27.30cm)
    Overall height: 5.6" (14.22cm)
    Height from base to top of knob: 4.91" (12.47cm)
  • Material: Powder Coated Marine Grade Aluminium
  • Weight: 948 grams

Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Assembly Instructions (PDF)

SKU RAM-109HU
Barcode # 793442010910
Brand RAM Mounts

shubox

By: on 10 August 2017
this product is strong and robust better then i expected it to be
(5)

Excellent Ram Mount

14 March 2017
Strong durable multi adjustable mount. I used it to mount a Helix7 sounder to my boat. Now i can fish bow or stern and be able to view my screen at anytime. Postage from WA to QLD was surprisingly superfast. Thanks Hurtlegear.
(5)

Write a product review
