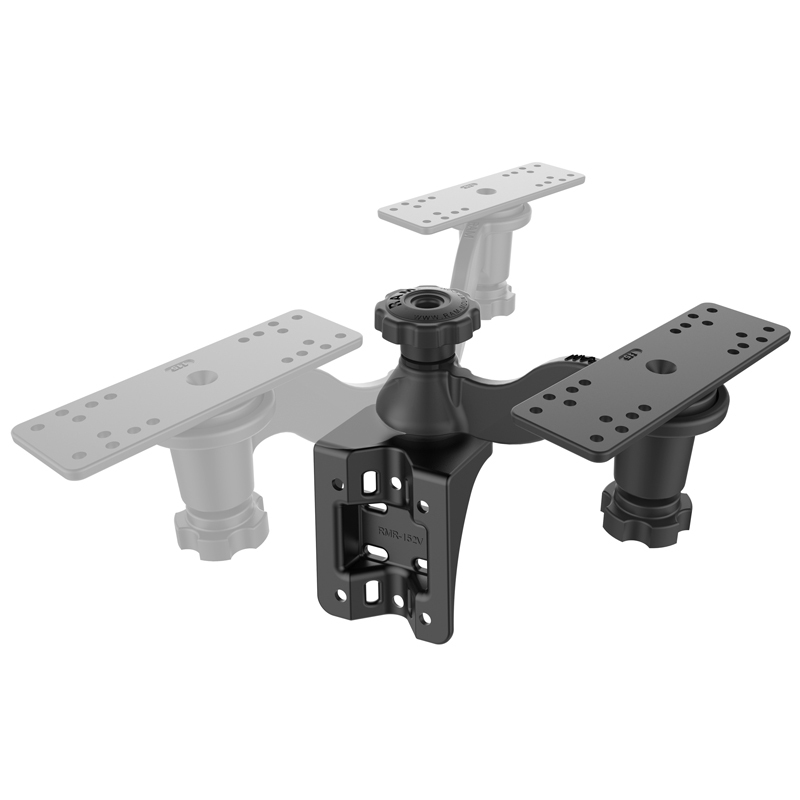

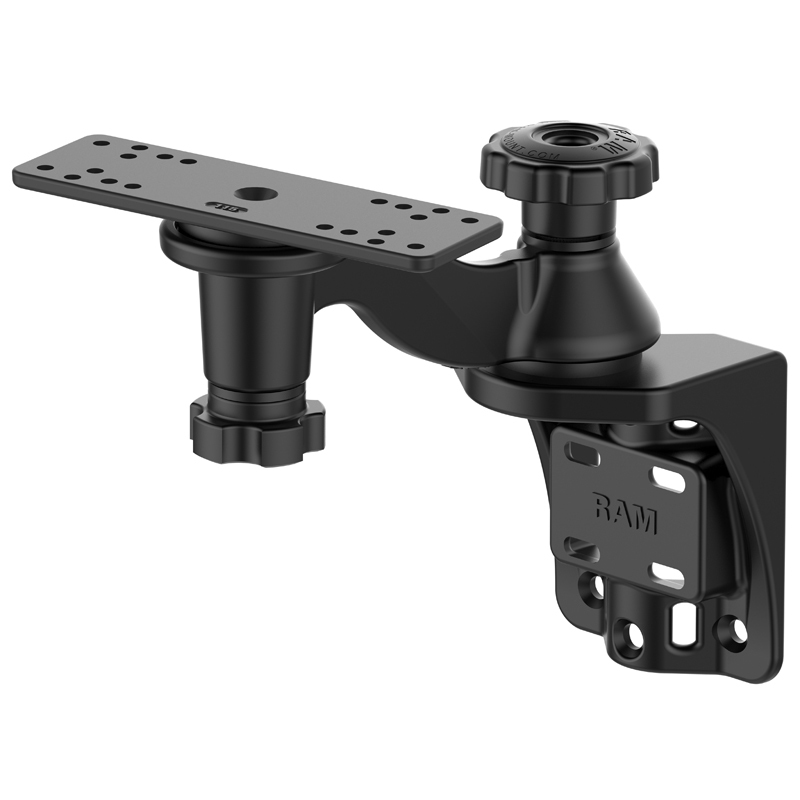

This product will let you mount a variety of heavy duty marine electronic products. It consists of a 6" (15.24cm) long swing arm mounted on a vertical surface mounting base, with a rectangular 6.25" x 2" (15.87cm x 5.08cm) plate.

The mount has two pivoting points that use the RAM Mounts 1.5" ball system. One pivoting point is at the swing arm and base and one is at the center of the rectangular plate and the end of the swing arm, each allowing a complete 360 degree rotation.

Compatible Devices:

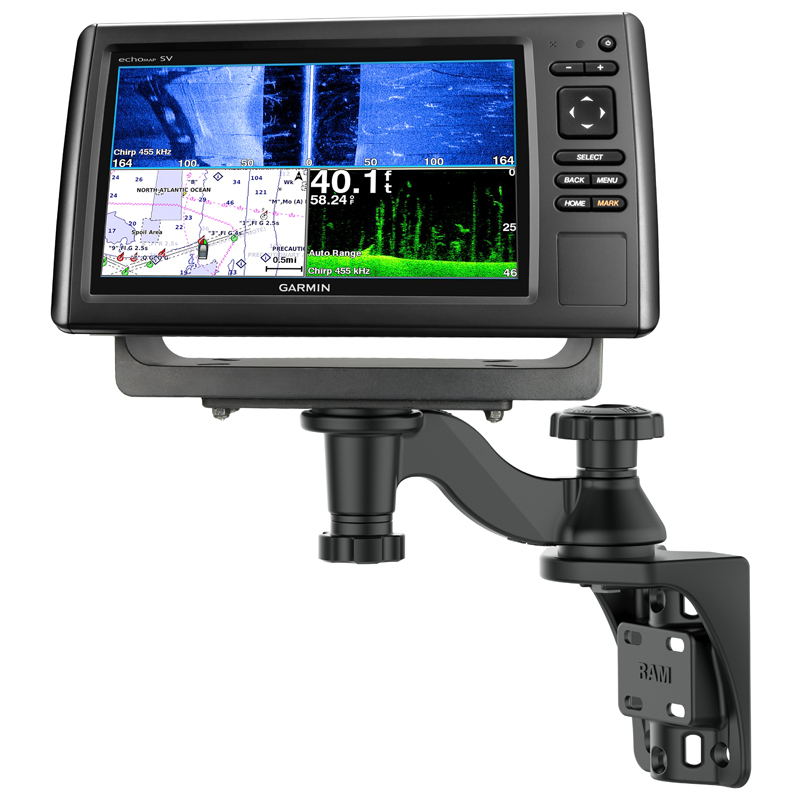

Garmin Fishfinders/Chartplotters
Humminbird Fishfinders/Chartplotters
Lowrance Fishfinders/Chartplotters
Raymarine Fishfinders/Chartplotters
Si-Tex Fishfinders and GPS Chartplotters

Plate Hole Patterns

Max Weight Capacity: 4.5kg

Specifications:

  • Dimensions:
    Center of knob to center of ball socket: 6" (15.24cm)
    Overall length of swing arm assembly: 11.4375" (29.05cm)
    Overall height: 8.45" (21.46cm)
  • Material: Powder Coated Marine Grade Aluminium
  • Weight: 1.18kg

Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Assembly Instructions (PDF)

SKU RAM-109VU
Barcode # 793442010958
Brand RAM Mounts

Ram Mount

By: on 5 July 2018
Awesome product super fast service packed very well great price would not hesitate to buy from you again.
(5)

RAM 109VU

By: on 28 May 2018
Pleasantly surprised. Great product, sturdy, solid and well engineered. Fits my Lowrance Hook 2 Mount perfectly. fast delivery.
(5)

Awesome Mount

By: on 10 October 2017

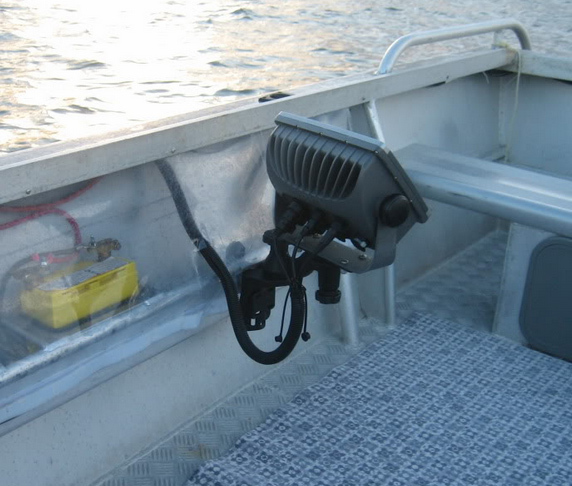

Very sturdy mount. Light weight and perfectly supports the depth sounder in my boat. Pre-drilled holes line up perfectly with sounder bracket. Option for 316 stainless bolts and nuts would be my only suggestion to improve product
(5)

RAM Sounder Mount

By: on 10 August 2017
Very good quality item backed by prompt efficient supply. Well done!
(5)

RAM Mount

By: on 2 May 2017
Great product, fast delivery. Cheers
(5)
