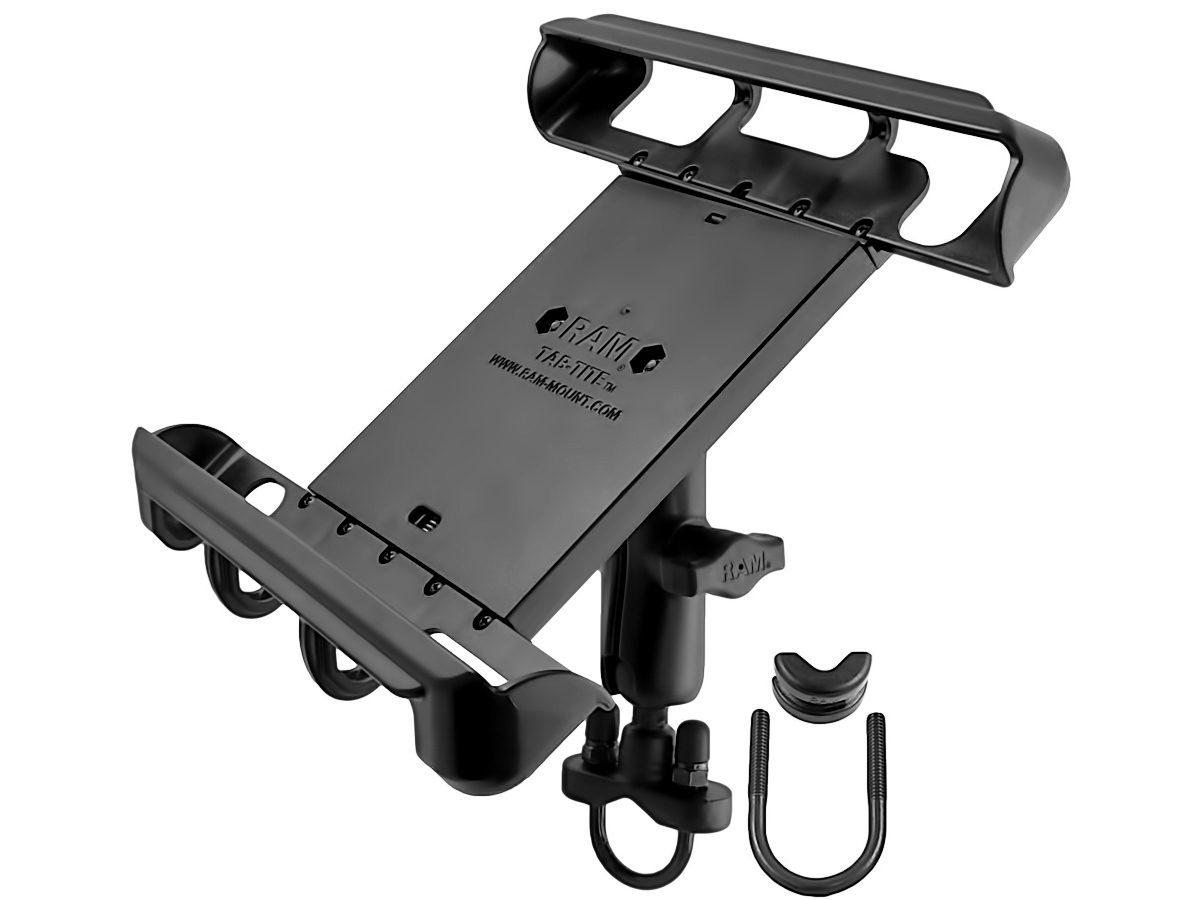

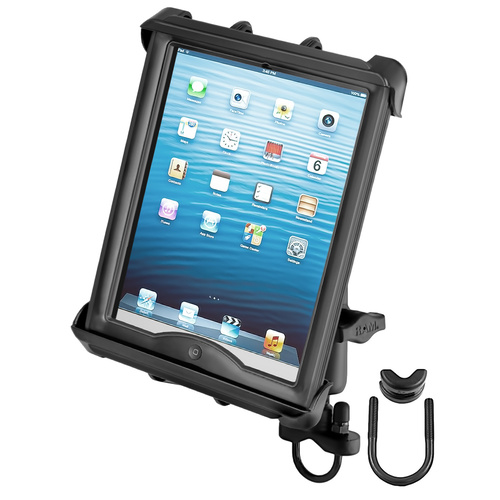

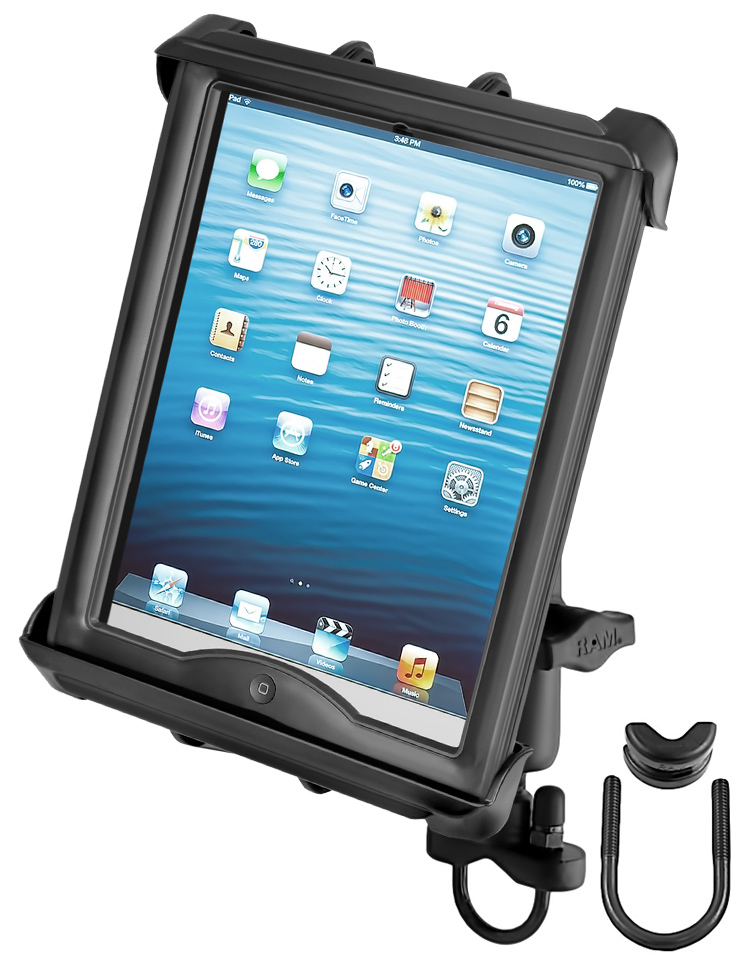

This product will allow you to hold a 10" screen tablet onto any bar that is between 0.5" to 1.25" (1.27cm to 3.17cm) in diameter. It includes a zinc coated u-bolt base, a double socket arm, diamond base adaptor and a Tab-Tite universal cradle for 10" tablets.

The u-bolt base also has black cover caps to place over the exposed ends of the u-bolt. The socket arm uses the 1" rubber ball system, which adjusts at both ends and allows for an almost infinite number of adjustments and viewing angles. The Tab-Tite cradle has a spring-loaded back plate and custom support cups which makes it very easy to load and unload your tablet, as well as keeping it secure. The interchangeable cup ends allow access to audio, USB, power and other ports on your tablet.

This product is compatible with the following tablets:
10" Screen Tablets with OtterBox® Defender cases
10" Screen Tablets with Gumdrop Drop Tech cases
10" Screen Tablets with Griffin Technology cases
10" Screen Tablets with Belkin cases
10" Screen Tablets with heavy duty cases

or any tablet within the following dimensions:
Maximum Width: 8.31" (21.10cm)
Length Range: 8.5" to 10.5" (21.59cm to 26.67cm)
Maximum Depth: 1.12" (2.84cm)

U-Bolt Range Dimensions: 0.50" to 1.25" (1.27cm to 3.17cm)

  • Support cups contain open slots to accommodate for tablets of various sizes
  • Back plate can support various size support cups
  • Spring loaded tension provides secure support for your tablet
  • Spring loaded cradle allows for quick release of your tablet
  • High strength materials maximize longevity of cradle
  • Full access to all ports
  • Lifetime warranty
  • Material: High Strength Composite & Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size
  • Made in the USA and comes with a lifetime warranty

Note: The "U" in the part number reflects product packaged in poly bag.

Barcode # 793442939617
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Type: Mount

Universal Fitment: Yes

Lifetime warranty
