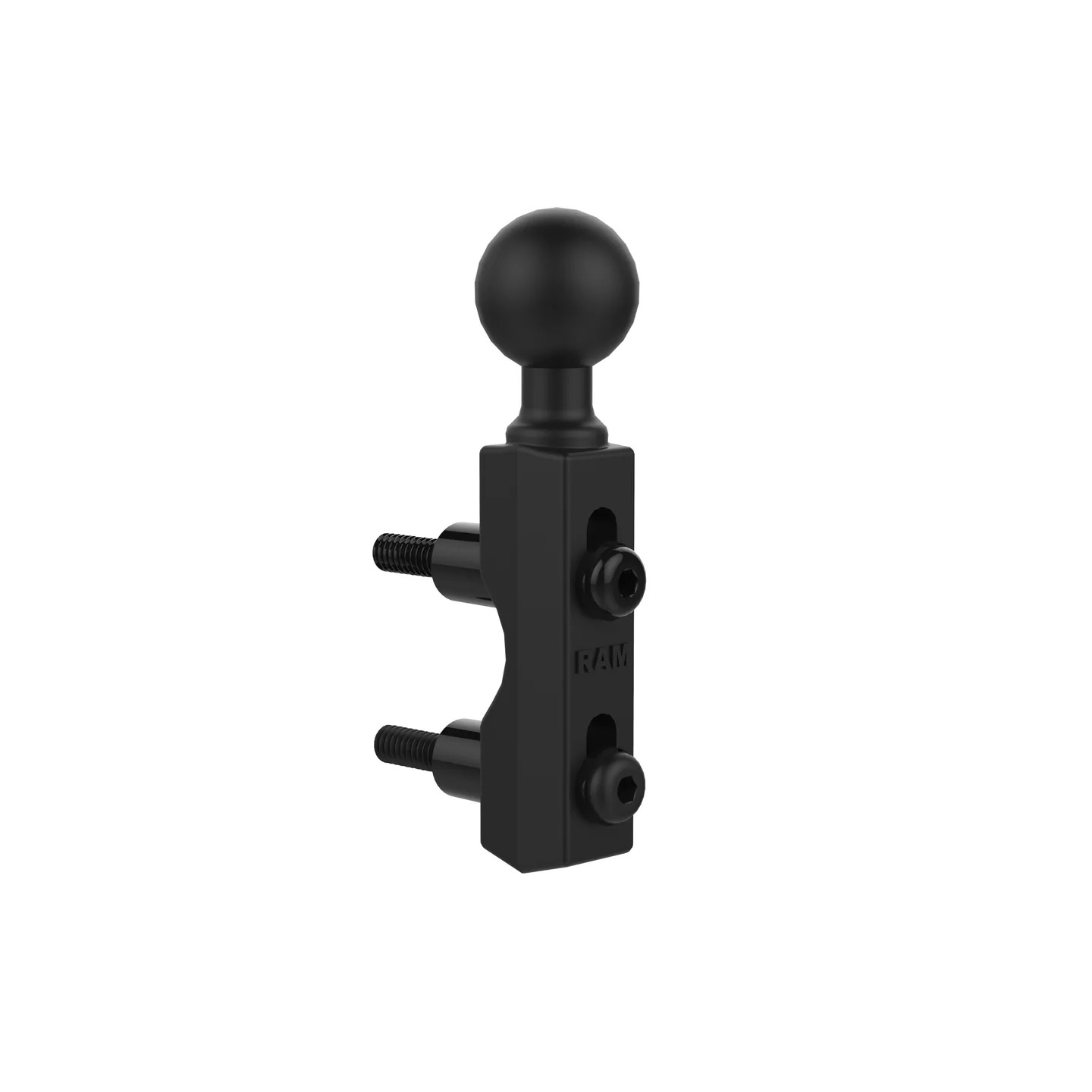

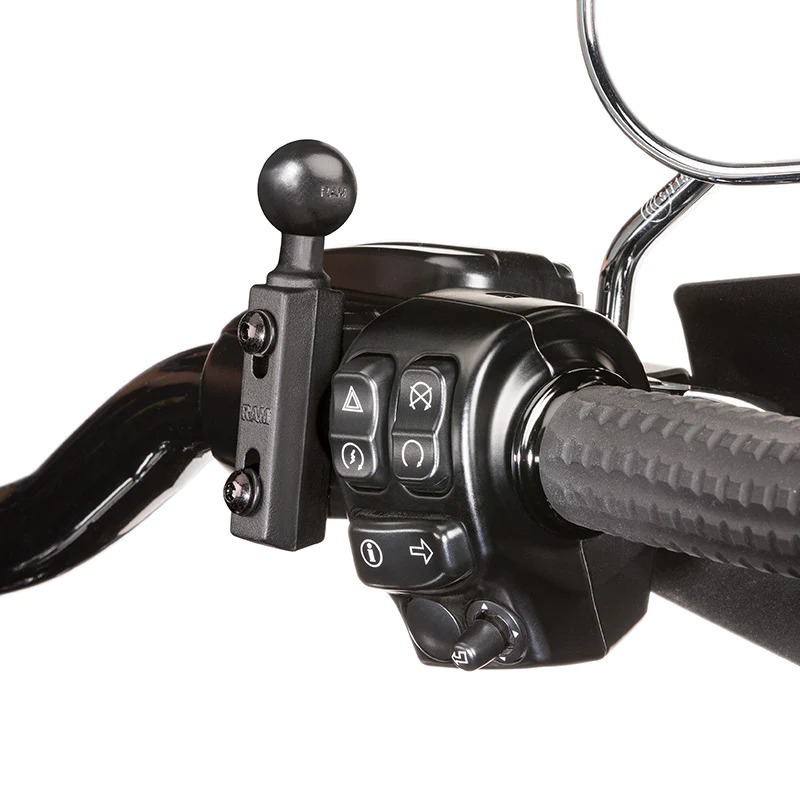

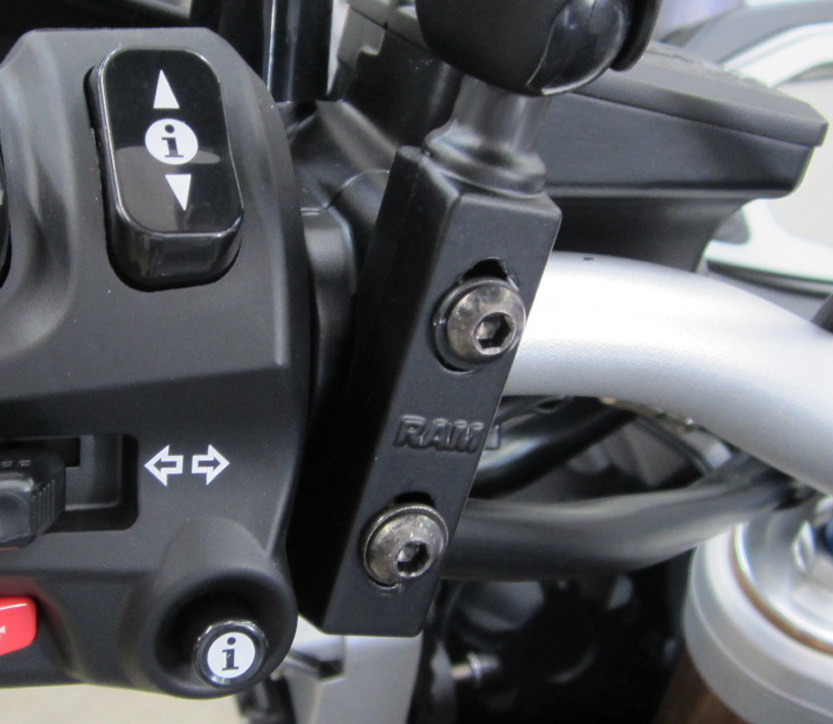

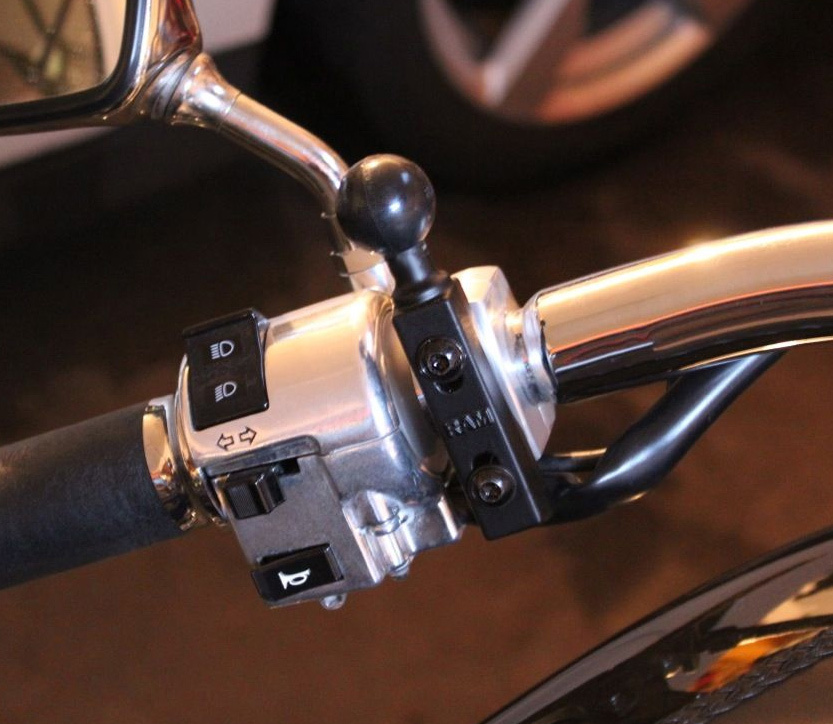

This product will attach to your motorcycle handlebar brake/clutch clamp, and allow you to then attach a variety of electronic devices to your bike, using the RAM Mounts 1" ball system.

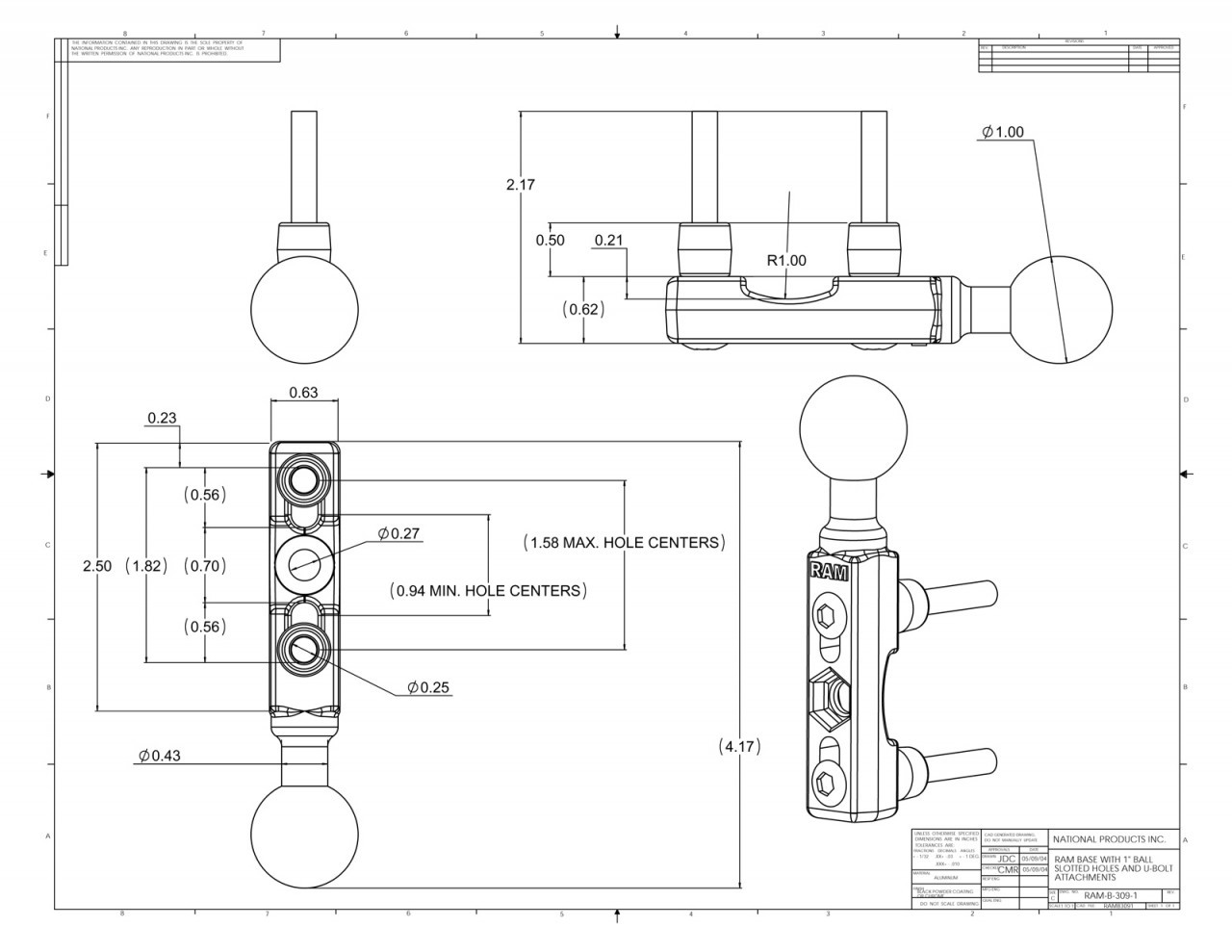

The base of this product fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware (included). To see if this base will fit your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" (2.39cm) and a maximum of 1.58" (4.01cm).


  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size
  • Made in the USA and comes with a lifetime warranty

Note: The "U" in the part number reflects product packaged in poly bag.

SKU RAM-B-309-1U
Barcode # 793442130915
Brand RAM Mounts

Lifetime warranty

Almost does the job perfectly

14 August 2016
The bracket is perfect but all the screws sent with it have too broad a thread for my Guzzi so I had to source alternate screws to fit it. I had previously had the same issue with a fitting that came with a GPS

Convenient and sturdy

By: on 4 December 2014
Attaching the mount was simple. Fit is perfect and easily adjustable. Helps to use a little blue thread locker but not necessary if you don't want to. I highly recommend getting this if you don't want to attach a mount to your handlebar. Personally, I don't have enough room on my handlebar to fit any more attachments so this is the perfect solution. I've attached my GoPro with a short extension arm. Vibration is minimal but that could be also due to my suspension settings.

Great way to fit you stuff to bikes

By: on 9 December 2013
These Mounts are fantastic to mount both my GPSr and GoPro to my bike. No vibrations and easy to adjust
