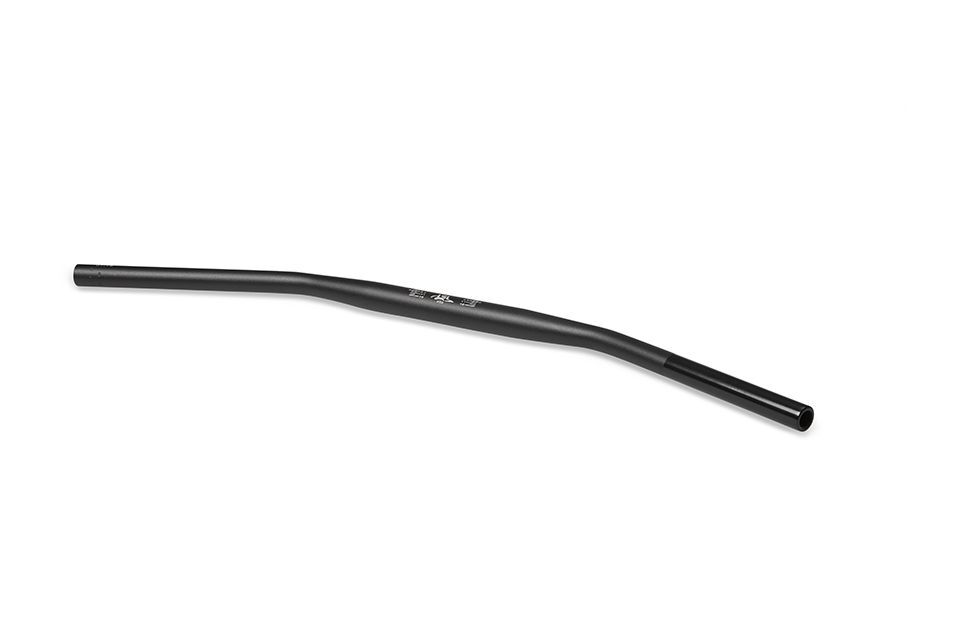

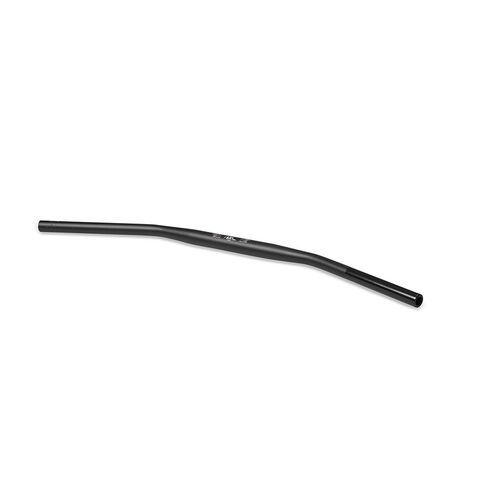

HIGHSIDER pro Drag Bar XD1 Tapered Aluminium Handlebar

The HIGHSIDER pro Drag Bar XD1 is an ultra-flat tapered aluminium handlebar designed to provide a sporty, low riding position and precise control. With a width of 747 mm and zero rise, it delivers a purposeful drag-bar profile ideal for riders looking to create a more aggressive riding position.

Manufactured from a high-strength, heat-treated aluminium alloy, the XD1 combines excellent bending stiffness with high fracture resistance. The handlebar features a pearl-blasted and black anodised finish, while the throttle grip area is polished for a clean and precise installation.

Tapered Construction

The handlebar has a 28.6 mm (1-1/8") diameter through the central clamping area before tapering to the standard 22.2 mm (7/8") diameter at the grip sections. A substantial 4 mm wall thickness contributes to its strength and rigidity.

Features

• Ultra-flat drag-bar design for a sporty, low grip position.
• High-strength, heat-treated aluminium alloy construction.
• Designed for excellent bending stiffness and fracture resistance.
• Tapered 28.6 mm to 22.2 mm construction.
• 4 mm wall thickness.
• Pearl-blasted surface with black anodised finish.
• Polished throttle grip area.
• TÜV part type approval supplied.

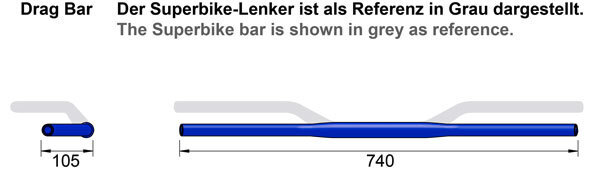

Dimensions

• Overall Width: 747 mm
• Sweep: 106 mm
• Height / Rise: 0 mm
• Clamp Diameter: 28.6 mm (1-1/8")
• Grip Diameter: 22.2 mm (7/8")
• Clamp Area Width: 160 mm
• Control Length: 219 mm
• Wall Thickness: 4 mm
• Internal Diameter: 14 mm

Installation Information

The handlebar is supplied without pre-drilled holes for the anti-rotation locating pins used by some handlebar switch assemblies. Where the original handl
