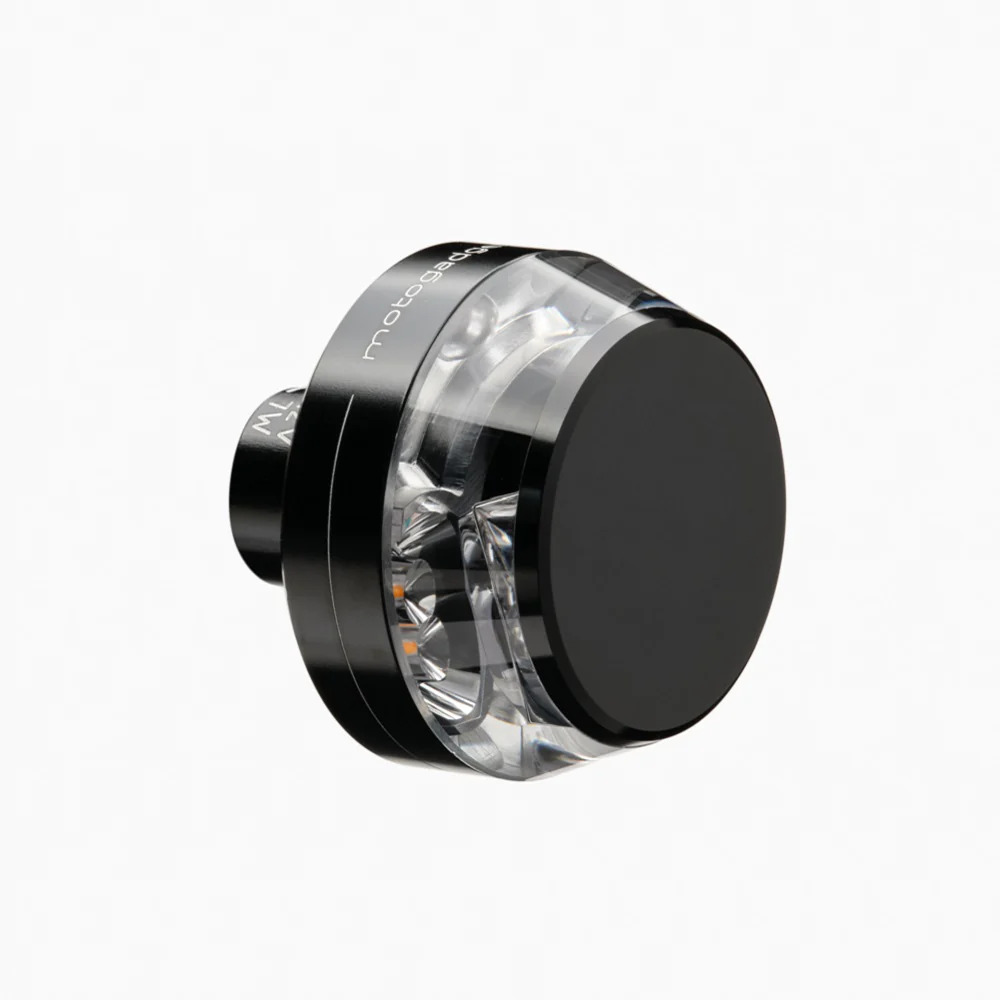

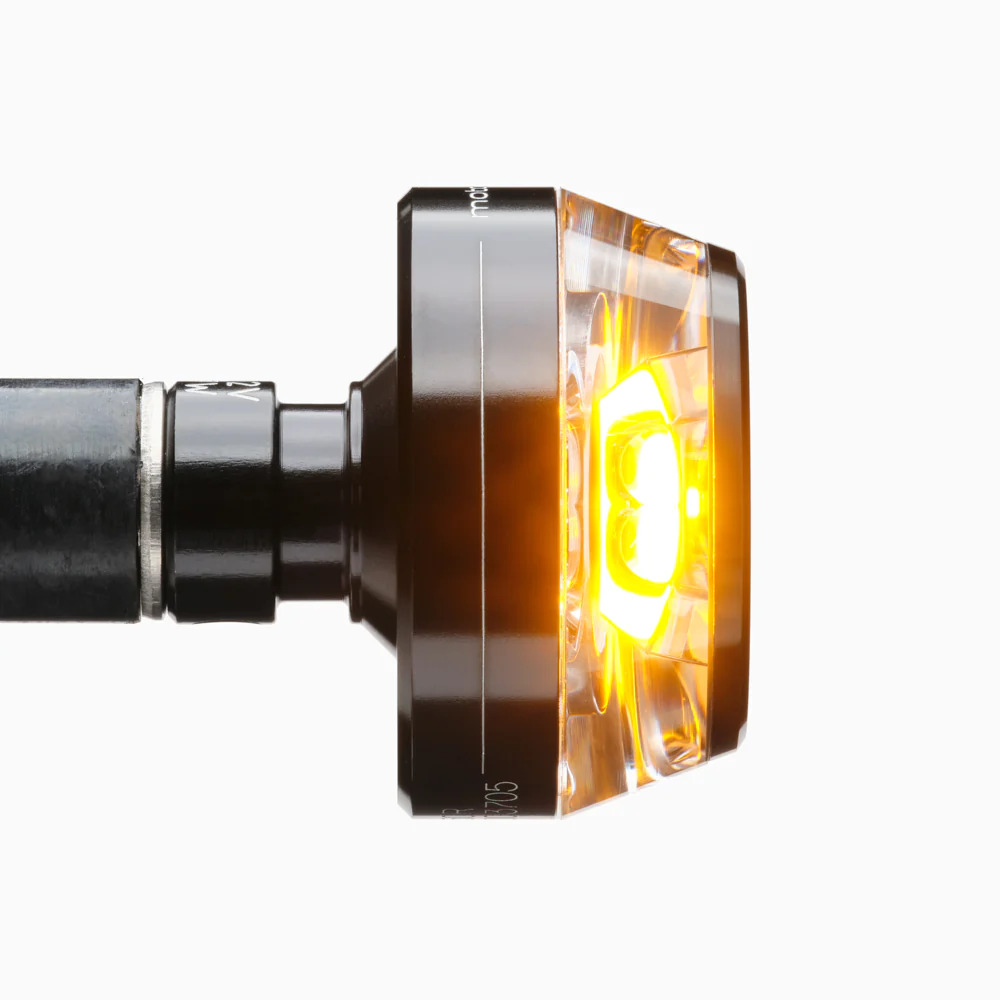

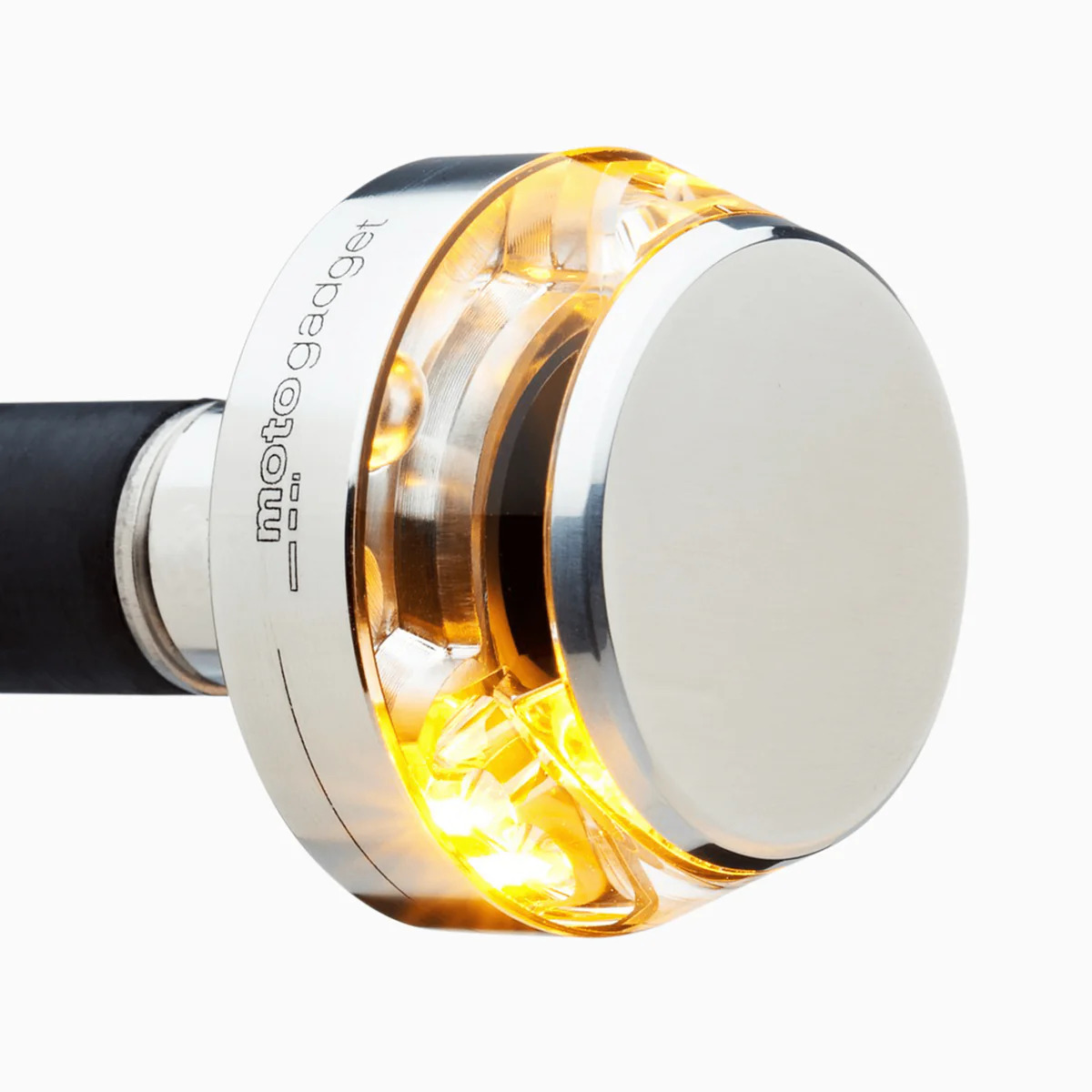

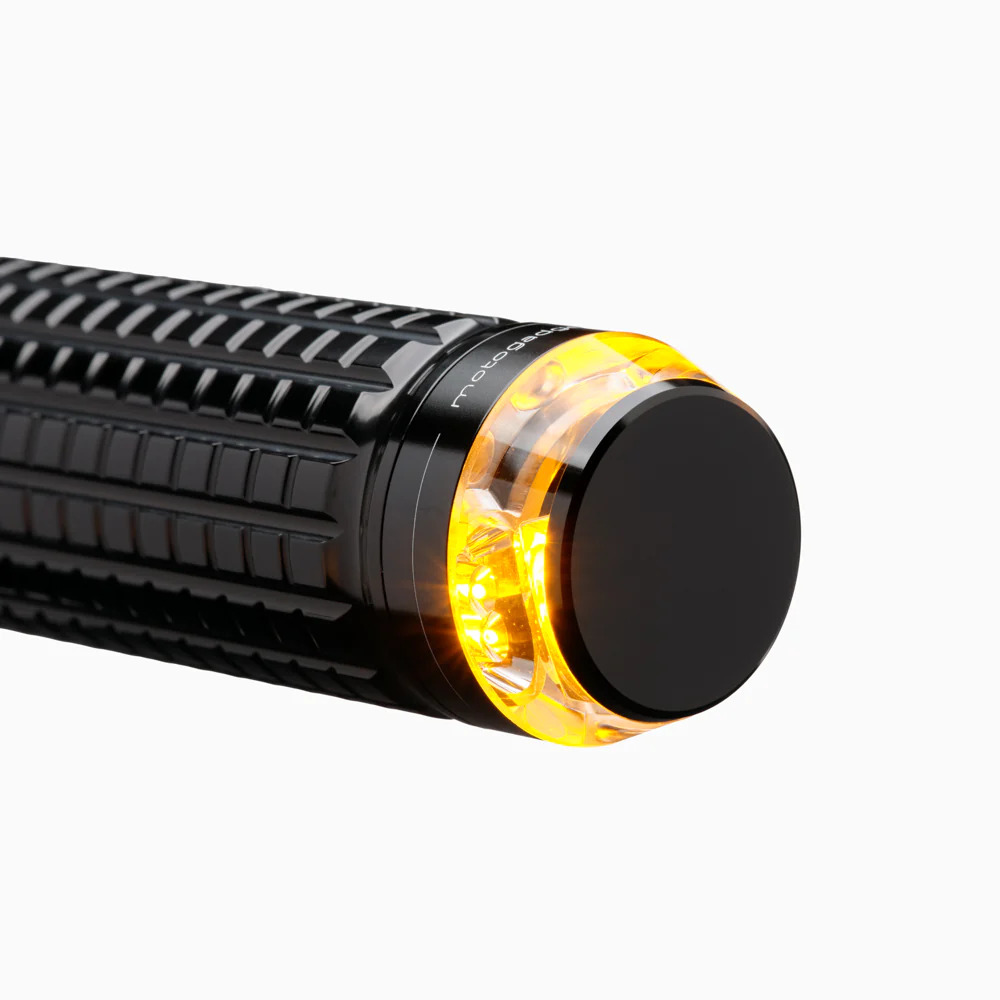

The Motogadget mo.blaze disc indicators are handmade in Berlin. The light from the 3 high-performance LEDs is directed through a transparent, crystal-like disc and is visible from all sides when switched on. The design and high-quality appearance make the mo.blaze disc a highly acclaimed design classic.

The mo.blaze disc is the flashing signal light of the latest generation. The characteristic feature of the LED turn signal is the transparent illuminated disc on a compact aluminum base, which harmoniously closes with the handlebar end grip.

These turn signals use the new TranzLight technology (TLT, patent pending). This progressive development approach is not limited to simple miniaturization of turn signal housings, but designs the light directly via a crystal-like plastic body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this novel design and its function possible.

The light flux required for the TranzLight principle is generated by the motogadget's intensiLED® process and consists of three important components three important components:

  • Selected high-performance LEDs with maximum efficiency and a total output of 7W with a service life of more than 50,000 hours
  • an IC-controlled constant current regulation clocked at 330kHz
  • a special collimator optic that couples the light from the LED precisely into the plastic body

The discreet aluminum housing is only used for the stable mounting of the glass body and the integration of control electronics and high-end LEDs. Of course, the housing is CNC-manufactured, black anodized or highly polished and finely inscribed by laser.

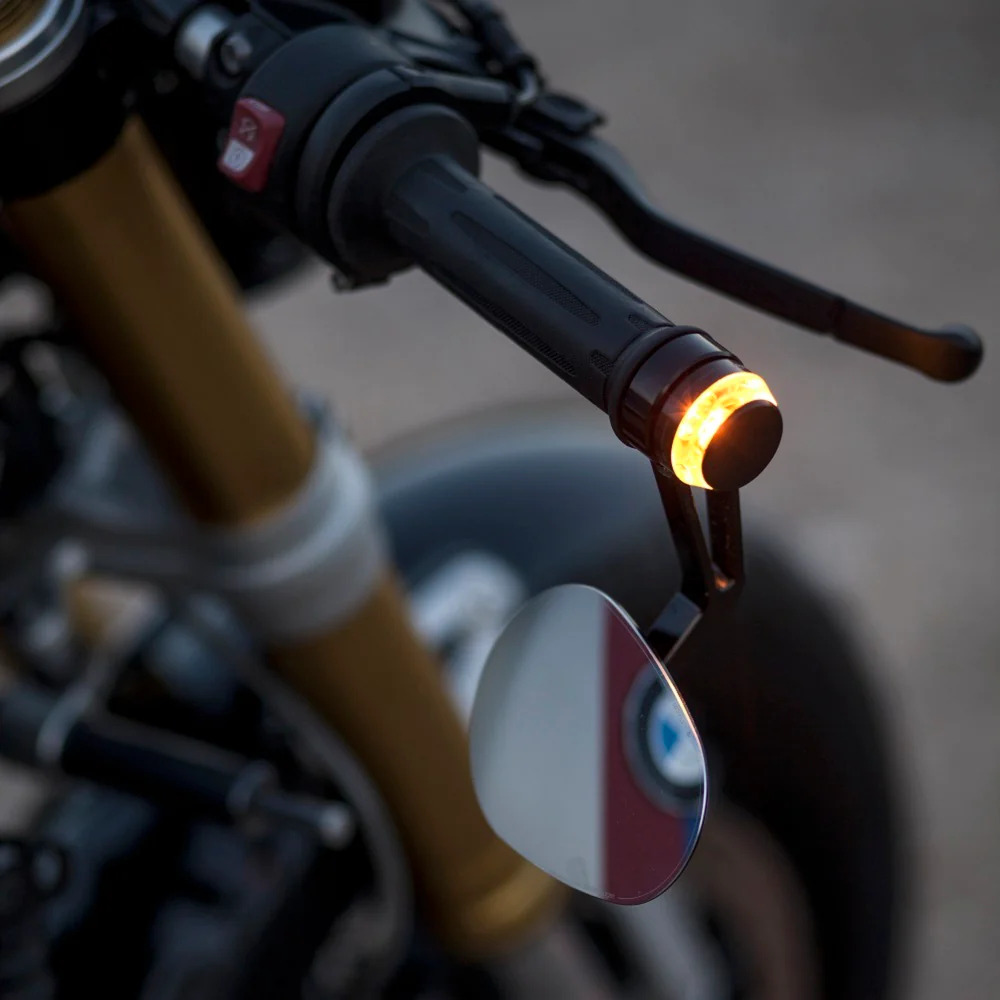

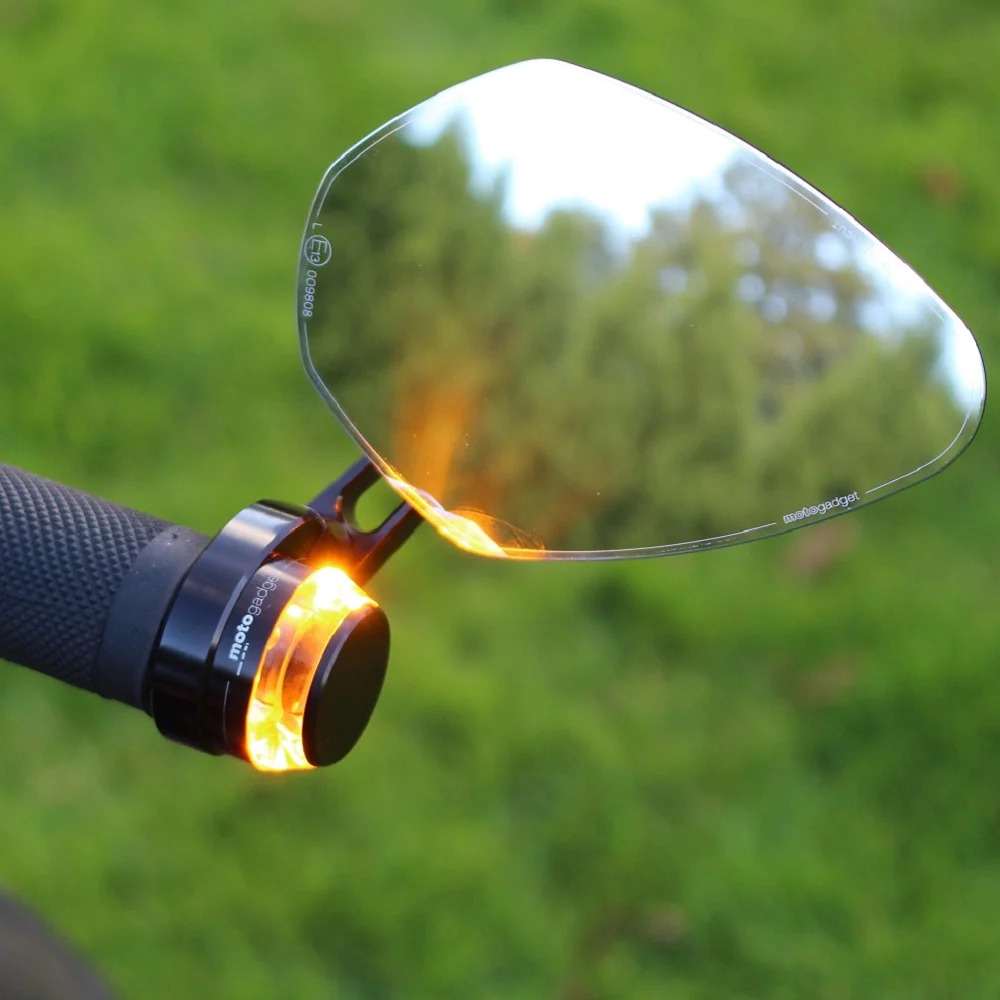

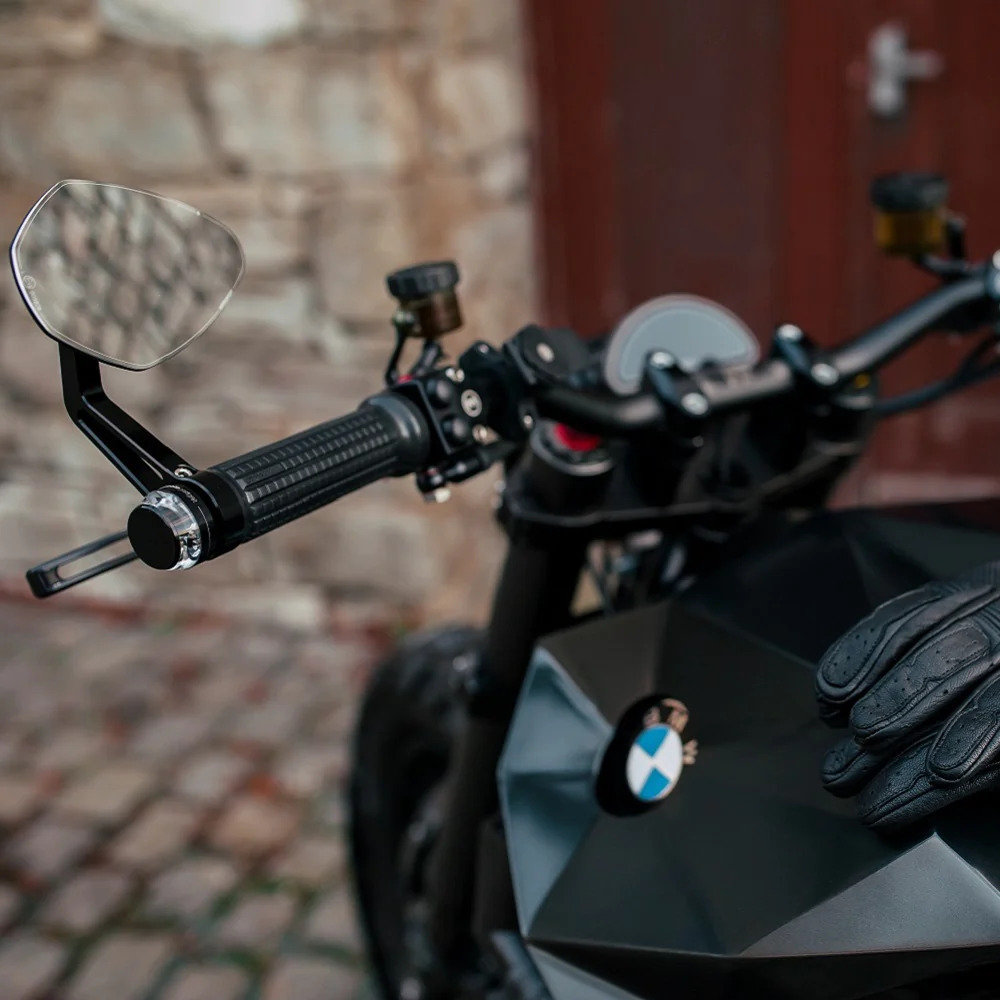

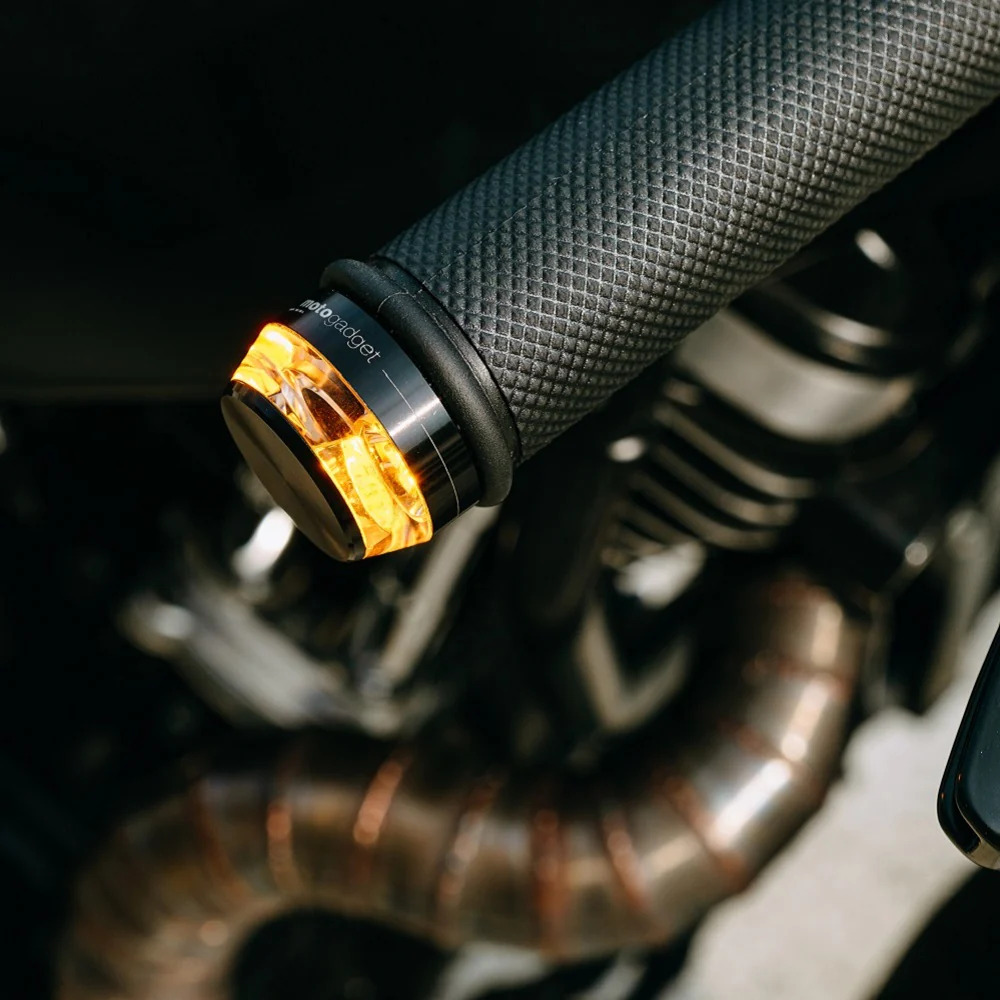

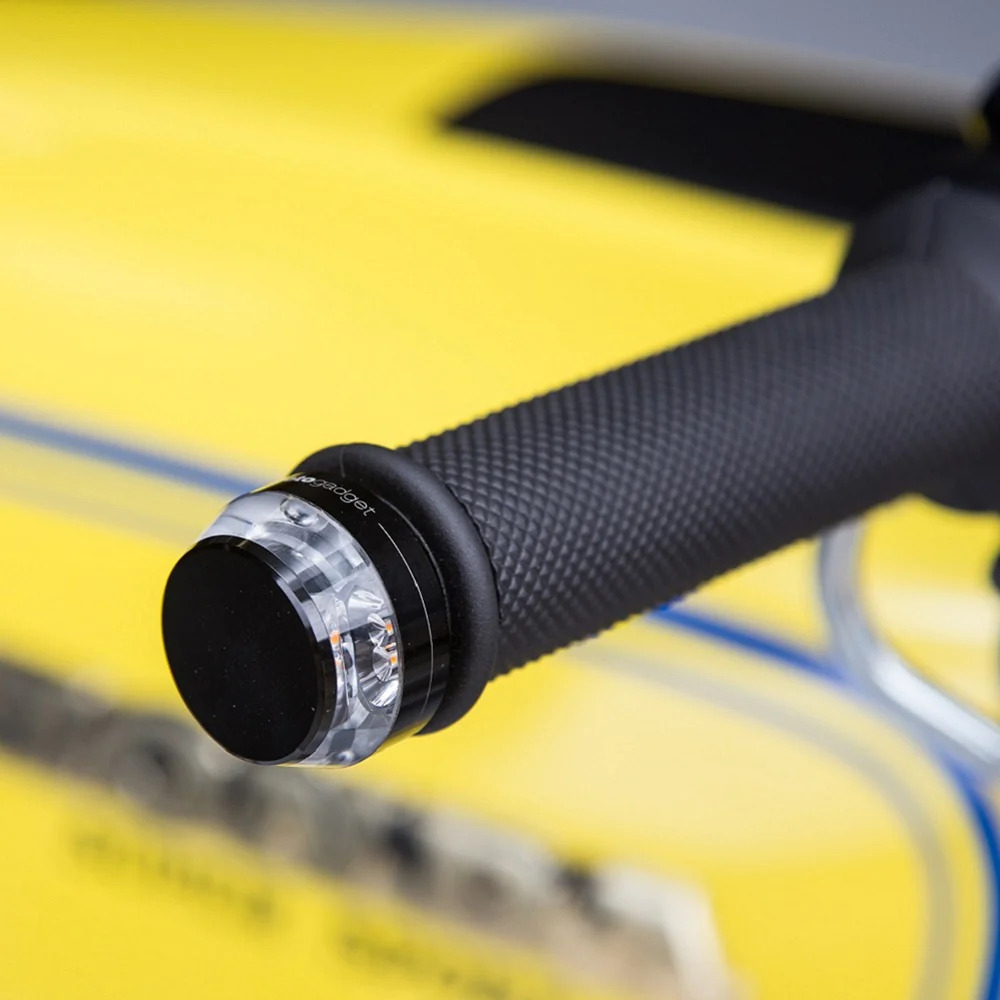

The handlebar end turn signal builds very flat and appears through the transparent disc neutral and inconspicuous. Thus, it fits many styles and the most diverse motorcycles. The flasher can be operated like any other LED flasher with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+).

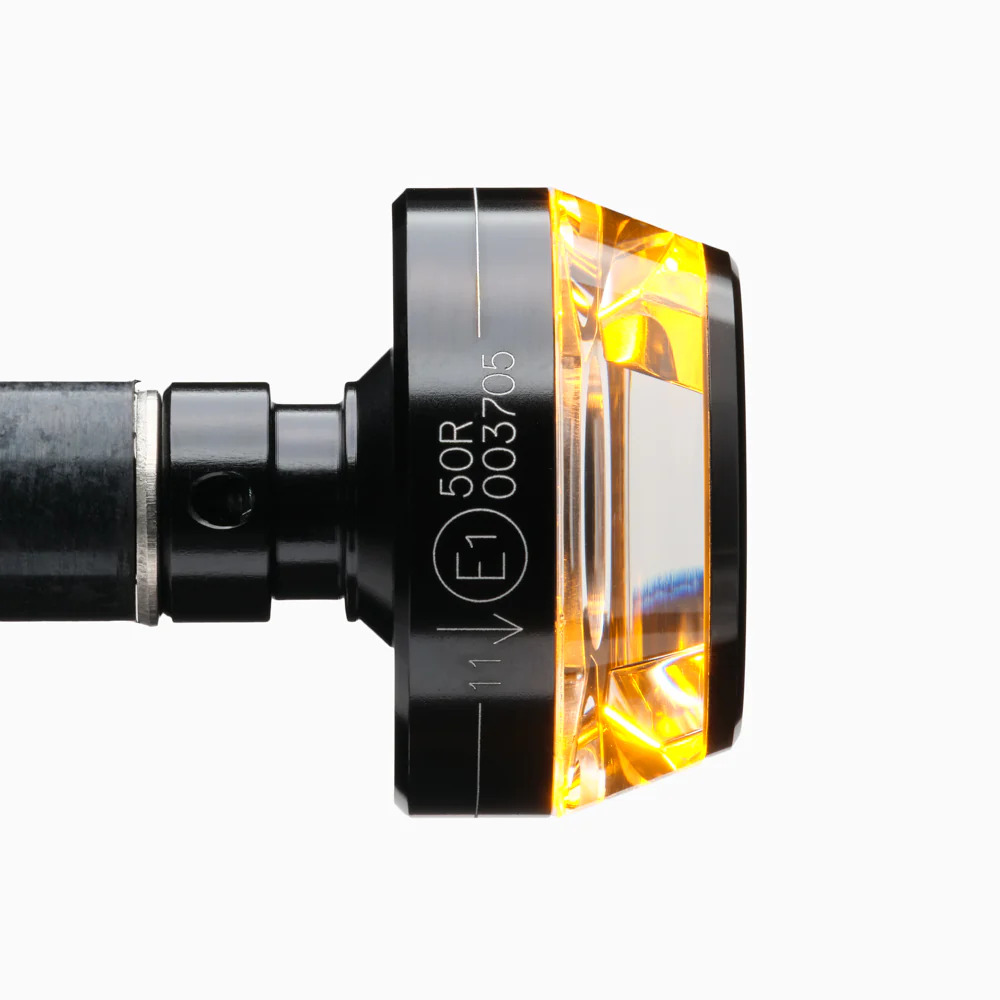

The handlebar end blinker mo.blaze disc presented here has an E-mark and is ECE-approved as a front blinker.

  • Diameter: 35 mm
  • Total length: 68 mm (visible 20mm / in the handlebar 48mm)
  • Voltage: 12V
  • Power: 7W
  • Waterproof - degree of protection IP69
  • Vibration resistant
  • 3 x high-power LEDs (2 to the front, 1 to the rear)
  • Service life: 50000h
  • Cable length: approx. 1m
  • Weight approx. 50g

What's Included:

  • 1 x handlebar end blinker mo.blaze disc left or right
  • Clamp for steel and aluminum handlebars (22 mm and 1 inch handlebars) with an inner diameter of 14 mm to 21 mm
  • Connection cable with 1m length
  • 2 x 3M Scotch Lok connectors
  • QR code for mounting and operating instructions
  • For use as a pair, please order one left and one right turn signal.

Installation Instructions (PDF)

SKU 6002020
Brand Motogadget
Country Of Manufacture Germany
Product Specifications

Accessory Type: Aftermarket Branded

Custom Bundle: No

Universal Fitment: 1

Modified Item: No

Type: Indicators

Non-Domestic Product: No
