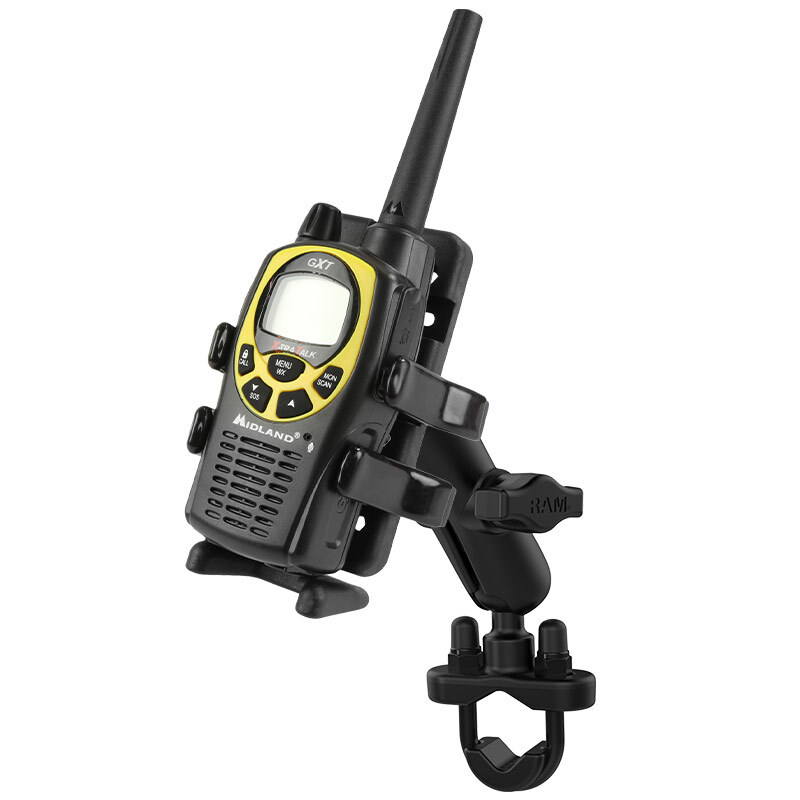

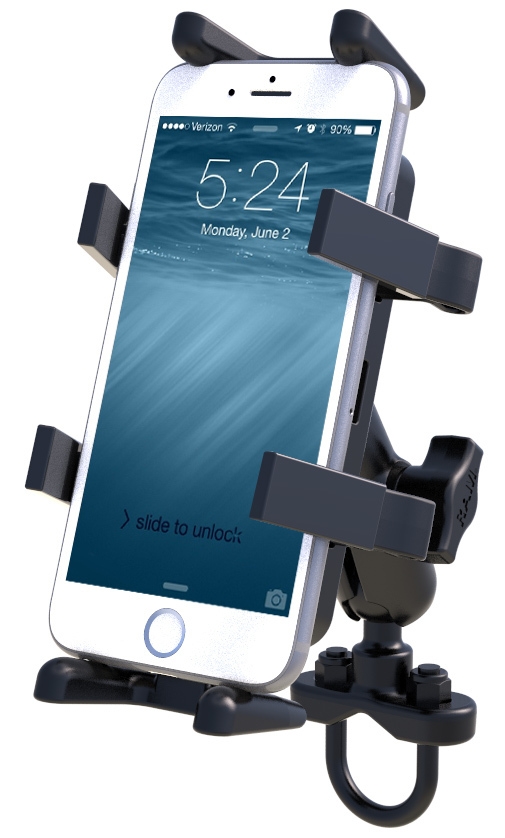

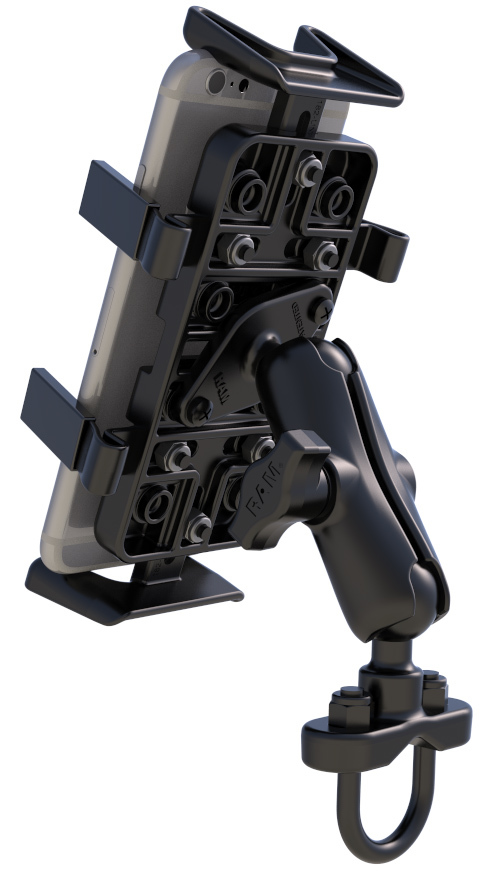

This product will let you attach a phone, radio or GPS unit to any bar that is between 0.5" and 1.25" (1.27cm and 3.17cm) in diameter (eg. handlebars). It includes a zinc-coated bar mount, adjustable socket arm, and a universal "finger grip" holder.

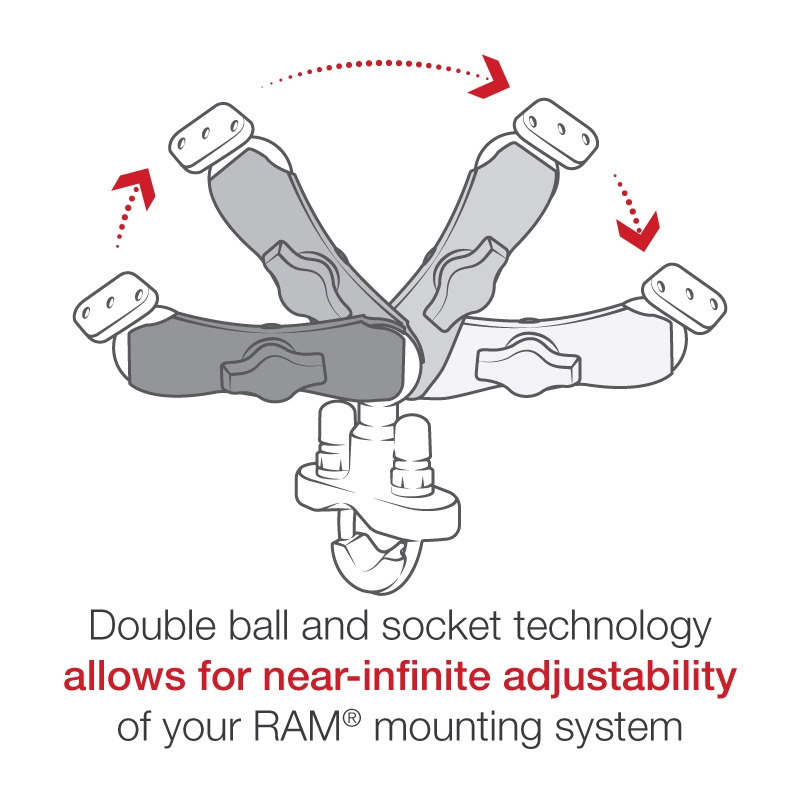

The adjustable socket used the RAM 1" ball size and can be adjusted at both ends, allowing for an infinite amount of viewing angles. The rubber ball design also dampens vibrations, for better viewing and extending the life of your device.

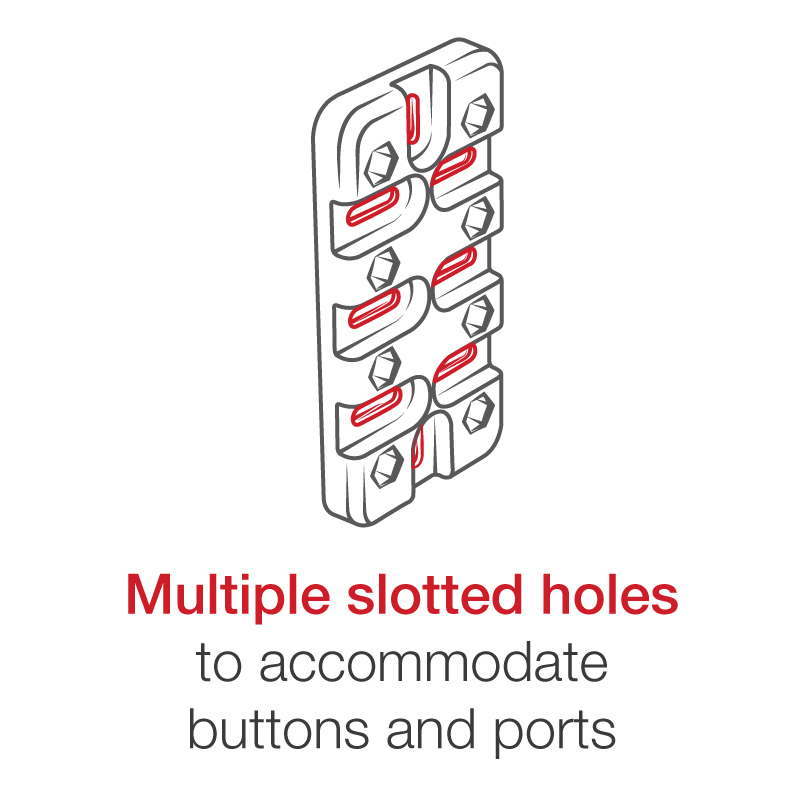

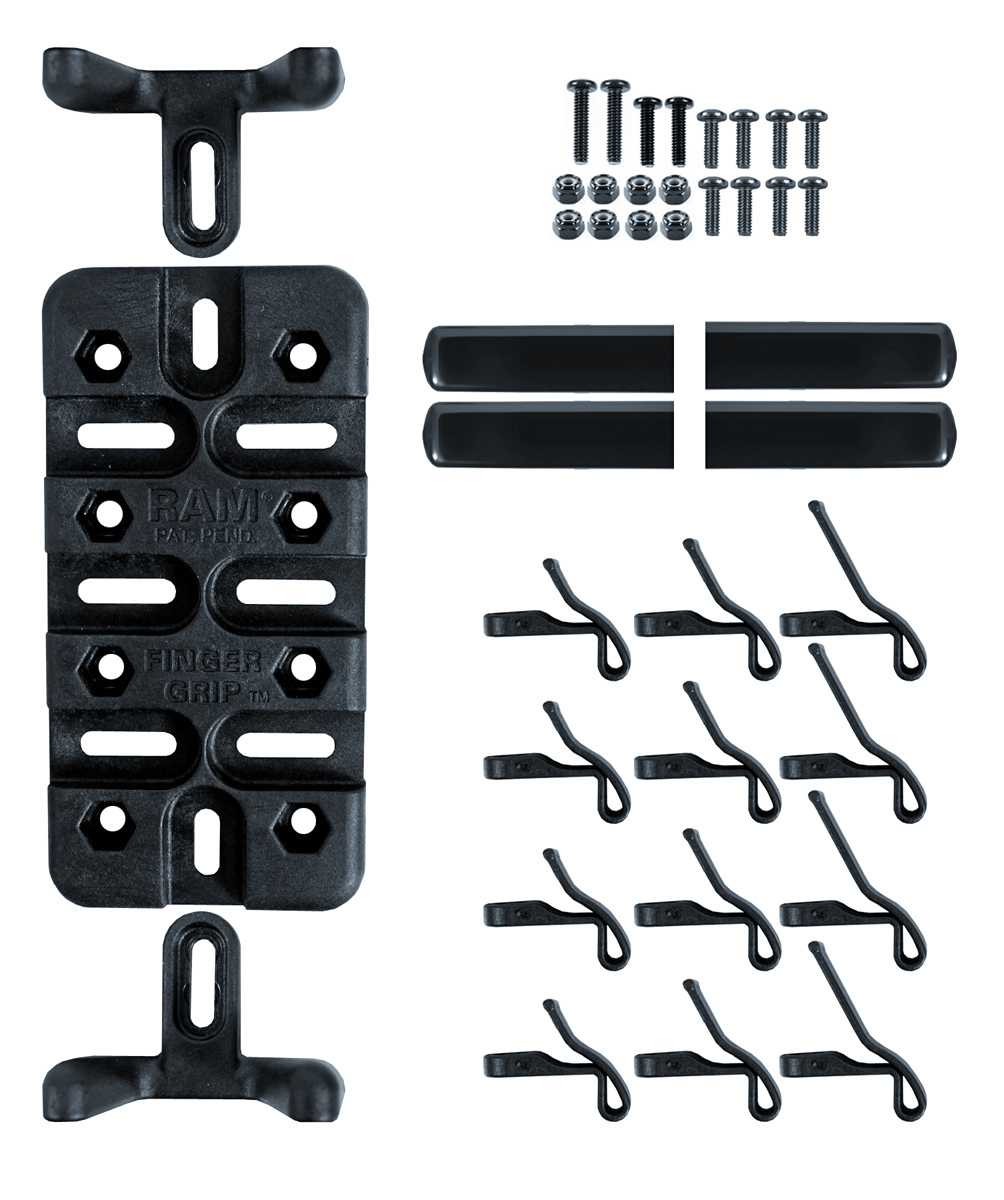

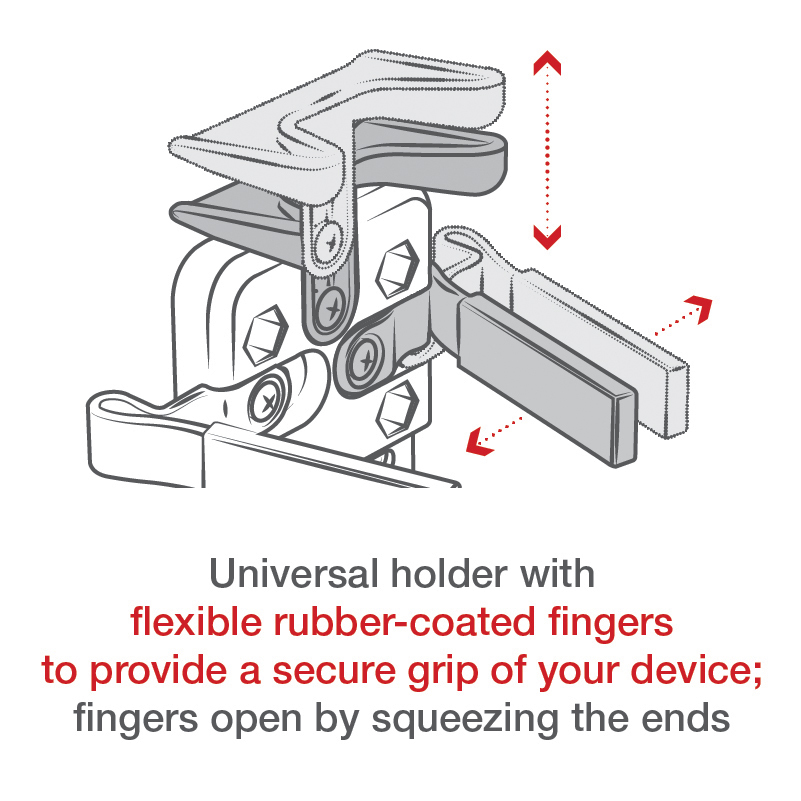

The univerasl finger grip holder is designed to hold a large range of different phones, radios, and GPS units. It comes with three sets of four flexible rubber coated fingers which are placed along the sides to grip your device. The fingers open by squeezing the ends to open the small finger arms, and the bottom of the holder has a back plate that supports the device even further. The spine plate has the universal AMPs and 1.5" a 2" hole patterns on the back.

Height Dimensions:
Minimum with Top and Bottom Plates: 5.25" (13.33cm)
Maximum with Top and Bottom Plates: 6.0" (15.24cm)
The top and bottom plates can be removed for larger devices.

Spine Plate Dimensions:
3" Width x 3" Height (7.62cm)

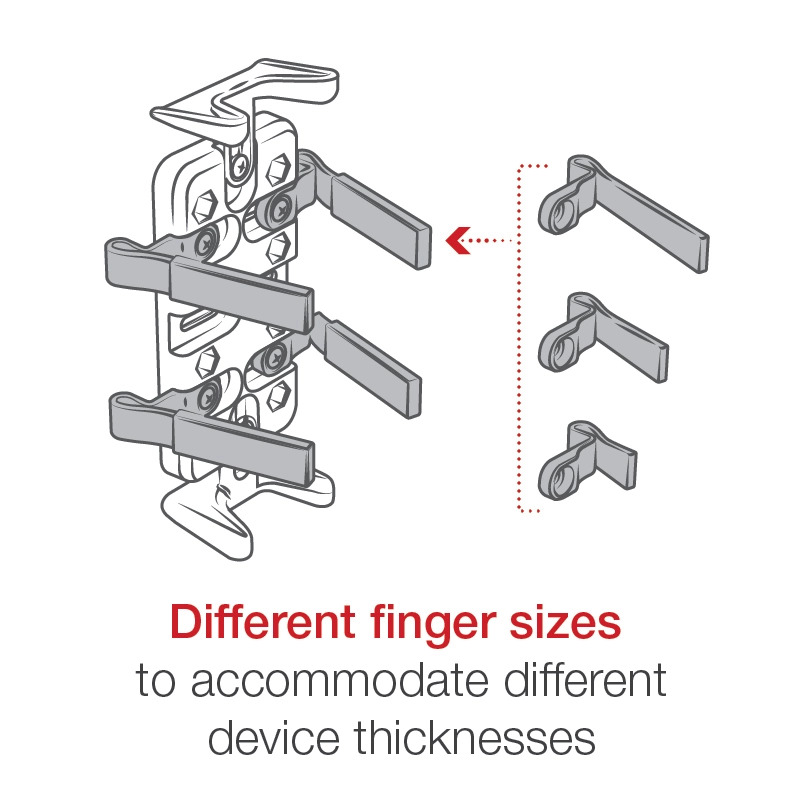

Using Short Arm Side Clamps:
Maximum Depth: 0.75" (1.90cm)
Minimum Width: 1.25" (3.17cm)
Maximum Width: 3.0" (7.62cm)

Using Medium Arm Side Clamps:
Maximum Depth: 1.25" (3.17cm)
Minimum Width: 1.5" (3.81cm)
Maximum Width: 3.5" (8.89cm)

Using Long Arm Side Clamps:
Maximum Depth: 1.6" (4.06cm)
Minimum Width: 2.25" (5.71cm)
Maximum Width: 3.5" (8.89cm)

Features:

  • Material: High Strength Composite and Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size
  • Made in the USA and comes with a lifetime warranty
  • Weight: 472 grams

Note: The "U" in the part number reflects product packaged in poly bag.

Installation Instructions (PDF)

Demonstration Video

Demonstration Video

SKU RAM-B-149Z-UN4U
Barcode # 793442905582
Brand RAM Mounts
Country Of Manufacture United States

Lifetime warranty

Works good

By: on 7 December 2017
The Ram mount works good,quick and easy to set up with lots of options to mount it in different places.
(4)

Totally worth it!

By: on 14 December 2015

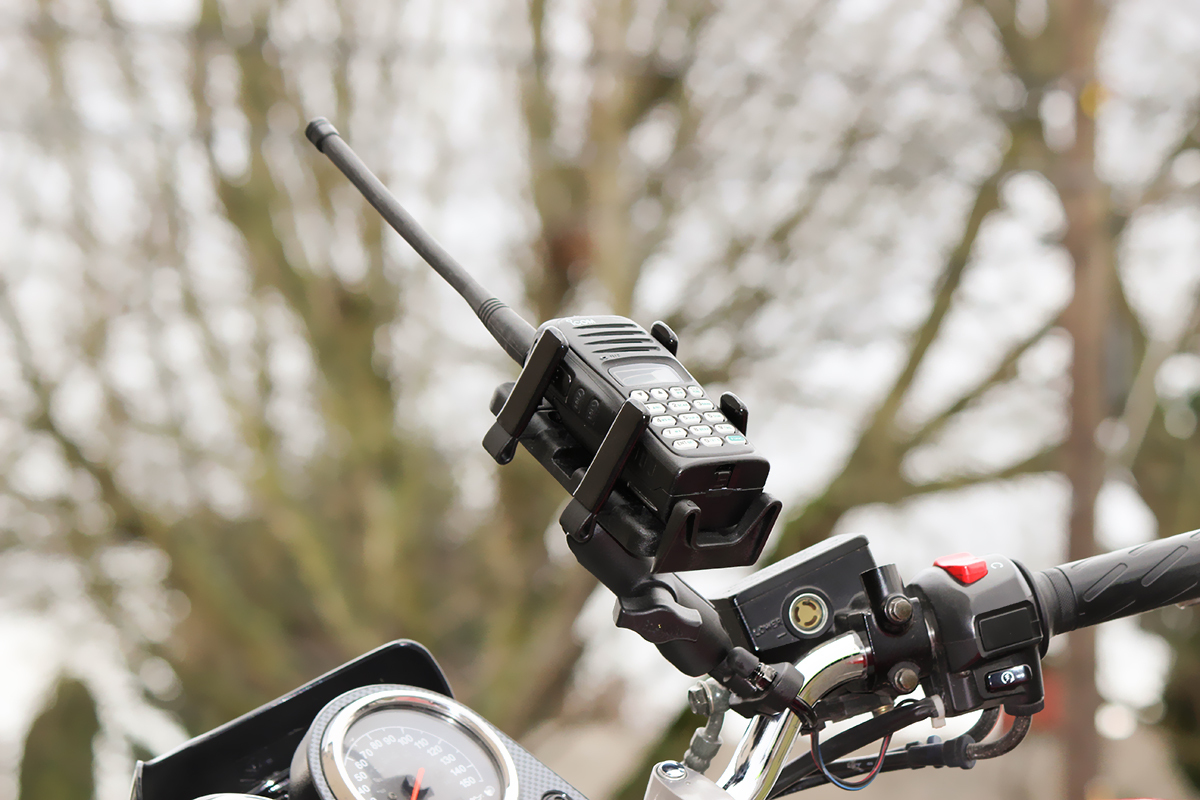

Great product, I mounted it on my Adventure touring motorcycle. Securely holds my GPS when off-road and also use it for my iPhone 6 Plus on roads and light trails.
(5)

Great quality

19 January 2015
Finally found exactly what I wanted. Great quality and a perfect fit for my GME hand held radio.
(5)
